Galvanized Expanded Metal Mesh Diamond Opening 1.188x2.5 Inch

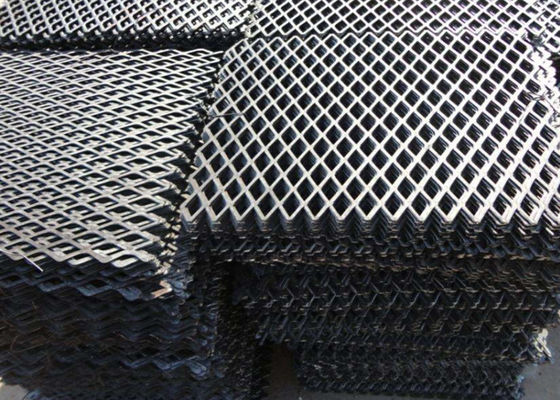

Large Image : Galvanized Expanded Metal Mesh Diamond Opening 1.188x2.5 Inch

Product Details:

Place of Origin:	Hebei,China
Brand Name:	YuanHai
Certification:	ISO9001:2008
Model Number:	YH-06

Payment & Shipping Terms:

Minimum Order Quantity:	100 Square Meters
Price:	US$4~20
Packaging Details:	palletized or loose load in the container
Delivery Time:	3-7 days
Payment Terms:	T/T
Supply Ability:	100000 Square Meters per Week

Contact Now

Detailed Product Description

Product Name:	Expanded Metal Wire Mesh	Key Word:	Expanded Metal Sheet
Product Kind:	In Sheet Or In Roll	Sheet Size:	1mx2m, 4'x8' Or 4'x10' Or Customized
Strand Thickness:	0.04" To 0.5" (1.02mm To 12.7mm)	Diamond Opening:	1.188" × 2.5"
Mesh Size:	1/4" To 1-1/2" (6.35mm To 38.1mm)	Lwm:	12.5-200mm
Panel Width:	1m,1.5m,1.8m,2m,2.2m,2.5m Etc	Mesh Shape:	Diamond
Surface:	Power Coated,galvanized And So On	Application:	Fencing, Grating, Walkways, Security Screens, Etc.
Highlight:	galvanized expanded metal mesh , diamond opening wire mesh , 1.188x2.5 inch metal mesh

Galvanized Expanded Metal Wire Mesh For Building Materials Plain Weave Welded

Product Specifications

Attribute	Value
Product Name	Expanded Metal Wire Mesh

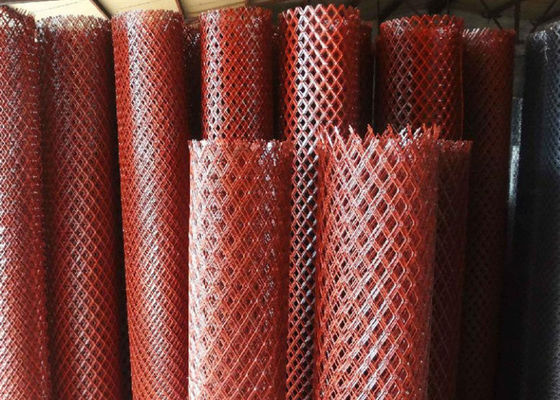

Product Kind	In Sheet Or In Roll
Sheet Size	1mx2m, 4'x8' or 4'x10' or customized
Strand Thickness	0.04" to 0.5" (1.02mm to 12.7mm)
Diamond Opening	1.188" × 2.5"
Mesh Size	1/4" to 1-1/2" (6.35mm to 38.1mm)
LWM	12.5-200mm
Panel Width	1m,1.5m,1.8m,2m,2.2m,2.5m Etc
Mesh Shape	Diamond
Surface	Power coated, galvanized and so on
Application	Fencing, Grating, Walkways, Security Screens, etc.

Product Description

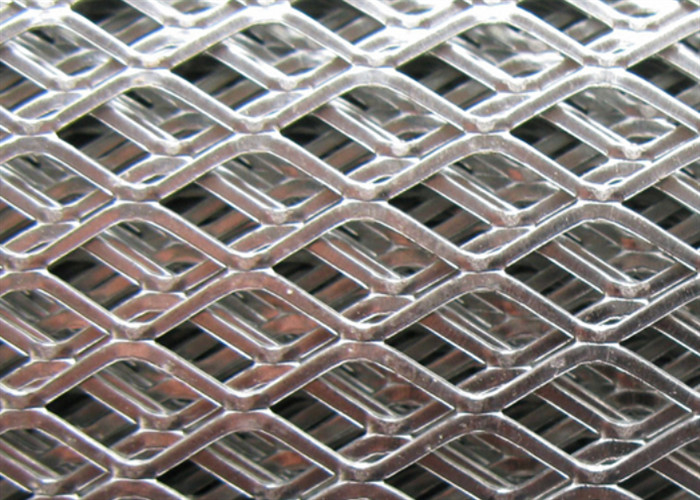

Our expanded metal mesh is available in raised or flattened patterns with various opening sizes, materials, sheet sizes and gauges. We offer expanded metal mesh in materials including carbon steel, galvanized steel, stainless steel, and aluminum.

The metal sheet is precisely slit and stretched to create uniform openings with regular gaps in different shapes including diamond, round, square, and hexagonal. These openings allow for optimal flow of light, liquids, and air while the strands and bonds provide exceptional strength and rigidity, making our expanded metal mesh a versatile solution for numerous applications.

Detailed Specifications

Thickness (mm)	SWD (mm)	LWD (mm)	Wire Stems Width (mm)	Width & Length
0.5	2.5	4.5	0.5	Width: 0.5m-2.0m Length: 30m, 50m Other sizes available upon request
0.5	10	25	0.5
0.6	10	25	1
0.8	10	25	1
1	10	25	1.1
1	15	40	1.5
1.2	10	25	1.1
1.2	15	40	1.5
1.5	15	40	1.5
1.5	23	60	2.6
2	18	50	2.1
2	22	60	2.6
3	40	80	3.8
4	50	100	4
4.5	50	100	5
5	50	100	5
6	50	100	6

Applications

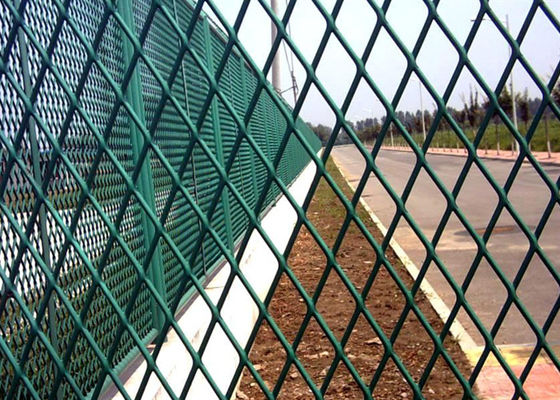

Expanded metal mesh is widely used in railway, road, and civil building construction, as well as water conservancy projects. It serves excellently for outer wall decoration and in the chemical industry, functioning as window screens, filters, and more.

Key Features

Extremely versatile for multiple applications
Economical and durable construction
Easy to install and work with
Can be easily cut to fit specific requirements
Allows free passage of air, light, heat, and sound
Available in multiple materials including mild steel, stainless steel, galvanized steel, and aluminum

Packaging Options

Our expanded metal mesh is available palletized or as loose load in containers to suit your shipping and handling requirements.
