Stainless Steel 304 316 Metal Random Packing Low Pressure Drop

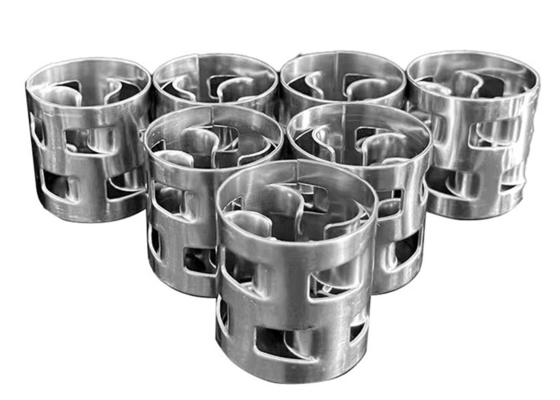

Large Image : Stainless Steel 304 316 Metal Random Packing Low Pressure Drop

Product Details:

Brand Name:	Yuanhai
Certification:	ISO9001:2015
Model Number:	YH-04

Payment & Shipping Terms:

Minimum Order Quantity:	1 M³
Price:	$220-1500
Packaging Details:	By Wooden Box
Delivery Time:	7 Days
Payment Terms:	T/T
Supply Ability:	800 Cubic Meter/Cubic Meters Per Month

Contact Now

Detailed Product Description

Product Name:	Metal Random Packing	Key Word:	Tower Packing /Random Packing
Hs Code:	8419909000	Feature:	Low Pressure Drop, High Efficiency
Material:	Stainless Steel 304 / 316	Port Of Loading:	Xingang Port
Size:	Customized	Void Fraction:	High
Oem:	Yes	Certification:	ISO9001:2015
Highlight:	Stainless Steel 304 metal random packing , 316 stainless steel low pressure drop packing , metal random packing with low pressure drop

Low Pressure Drop Rasching / Pall Ring Packing OEM For Rectifying Column

Product Specifications

Attribute	Value
Product Name	Metal Random Packing
Key Word	Tower Packing / Random Packing
HS Code	8419909000
Feature	Low Pressure Drop, High Efficiency
Material	Stainless Steel 304 / 316
Port Of Loading	Xingang Port
Size	Customized
Void Fraction	High
OEM	Yes
Certification	ISO9001:2015

Product Description

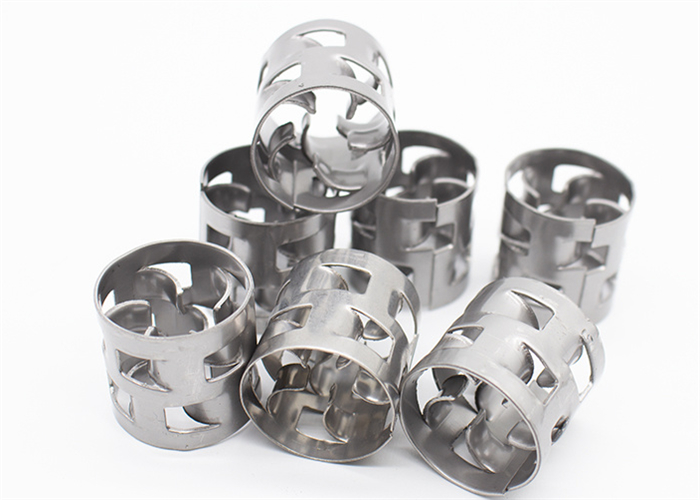

The Metal Pall ring is a highly efficient packing material designed for vacuum distillation processes. Its optimal surface area and void space configuration ensure superior heat transfer performance during operations.

This versatile packing solution is also widely used in:

Wet scrubbers for enhanced gas absorption efficiency
Cooling towers for uniform water distribution and effective heat transfer
Mist eliminators for removing liquid particles from gas streams
Gas absorption columns, gas strippers, and air washers

Key Features

Customizable sizes to meet specific application requirements
Low pressure drop design for energy efficiency
High void fraction for optimal performance
Heat-resistant construction for demanding environments
Available in stainless steel 304/316 materials
ISO9001:2015 certified manufacturing

Technical Parameters

Size (mm)	Bulk Density (kg/m³)	Number (per m³)	Surface Area (m²/m³)	Free Volume (%)
16×16×0.3	360	201000	346	95.5
25×25×0.4	302	51000	212	96.2
25×25×0.5	400	51000	216	95
25×25×0.6	461	51000	219	94.2
38×38×0.4	218	15000	143	97.2
38×38×0.5	262	15180	145	96.7
38×38×0.6	328	15000	146	95.9
50×50×0.5	194	6500	106	97.5
50×50×0.8	315	6500	108	96.4
50×50×0.9	365	6500	109	95.4
76×76×0.8	205	1830	69	97.4
90×90×1.0	229	1160	62	97.1

Applications

Absorption, scrubbing, and stripping services including CO₂ and H₂S selective absorption
Air pollution control scrubbers
Heat transfer applications
Liquid-liquid extraction processes
Light ends fractionators

Frequently Asked Questions

What is the brand name of the metal random packing product?

The brand name is Yuanhai.

What is the model number of the metal random packing?

The model number is YH-04.

Where is the metal random packing manufactured?

The metal random packing is manufactured in Hebei Province, China.

What certification does the metal random packing product have?

The product is certified with ISO9001:2015.

What is the minimum order quantity for the metal random packing?

The minimum order quantity is 1 M³.
