Stainless Steel 304/316 Metal Pall Ring for Distillation Columns

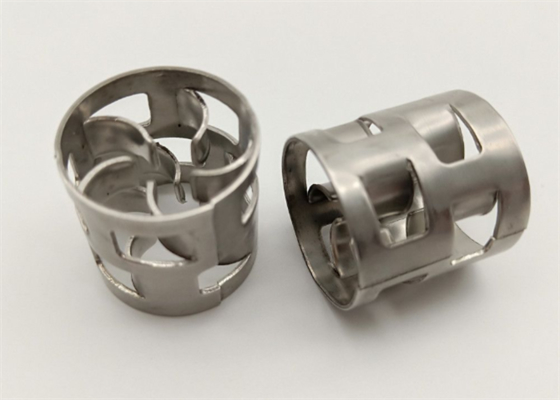

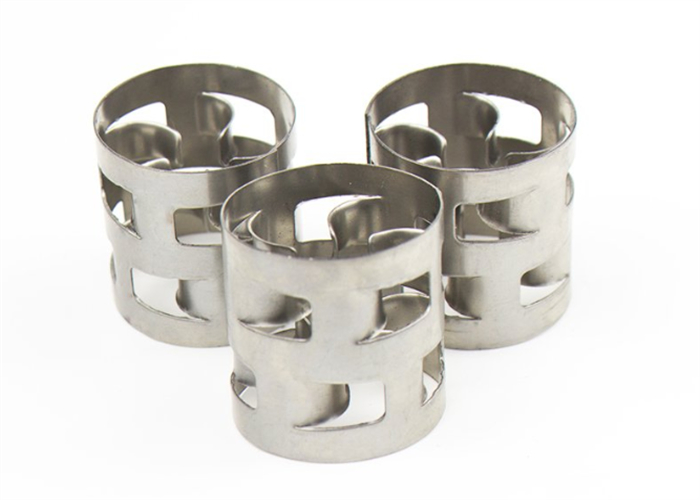

Large Image : Stainless Steel 304/316 Metal Pall Ring for Distillation Columns

Product Details:

Brand Name:	Yuanhai
Certification:	ISO9001:2015
Model Number:	YH-04

Payment & Shipping Terms:

Minimum Order Quantity:	1 M³
Price:	$310-2000
Packaging Details:	By Wooden Box
Delivery Time:	7 Days
Payment Terms:	T/T
Supply Ability:	800 Cubic Meter/Cubic Meters Per Month

Contact Now

Detailed Product Description

Product Name:	Metal Tower Packing	Key Word:	Random Packing
Material:	Stainless Steel 304 / 316	Hs Code:	8419909000
Feature:	Low Pressure Drop, High Efficiency	Void Fraction:	High
Performance:	Heat-resistant	Pressure Drop:	Low
Port Of Loading:	Xingang Port	Size:	Customized
Highlight:	Stainless Steel 304 metal pall ring , 316 stainless steel distillation packing , metal random packing with warranty

Mass Transfer 25mm Metal Pall Ring For Precision Distillation Columns

Product Attributes

Attribute	Value
Product Name	Metal Tower Packing
Key Word	Random Packing
Material	Stainless Steel 304 / 316
Hs Code	8419909000
Feature	Low Pressure Drop, High Efficiency
Void Fraction	High
Performance	Heat-resistant
Pressure Drop	Low
Port Of Loading	Xingang Port
Size	Customized

Product Description

The Metal Pall ring is a highly efficient packing material designed for vacuum distillation processes, offering optimal surface area and void space for superior heat transfer. These rings are also widely used in various industrial applications including wet scrubbers for gas absorption, cooling towers, mist eliminators, gas absorption columns, gas strippers, and air washers.

Key Features

Low pressure drop reduces energy consumption
High flexibility with minimal scale effect
High capacity with low specific gravity and excellent mass transfer efficiency
Customizable to meet specific packing requirements
Short delivery time

Technical Parameters

Parameter	Value
OEM	Yes
Hs Code	8419909000
Size	Customized
Material	Stainless Steel 304 / 316
Performance	Heat-resistant
Port Of Loading	Xingang Port
Pressure Drop	Low
Feature	Low Pressure Drop, High Efficiency
Key Word	Tower Packing / Random Packing
Void Fraction	High

Model Specifications

Model	Size DHδ/mm	No. Per Volume n/m3	Specific Area m2/m3	Void Volume %	Drying Packing Factor m-1
Dg16	16X16X0.4	185000	239	0.928	299
Dg25	25X25X0.6	51900	219	0.934	269
Dg38	38X38X0.8	13800	129	0.945	153
Dg50	50X50X1.0	6500	112.3	0.949	131
Dg76	76X76X1.2	1830	71	0.96	80

Applications

Absorption, scrubbing, and stripping services (CO2 and H2S selective absorption, air pollution control scrubbers)
Heat transfer systems
Liquid-liquid extraction processes
Light ends fractionators

Frequently Asked Questions

Q: What is the brand name of the Metal Random Packing product?

A: The brand name is Yuanhai.

Q: What is the model number of the Metal Random Packing product?

A: The model number is YH-04.

Q: Where is the Metal Random Packing product manufactured?

A: The product is manufactured in Hebei Province, China.

Q: What certification does the Metal Random Packing product have?

A: The product is certified with ISO9001:2015.

Q: What is the minimum order quantity for the Metal Random Packing product?

A: The minimum order quantity is 1 m³.
