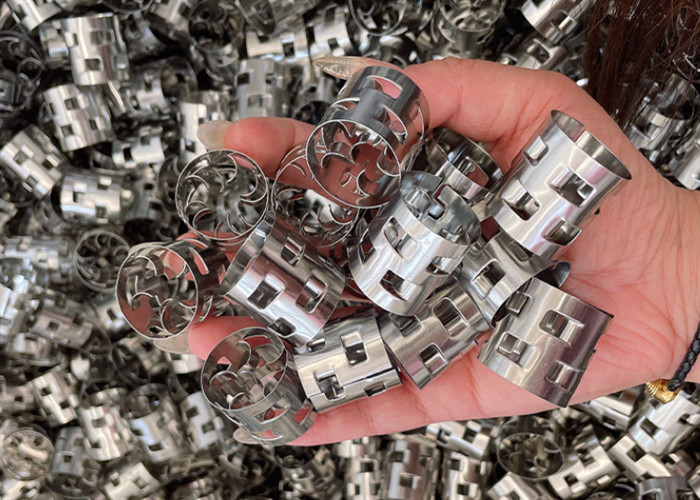

Stainless Steel 316 Metal Pall Ring Random Packing for Gas Scrubbing

Large Image : Stainless Steel 316 Metal Pall Ring Random Packing for Gas Scrubbing

Product Details:

Brand Name:	Yuanhai
Certification:	ISO9001:2015
Model Number:	YH-04

Payment & Shipping Terms:

Minimum Order Quantity:	1 M³
Price:	$400-2000 / m³
Packaging Details:	By Wooden Box
Delivery Time:	7 Days
Payment Terms:	T/T
Supply Ability:	800 Cubic Meter/Cubic Meters Per Month

Contact Now

Detailed Product Description

Product Name:	Metal Pall Ring / Random Packing	Key Word:	Random Packing
Material:	Stainless Steel 304 / 316	Size:	16,25,38,50,76mm Or Customized
Void Fraction:	High	Oem:	Yes
Performance:	Heat-resistant	Pressure Drop:	Low
Feature:	Low Pressure Drop, High Efficiency	Port Of Loading:	Xingang Port
Highlight:	Stainless Steel 316 Pall Rings , Metal random packing for gas scrubbing , 316 stainless steel Pall Ring packing

Stainless Steel 316 Metal Pall Ring Random Packing for Gas Scrubbing

Product Specifications

Attribute	Value
Product Name	Metal Pall Ring / Random Packing
Material	Stainless Steel 304 / 316
Size	16,25,38,50,76mm or Customized
Void Fraction	High
Performance	Heat-resistant
Pressure Drop	Low
Feature	Low Pressure Drop, High Efficiency
Port Of Loading	Xingang Port

Product Description

The Metal Pall Ring is a highly efficient packing material designed for vacuum distillation processes, offering optimal surface area and void space for superior heat transfer. This versatile packing solution is also ideal for various industrial applications including gas absorption, cooling systems, and air purification.

Key Features

Bulk packing solution for gas-liquid separation
High void fraction with low pressure drop
Heat-resistant stainless steel construction (304/316)
Reduces energy consumption through efficient design
High capacity with excellent mass transfer efficiency
Available in standard sizes or customized configurations
Short lead times for prompt delivery

Technical Parameters

Size (inch/mm)	Bulk Density (SS304 kg/m3)	Number (per m3)	Surface Area (m2/m3)	Free Volume (%)	Dry packing factor m-1
1" (25×25×0.4)	288	53500	212	96.2	229.8
1" (25×25×0.5)	367	53500	216	95	237.2
1" (25×25×0.6)	439	53500	219	94.2	244.1
1.5" (38×38×0.4)	193	15180	143	97.2	148.4
1.5" (38×38×0.5)	246	15180	145	96.7	151.7
1.5" (38×38×0.6)	328	15000	146	95.9	154.6
2" (50×50×0.5)	185	6500	106	97.5	128.5
2" (50×50×0.7)	315	6500	108	96.4	130.5
2" (50×50×0.9)	380	6500	132.5	95.4	134.0
3" (76×76×0.8)	265	1920	69	97.4	79.6

Industrial Applications

Vacuum distillation columns
Wet scrubbers for gas absorption
Cooling tower systems
Mist elimination processes
Gas absorption and stripping columns
CO2 and H2S selective absorption
Air pollution control systems
Liquid-liquid extraction processes
Light ends fractionators

Frequently Asked Questions

What is the brand name of the metal random packing product?

The brand name is Yuanhai.

What is the model number of the metal random packing product?

The model number is YH-04.

Where is the metal random packing product manufactured?

The product is manufactured in Hebei Province, China.

What certification does the metal random packing product have?

The product is certified with ISO9001:2015.

What is the minimum order quantity for the metal random packing product?

The minimum order quantity is 1 M³.
