SS304 SS316L Metal Pall Ring Random Packing for Chemical Towers

Large Image : SS304 SS316L Metal Pall Ring Random Packing for Chemical Towers

Product Details:

Place of Origin:	Hebei Province,China
Brand Name:	Yuanhai
Certification:	ISO9001:2015
Model Number:	YH-04

Payment & Shipping Terms:

Minimum Order Quantity:	1 m³
Price:	USD280-1500/Cubic Meter
Packaging Details:	By Wooden Box
Delivery Time:	7 days
Payment Terms:	T/T
Supply Ability:	800 Cubic Meter/Cubic Meters per Month

Contact Now

Detailed Product Description

Product Name:	Metal Tower Packing	Key Words:	Random Packing
Materials:	SS304,SS316L,Ti, With All Kinds In Need	Diameter:	16,25,38,50,76mm
Production Period:	40HQ/15 Days	Void Fraction:	High Void Fraction
Port Of Loading:	Xingang Port	Certification:	ISO9001:2015
Packing Details:	Plastic Woven Bag With Pallets, Composite Material Box, Wood Box Or On Customer Requests	Description:	Mass Transfer And Separation
Highlight:	SS304 metal pall ring packing , SS316L chemical tower packing , metal random packing for towers

SS304/316 Metal Pall Ring Random Packing for Chemical Towers

Product Overview

Metal tower packing is manufactured from materials including carbon steel, stainless steel, and aluminum alloy. Featuring thin walls, heat resistance, high free volume, and superior separation efficiency, these components are ideal for vacuum rectification towers handling thermo-sensitive, decomposable, polymerizable, or cokable systems. Widely used in petrochemical, fertilizer, and environmental protection industries.

Key Attributes

Product Name

Metal Tower Packing

Materials

SS304, SS316L, Titanium, and custom materials

Available Diameters

16mm, 25mm, 38mm, 50mm, 76mm

Production Period

40HQ/15 Days

Certification

ISO9001:2015

Packing Options

Plastic woven bags with pallets, composite material boxes, wood boxes, or custom packaging

Product Features

High resistance to fouling with multiple material options
Excellent performance in high temperature applications
Mechanically robust construction with low breakage probability
Superior liquid/gas distribution characteristics
High mass transfer efficiency with low pressure drop
High void fraction for optimal flow characteristics

Technical Specifications

Size (inch/mm)	Bulk Density (SS304 kg/m³)	Quantity (per m³)	Surface Area (m²/m³)	Free Volume (%)	Dry Packing Factor (m⁻¹)
1" (25×25×0.4)	288	53,500	212	96.2	229.8
1" (25×25×0.5)	367	53,500	216	95	237.2
1" (25×25×0.6)	439	53,500	219	94.2	244.1
1.5" (38×38×0.4)	193	15,180	143	97.2	148.4
1.5" (38×38×0.5)	246	15,180	145	96.7	151.7
1.5" (38×38×0.6)	328	15,000	146	95.9	154.6

Industrial Applications

Metal Pall rings are extensively used in:

Vacuum distillation and heat transfer systems
Wet scrubbers for gas absorption and emission control
Cooling towers in power generation and petrochemical plants
Mist eliminators for clean air requirements
Gas absorption columns and strippers
Air washers for pollution control

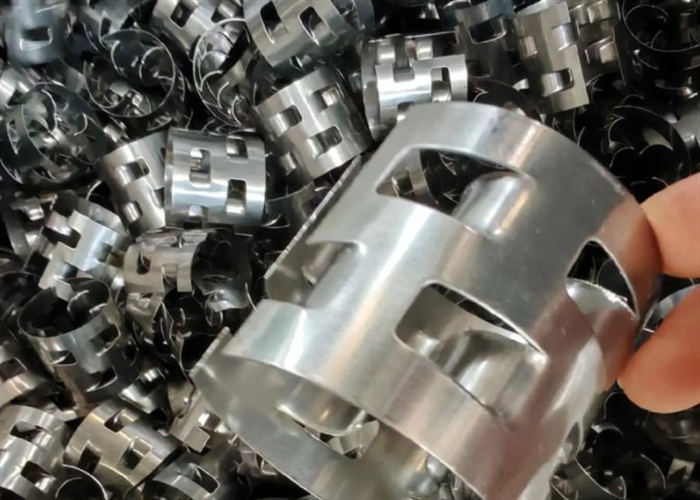

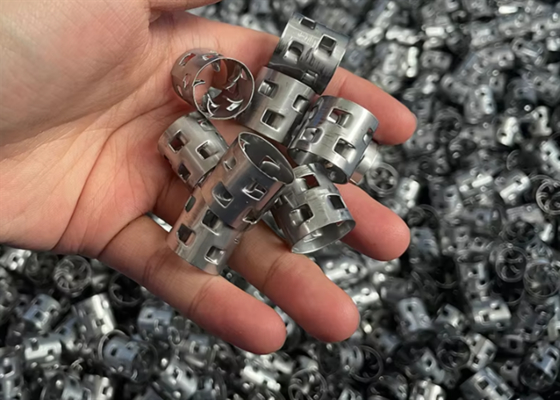

Product Images

Customization Options

Our metal random packing can be customized for specific applications including random tower packing, gas scrubbing systems, and specialized saddle ring configurations. Contact us to discuss your project requirements.

Frequently Asked Questions

Q1. What is the brand name of the metal random packing?

A1. The brand name is Yuanhai.

Q2. What is the model number?

A2. The model number is YH-04.

Q3. Where is the product manufactured?

A3. Manufactured in Hebei Province, China.

Q4. What certifications does the product have?

A4. ISO9001:2015 certified.

Q5. What is the minimum order quantity?

A5. Minimum order is 1 m³.
