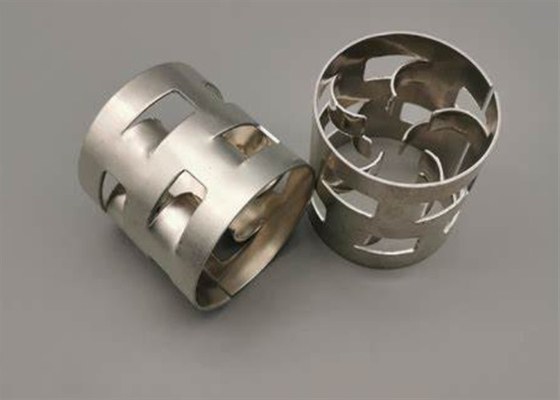

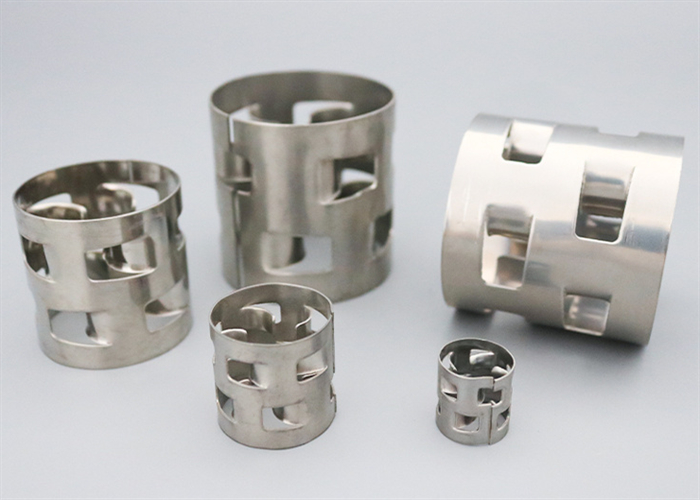

Stainless Steel Metal Pall Ring 50mm for Industrial Filtration

Large Image : Stainless Steel Metal Pall Ring 50mm for Industrial Filtration

Product Details:

Place of Origin:	Hebei,China
Brand Name:	YuanHai
Certification:	ISO 9001
Model Number:	YH-08

Payment & Shipping Terms:

Minimum Order Quantity:	1 Cubic Meter
Price:	USD280-1500/Cubic Meter
Packaging Details:	wooden case or customized
Delivery Time:	3-7days
Payment Terms:	T/T
Supply Ability:	10000 Cubic Meter/Cubic Meters per Month

Contact Now

Detailed Product Description

Product Name:	Stainless Steel Metal Pall Ring	Key Word:	Metal Pall Ring
Material:	Metal, Stainless Steel, Carbon Steel, Aluminum Alloy Etc.	Size:	16mm,25mm,38mm,50mm, 76mm,or Customized
Application:	Industry, Adsorption, Scrubbing, Stripping	Package:	Jumbo Bag / Wooden Box
Surface Area:	62 - 346 M2/m3	Bulk Density:	145 - 345 Kg/m3
Feature:	Corrosion And Heat Resistance	Certification:	ISO9001:2015
Shape:	Cylindrical With Punched Holes On Its Walls	Production Period:	40HQ/15 Days
MOQ:	1 Cubic	Purity:	99.8%+
Highlight:	Stainless Steel Pall Ring 50mm , Industrial Filtration Metal Pall Ring , Metal Random Packing with Warranty

Stainless Steel 50*50*1.0mm Metal Random Packing Pall Ring For Filtration

Product Specifications

Attribute	Value
Product Name	Stainless Steel Metal Pall Ring
Material	Metal, Stainless Steel, Carbon Steel, Aluminum Alloy
Size	16mm, 25mm, 38mm, 50mm, 76mm, or Customized
Application	Industry, Adsorption, Scrubbing, Stripping
Surface Area	62 - 346 m²/m³
Bulk Density	145 - 345 kg/m³
Feature	Corrosion and Heat Resistance
Certification	ISO9001:2015
Shape	Cylindrical with Punched Holes on Walls
MOQ	1 Cubic
Purity	99.8%+

Product Description

The metal pall ring packing was developed in the 1940s by BASF and is made of sheet metal with openings covering about 35% of the total ring wall area. Compared to traditional raschig rings, the pall ring's design with multiple holes allows gas and liquid to flow freely through the packing layer, significantly improving distribution and separation performance.

Technical Specifications

Model	Material	Sizes (mm)	Bulk Density (kg/m³)	Surface Area (m²/m³)	Free Volume (%)
Pall Ring	Carbon Steel, SS 304, 304L, 316, 316L, etc.	16×16×0.3	345	346	95.5
Pall Ring	Carbon Steel, SS 304, 304L, 316, 316L, etc.	25×25×0.3	214	212	96.2
Pall Ring	Carbon Steel, SS 304, 304L, 316, 316L, etc.	38×38×0.4	193	145	96.7
Pall Ring	Carbon Steel, SS 304, 304L, 316, 316L, etc.	50×50×0.5	182	106	97.5
Pall Ring	Carbon Steel, SS 304, 304L, 316, 316L, etc.	76×76×0.6	142	69	97.4

Key Advantages

High capacity with low pressure drop
Excellent gas/liquid distribution
High mass transfer efficiency
Versatile for various applications
High resistance to fouling
Reduced probability of breakage
Ideal for deeper beds

Product Features

1. High Mechanical Strength & Mechanically Robust

Manufactured from durable materials with strategic window and strut design, providing exceptional strength while remaining lightweight. Resistant to crushing in packed beds and during handling.

2. High Capacity with Low Pressure Drop

Open window design eliminates wall flow effect, allowing higher flow rates with lower energy consumption compared to traditional packings.

3. Excellent Distribution & Mass Transfer Efficiency

Tongues on ring walls deflect and spread liquid while windows redistribute gas flow, creating optimal interfacial contact for superior mass transfer.

4. High Resistance to Fouling

Open structure prevents solids buildup and allows passage of polymeric materials, extending operational run times between maintenance.

5. High Temperature Endurance

Available in materials suitable for extreme temperature applications, including ceramic for high-heat corrosive services and metal alloys for petrochemical processing.
