W Pale Security Galvanized Steel Palisade Fence Wrought Iron 1.8m Garden

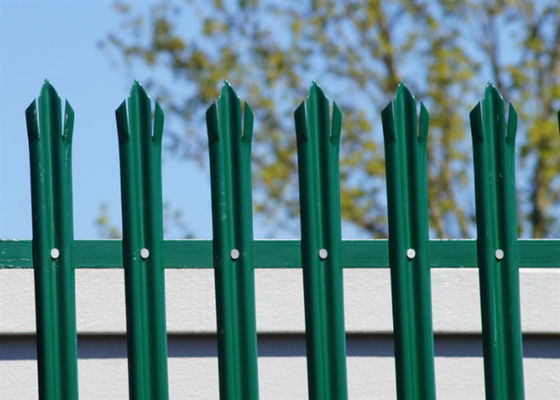

Large Image : W Pale Security Galvanized Steel Palisade Fence Wrought Iron 1.8m Garden

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-PF

Payment & Shipping Terms:

Minimum Order Quantity:	10Sets
Price:	$5.5-13.6/㎡
Packaging Details:	Powder Coated Frame Finishing And Fencing Trellis & Gates Type Palisade Fence Water Proof Paper+Pallet.Custom Packaging Is Also Available According To Your Details
Delivery Time:	5-8 work days
Payment Terms:	T/T,L/C
Supply Ability:	5000Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Steel Palisade Fencing	Key Work:	Spear Top Steel Fence Panel
Rail:	50x50mm	Suggested Pale Thickness:	2-6mm
Height Above Ground:	4.2m	Picket Top:	Round
Head Stype:	Notched	Hole Size:	φ10mm Hole On The Pale
Application:	Yard Wall	Surface Treatment:	PVC Coated
Pale:	3.0mm	Mesh Shape:	Square
Highlight:	galvanized steel palisade fence , wrought iron garden fence , 1.8m steel palisade fencing

W Pale Security Galvanized Steel Palisade Fence Wrought Iron 1.8m Garden

Steel Palisade Fence Description

Palisade Fencing is the perfect solution to your boundary security fencing. As Palisade Fencing is supplied piece small it is easily adapted to most site conditions.
Security Steel Palisade is supplied in kit form with the flexible design allowing the fence to be erected so that it follows the contours of the ground forming a formidable deterrent against crime and vandalism. The kit form allows for easy installation.
It also comes in several different grades of materials. The thickness of the steel Palisade can be adjusted depending on the height of the fence and the sensitivity of the area the fence is situated in.

Steel Palisade Fence Specifications

Fence panel height	1m-6m
Fence panel width	1m-3m
Pale height	0.5m-6m
Pale width	W pale 65-75mm d pale 65-70mm
Pale thickness	1.5-3.0mm
Angle rail	40mmx40mm 50mmx50mm 63mmx63mm
Angle rail thickness	3mm-6mm
RSJ post	100mmx55mm 100mmx68mm 150mmx75mm
Square post	50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
Square post thickness	1.5mm-4.0mm
Straight fishplates or post clamps	30mmx150mmx7mm 40mmx180mmx7mm
Bolts and nuts	M8XNo.34 for pale fixing M12xNo.4 for rail fixing

W Pale Security Galvanized Steel Palisade Fence Wrought Iron 1.8m Garden 0

W Pale Security Galvanized Steel Palisade Fence Wrought Iron 1.8m Garden 1

Steel Palisade Fence Pales-"W" section

Most useful vertical type of pales for palisade fencing, which is always the customers' first choice for pales.

Width	Thickness	Surface Treatment	Head	Height
68mm-70mm	2.0mm	Galvanized and electrostatic polyester coated or Hot dipped galvanized	Single point Triple point	1200mm-3000mm
	2.5mm
	3.0mm

Steel Palisade Fence Pales-"D" section

Compared with "W" profile pales, "D" profile is more economical.

Width

Thickness

Surface Treatment

Height

2.0mm

Galvanized and electrostatic polyester coated

or Hot dipped galvanized

Single point

Triple point

1200mm-3000mm

2.5mm

3.0mm

Steel Palisade Fence Pale-Angle iron

Its cost is similar with "D" profile, but its structure is simpler than "D" profile.

Width	Thickness	Surface Treatment	Head	Height
40*40	2.0mm 3.0mm	Galvanized and electrostatic polyester coated or Hot dipped galvanized	Single point Triple point	1200mm-3000mm

Steel Palisade Fence Application

Steel fence: All of the fence panels, posts, mounting hardware and gates are dipped in electracoat rust inhibitor after final assembly to prevent corrosion and are then powder coated for a premium finished product. Standard fences are in stock and shipping is more affordable than you think! wrought iron fencing systems will not only beef up the security of your residential or commercial property but will improve the appearance as well.

Palisade fences are used in highways, railways, utilities, commercial and industrial sites, airports, docks, waste recycling centers, schools, sports fields and leisure facilities.

W Pale Security Galvanized Steel Palisade Fence Wrought Iron 1.8m Garden 2

Steel Palisade Fence Packing

W Pale Security Galvanized Steel Palisade Fence Wrought Iron 1.8m Garden 3
