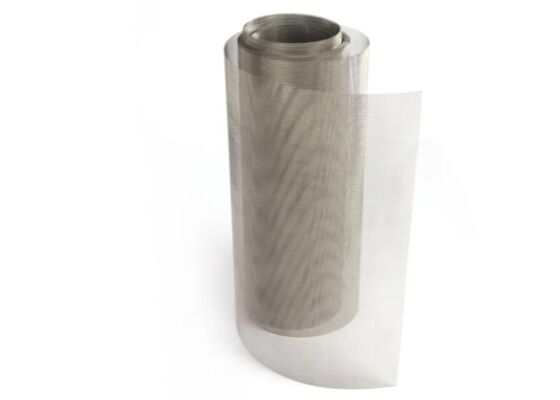

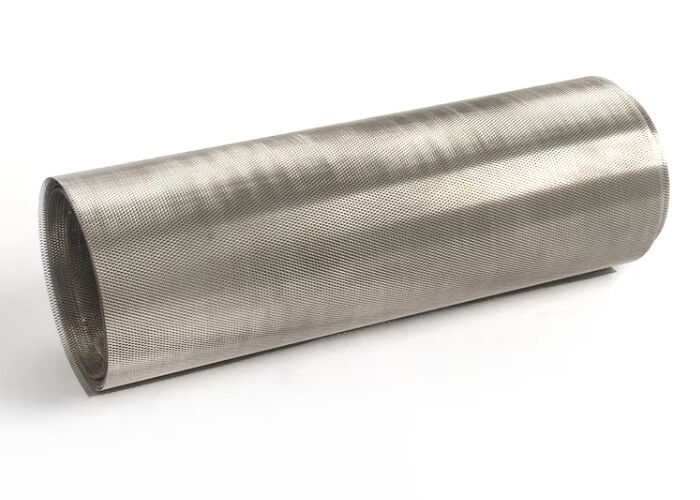

Anode Titanium Mesh 0.5mm Thickness 2X4mm Hole for Electrolytic Cell

Anode Titanium Mesh 0.5mm Thickness 2X4mm Hole for Electrolytic Cell

Description of Expanded Metal Mesh

Titanium Expaned Tensile Mesh main product parameters
Application: electroplating electrode electrolysis hydrogen production, small hydrogen production machine, electrolytic cell
Raw material & Grade: Titanium plate TA1 TA2, mainly Ti Gr.1
Common thickness: 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm
Typical mesh size (long intercept * short intercept) : 12.5*6.5mm, 12.5*4.5mm, 10*5mm, 8*4mm, 6*3mm, 4*2mm, 2*1mm, 1.5*0.8mm, etc. Special mesh can be customized according to requirements.
Common mesh width: 1250mm, 1500mm All can be cut into small pieces of different sizes
Production process: tensile expansion, made of titanium plate or titanium foil by stamping and drawing, mesh hole for diamond hole.
Packing: waterproof paper+wooden box
Titanium plate tensile mesh advantages: acid and alkali resistance, high temperature resistance, long service life, low replacement cost

Specification of Expanded Metal Mesh

Features of Expanded Metal Mesh

Titanium Mesh Anodes are low energy mesh materials to replace conventional cast or cold rolled lead anodes. Fit for new and already established EW operations, the titanium metal substrate with a fully amorphous coating offers a considerable cut down in cell voltage as compared to the standard lead anodes or crystalline coated titanium anodes. Even  it also avoids the precipitation of unwanted contaminants like manganese and lead oxides.
The lead anodes pose a challenge for EW operations in handling and disposing of lead waste. The cells need to be cleaned by operators to eradicate lead sludge accumulation that can be risky to health and safety of an operator. Unlikely, the titanium anodes avoid this need.
Additionally, the titanium anodes do not need to be stabilized by adding cobalt sulfate to the electrolyte. Preventing cobalt from EW process decreases the operation cost and with titanium anodes there is no need to electrically separate the cells that increases the plant availability and productivity.

Applications of of Expanded Metal Mesh

Hydrogen Production: The titanium mesh is commonly used in PEM electrolyzers to facilitate the electrolysis of water, producing high-purity hydrogen. The mesh acts as an electrode support, offering superior surface area for efficient ion exchange.

Energy Storage Systems: It is used in energy storage solutions where electrolysis is employed to store energy in the form of hydrogen, contributing to green energy initiatives and renewable power generation.

Electrochemical Synthesis: Titanium expanded metal mesh plays a critical role in the development of various electrochemical processes, such as metal plating and chlorine production, due to its excellent resistance to aggressive chemicals.

Marine Applications: Its corrosion-resistant properties make it suitable for marine environments, where it can be used in electrolytic cells for desalination and water treatment systems.

Fuel Cells: The mesh is used in fuel cells as a conductive material, enabling efficient hydrogen generation for fuel cell applications.

With its durability and versatility, PEM Electrolytic Cell Titanium Expanded Metal Mesh ensures enhanced operational efficiency and longevity in demanding environments, making it a preferred choice for industries focused on sustainable energy and advanced electro chemical technology.
