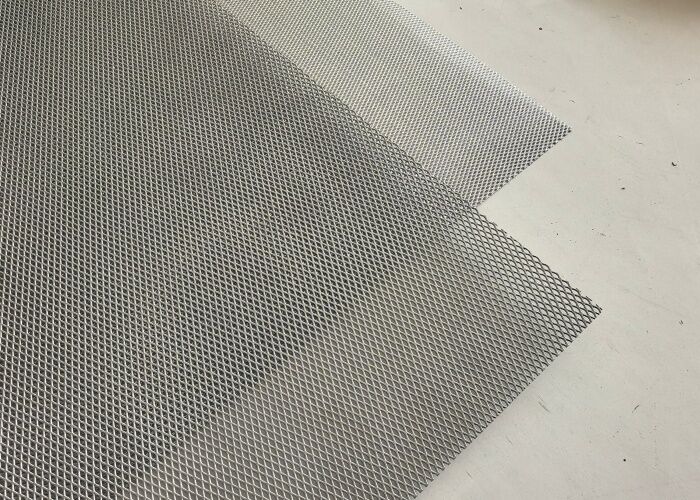

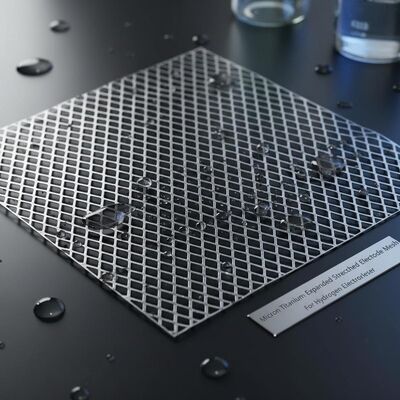

Micron Titanium Expanded Stretched Electrode Mesh Sheet for Hydrogen Electrolyser
Description of Expanded Metal Mesh

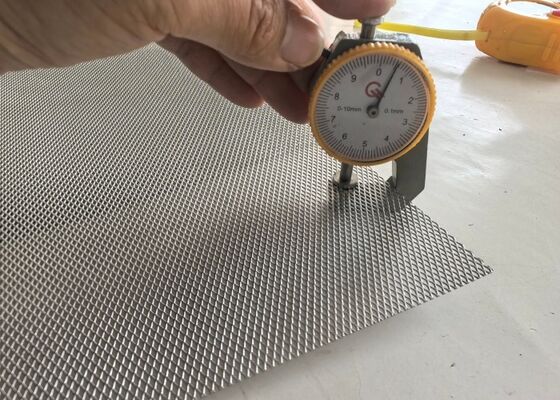

Common thickness: 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm
Typical mesh size (LWD*SWD): 12.5*6.5mm, 12.5*4.5mm, 10*5mm, 8*4mm, 6*3mm, 4*2mm, 2*1mm, 1.5*0.8mm, etc. Special mesh can be customized as required.
Common mesh width: 1250mm, 1500mm
Production process: stretching and expansion, stretching from titanium plates or titanium foil through expanding, and the mesh is diamond -shaped.
Packing: hard paper tube+leather paper
Advantages of titanium expanded mesh: acid and alkali, high temperature resistance, long service life, low replacement cost
Specification of Expanded Metal Mesh
|
Material
|
Titanium, nickel, Alloy, Copper, Brass, Monel, and other alloy metal....
|
|
Thickness
|
0.05mm, 0.1mm 0.3mm 0.5mm, 0.8mm, 1.0mm 2mm, to 5mm
|
|
Type
|
Flattened Expanded Mesh Type, Standard Expanded Mesh Type
|
|
Hole Size
|
1*2mm 0.5*1mm 2*4mm 3*5mm 4*8mm 5*10mm....
|
|
Treatment
|
Coating treatment can be provided as per your request.
|
Features of Expanded Metal Mesh
1. Exceptional Corrosion Resistance for Harsh Electrolysis Environments
Crafted from high-purity titanium (≥99.9%), it forms a stable oxide layer, withstanding strong acids, alkalis, high-concentration electrolytes and high temperatures (up to 80℃ short-term). It maintains long-term stability, reducing maintenance and replacement costs, suitable for PEM and alkaline electrolysers.
2. Micron-Level Precision & Optimized Structural Design
With advanced precision stretching technology, it has customizable micron-level holes (1×2mm to 5×10mm or smaller), uniform distribution and 40%-80% open area. Its porous structure maximizes electrode surface area, improving catalyst loading and electrolyte contact efficiency.
Applications of of Expanded Metal Mesh
Hydrogen Production: The titanium mesh is commonly used in PEM electrolyzers to facilitate the electrolysis of water, producing high-purity hydrogen. The mesh acts as an electrode support, offering superior surface area for efficient ion exchange.
Energy Storage Systems: It is used in energy storage solutions where electrolysis is employed to store energy in the form of hydrogen, contributing to green energy initiatives and renewable power generation.
Electrochemical Synthesis: Titanium expanded metal mesh plays a critical role in the development of various electrochemical processes, such as metal plating and chlorine production, due to its excellent resistance to aggressive chemicals.
Marine Applications: Its corrosion-resistant properties make it suitable for marine environments, where it can be used in electrolytic cells for desalination and water treatment systems.
Fuel Cells: The mesh is used in fuel cells as a conductive material, enabling efficient hydrogen generation for fuel cell applications.
With its durability and versatility, PEM Electrolytic Cell Titanium Expanded Metal Mesh ensures enhanced operational efficiency and longevity in demanding environments, making it a preferred choice for industries focused on sustainable energy and advanced electro chemical technology.
