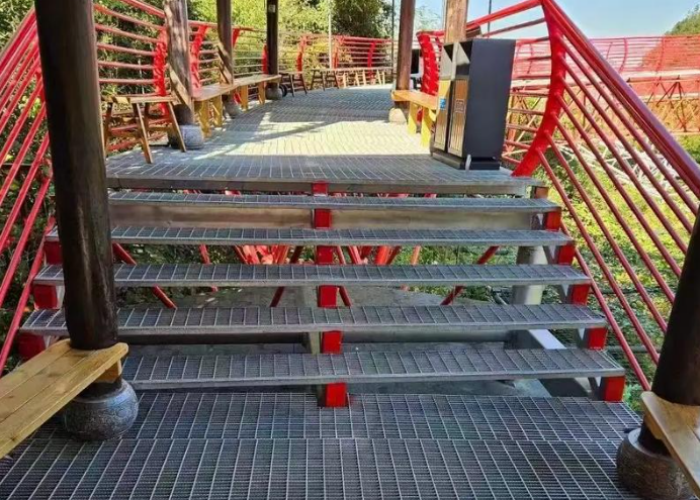

Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm

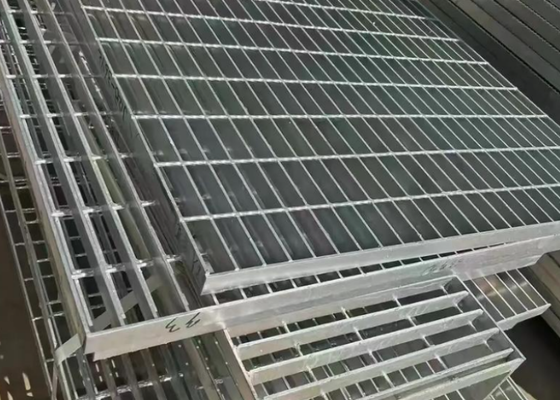

Large Image : Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm

Product Details:

Place of Origin:	CHINA
Brand Name:	YUANHAI
Certification:	ISO9001
Model Number:	YH-G1

Payment & Shipping Terms:

Minimum Order Quantity:	50Pcs
Price:	USD5-26/pc
Packaging Details:	1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.
Supply Ability:	5000Pcs Per Month

Contact Now

Detailed Product Description

Product Name:	Steel Grating	Key Word:	Steel Bar Grating
Material:	Q195,Q235	Surface Treatment:	Hot Dip Galvanized,Electric Galvanized
Bearing Bar:	20x5, 25x3, 25x4, 25x5, 30x3, 30x5	Bearing Bar Thickness:	2.5-10mm
Cross Bar:	5mm,6mm,8mm	Cross Bar Pitch:	40, 50, 60, 65, 76, 100 Etc
Certification:	ISO 9001	Brand Name:	OEM
Application:	Platform ,park , Driveway	Feature:	High Strength, Light Structure, High Bearing.
Highlight:	galvanized steel grating floor , serrated stair tread grating , 40x5mm steel walkway grating

Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm

Steel Walkway Grating Description

Steel Walkway Grating is manufactured by welding carbon steel bearing bars and cross bars together. Hot-dip galvanized surface provides excellent rust resistance for outdoor and indoor use. It features open structure for ventilation, drainage and anti-accumulation of dust. Widely adopted as safe walking surfaces for factory platforms, pedestrian passages and trench covers. Custom sizes and serrated anti-slip options are available to meet different load and safety requirements.

Steel Walkway Grating Specification


Item	Description
Bearing bar	20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
Bearing bar pitch	25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Cross bar	5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross bar pitch	40, 50, 60, 65,76,100,101.6,120,130mm or as customers’ requirement.
Flat bar type	Plain, Serrated (tooth-like), I bar (I section)
Materials	Low carbon steel (Q275/Q235/Q195,ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A),Stainless steel,aluminum alloy,etc
Galvanizing standard	CN: GB/T13912, US: ASTM (A123), UK: BS729
Steel grating standards	A. China: YB/T4001-1998
	B. USA: ANSI/NAAMM (MBG 531-88)
	C. UK: BS4592-1987
	D. Australia: AS1657-1988
	E. Japan: JJS
Surface treatment	Black,Electro galvanized(Cold dip galvanized),Hot dipped galvanized,Painted,Powder coated,or as customers’ requirements.And hot dipped galvanizing is generally recommended.

Steel grid gratings Surface Treatment

1) Hot dip galvanized as per ASTM A123 or EN ISO 1461 or special requirement

2) Painted or Powder Coated

3) HDG plus painted/powder coated

Steel Walkway Grating Features

High load bearing capacity
Serrated anti-slip surface optional
Hot-dip galvanized for anti-corrosion
Open mesh for drainage & ventilation
Lightweight, easy installation
Low maintenance & long service life
Custom sizes and shapes available
Stable welded structure

Steel Walkway Grating Applications

Factory pedestrian passage
Water treatment plant
Trench & drainage cover
Marine & offshore walkway
Chemical workshop
Municipal engineering
Park & outdoor walkway

Galvanized Serrated Steel Grating Floor For Stair Tread 40×5mm
