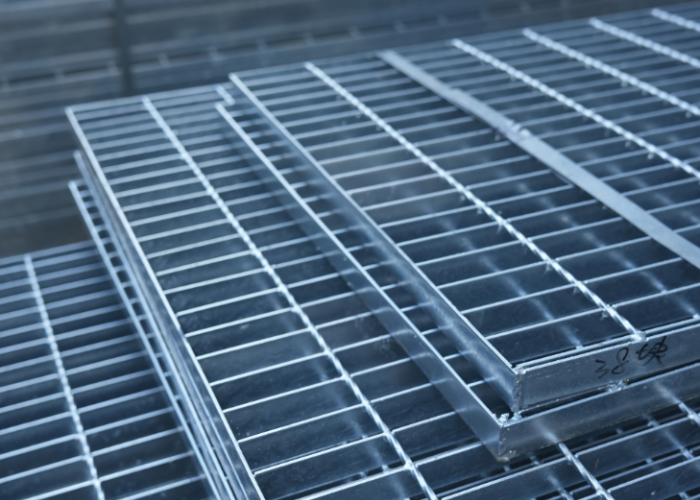

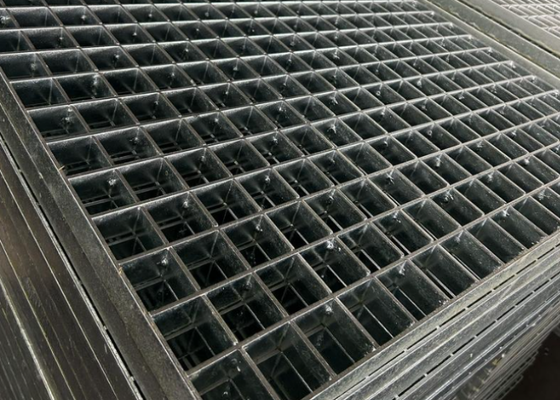

Galvanized Industrial Steel Walkway Grating Bar Grating For Industrial Platform

Galvanized Industrial Steel Walkway Grating Bar Grating For Industrial Platform

Description of Steel Walkway Grating

Lightweight Steel Walkway Grating offers a cost-effective solution for general pedestrian access projects. Compact welded structure keeps stable performance while reducing overall weight for easy transport and installation. Hot galvanized finish ensures long service life under normal weather conditions. Suitable for municipal walkways, park platforms and light-duty industrial passages. We support flexible cutting and customized shapes to fit on-site layout demands.

1. Steel grating standards:
A) China: YB/T4001.1-2007
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS.

2. Bearing bar specification:20*3 to 100*6

3. Bearing bar pitch:12.5,15,25,30,40,60mm etc. also be according to clients requirement and 30,40,60mm are recommended

4. Cross bar picth:38,50,76,100mm,also be according to clients requiremen and 50,100mm are recommended.

5. The Maximun length of black panel is 7350mm.

6. Materials: mild steel or stainless steel.

7. Surface treatment: untreated, painting or hot dip galvanizing.

8. Steel grating with America standard can also be fabricated.

Galvanized Steel Grating Applications

• Municipal pedestrian walkways
• Park sightseeing platforms
• Warehouse access passages
• Landscape drainage covers
• Building maintenance walkways

Galvanized Steel Grating Features

• Serrated anti-slip design enhances safety on wet surfaces
• Robust welded structure for long-term heavy pedestrian load
• Hot-dip galvanized coating resists rust and weather erosion
• Open mesh structure eliminates water accumulation
• Easy to cut and install on site
• Minimal maintenance requirement
• Custom dimensions and shapes acceptable
