Product Details:
Payment & Shipping Terms:
|
| Material: | SS304,304L,410,316,316L | Shape: | Round/square, Plate |
|---|---|---|---|
| Feature: | High Mass Transfer | Application: | Mass Transfer, Absorption/Separation Equipment |
| Description: | Mass Transfer And Separation | Package: | Carbon Box |
| Highlight: | structured packing column,distillation column packing material |
||

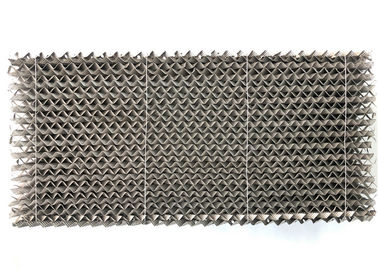

Stainless Steel Metal Structured Packing For Distribution Of Gas-Liquid 125Y
Product Introduction
Metal corrugated plate packing is made of a thin metal plate being punched and corrugated. As there are many small spines due to surface pitting, the separation efficiency are improved with prolonged retention time on the surface and more sufficient exchange of vapor and liquid drop. The diameter of the filler hole is 0.4 ~ 0.5mm, which is usually made of ultra-low carbon corrosion resistant stainless steel material, used for oil industry, fine chemical industry, pharmaceutical equipment, etc.
Product Application
Mass transfer of temperature sensitive chemical products
Proper lateral distribution of liquids and gases
Solvent recovery
Batch and continuous distillation
Low liquid loading systems
Providing highest theoretical stages per meter of packing height
Reducing liquid hold up
Economizing operating loads of vessels

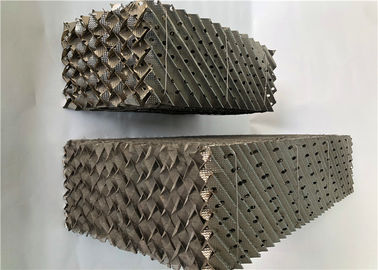

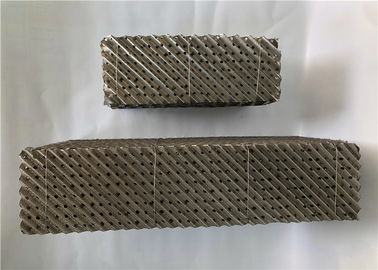

Metal Structured Packing
Product Specification
| Model | Metal Structured Packing | |||||||
| Material | SS 304, 304L, 410, 316, 316L, etc. | |||||||
| Model | Specific surface | Bulk density | Void ratio | Obl. | ΔP | Theo. plate | HETP/mm | F factor m/s (kg/m3)0.5 |
| (m2/m3) | (kg/m3) | (%) | angle | (Pa/plate) | (piece/m) | |||
| 250AX | 250 | 125 | 95 | 30 | 100-400 | 2.5~3 | 100 | 2.5-3.5 |
| 500BX | 500 | 250 | 90 | 30 | 400 | 4~5 | 200 | 2.0-2.4 |
| 700CY | 700 | 350 | 85 | 45 | 600-700 | 8~10 | 333-400 | 1.5-2.0 |
| Typical Application | Absorption, scrubbing and stripping services | |||||||
| Package : | Carton box; wooden box | |||||||
| Warranty: | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 | |||||||
| b) Offer lifetime consultation on problems occurred | ||||||||
Product Advantage
High number of theoretical plates, large flux and low pressure drop;
Large operation elasticity;
No obvious amplification effect;
Good performance with low working load, increased number of theoretical plates with the decrease of gas load, and there is almost no bottom limit of work load;
Fulfilling the requirements of precision, large and high vacuum distillation units, providing favorable conditions for distillation separation system, heat sensitive material and high purity products.
Packing&Shipping
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
