High Efficiency 304 Metal Tower Packing Low Resistance For Fractional Distillation

High Efficiency 304 Metal Tower Packing Low Resistance For Fractional  Distillation
High Efficiency 304 Metal Tower Packing Low Resistance For Fractional  Distillation High Efficiency 304 Metal Tower Packing Low Resistance For Fractional  Distillation High Efficiency 304 Metal Tower Packing Low Resistance For Fractional  Distillation

Large Image :  High Efficiency 304 Metal Tower Packing Low Resistance For Fractional Distillation

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 8 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Size: Dia:125Y/250Y/350Y/450Y
Feature: High Mass Transfer Application: Mass Transfer, Absorption/Separation Equipment
Package: Carbon Box Certification: ISO 9001
High Light:

distillation packing

,

structured tower packing

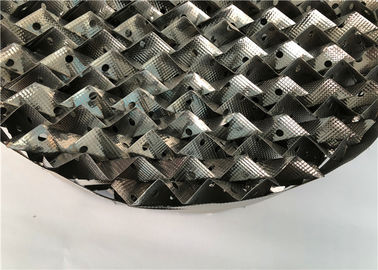

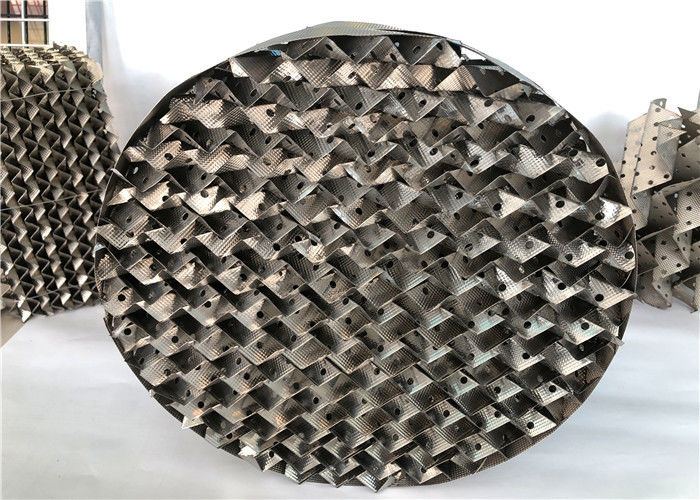

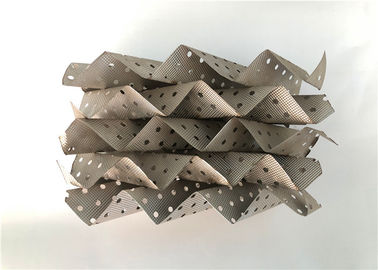

SS 304 Metal Tower Packing Orifice Corrugated Packing For Fractional Distillation


Product Description

      Metal Tower packings is assembled by rolling small profile and bellows in metallic sheet surface. With the advantages of low resistance,                  uniform distribution of gas-liquid, high efficiency, big flux, not obvious enlarging effect, it is applied to vacuum or pressure operation.


 Product Application

  Mass transfer of temperature sensitive chemical products
  Proper lateral distribution of liquids and gases
  Solvent recovery
  Batch and continuous distillation
  Low liquid loading systems
  Providing highest theoretical stages per meter of packing height
  Reducing liquid hold up
  Economizing operating loads of vessels

 Product Specification


TYPE
Specific Area (M2/M3)
Void (%)
F Factor

4Y/X
55
99.5
56
Material: CS,SS,Cu,Al,Monel,Ni,Ti,also can up on customer requests
64Y/X
64
99.42
65
3.5Y/X
80
99.27
81
3Y/X
110
99.25
113
125Y/X
125
98.94
129
2.5Y/X
155
98.89
159
170Y/X
170
98.84
174
200Y/X
200
98.63
211
2Y//X
223
98.98
230
250Y/X
250
98.72
260
1.6Y/X
295
98.66
310
350Y/X
350
98.41
370
1Y/X
420
98.09
450
500Y/X
500
96.58
540
750Y/X
750
95.9
832


Product Advantage

Uniform distribution of gas-liguid
Low resistance
Big flux
long service time
high efficiency
Packing&Shipping

High Efficiency 304 Metal Tower Packing Low Resistance For Fractional  Distillation 0
