Pure Nickel Metal Wire Mesh Gauze Structured Packing For Separation Tower 350 Y
Product Description
Material:304 316 316L 904L hastelloy inconel monel FeCrAl copper brass
Size:800x150,1000x150,1200x150
Feature:acid alkali function,long service life,uniform contacting surface area,large void space,thin wall,small resistance,Large specific surface, high void ratio and light weight,small gas path obliquity regular,low pressure drop,good radial diffusion,sufficient gas-liquid contact.
Application:Chemical industry,Agro chemical Industry,Oil and Gas industry,Petrochemical Industry,Pharmaceutical Industry,Edible Oil Deodorizers,Coker Scrubbers,Vacuum Towers,Gas Quench Towers,Oil Refineries,Atmospheric Crude Units.
Product Specification
| Model |
Structured Packing |
| Material |
SS 304, 304L, 410, 316, 316L, etc. |
| Model |
Specific surface |
Bulk density |
Void ratio |
Obl. |
ΔP |
Theo. plate |
HETP/mm |
F factor m/s (kg/m3)0.5 |
| (m2/m3) |
(kg/m3) |
(%) |
angle |
(Pa/plate) |
(piece/m) |
| 250AX |
250 |
125 |
95 |
30 |
100-400 |
2.5~3 |
100 |
2.5-3.5 |
| 500BX |
500 |
250 |
90 |
30 |
400 |
4~5 |
200 |
2.0-2.4 |
| 700CY |
700 |
350 |
85 |
45 |
600-700 |
8~10 |
333-400 |
1.5-2.0 |
Product Advantage
Low liquid loading systems
Providing highest theoretical stages per meter of packing height
Reducing liquid hold up
Economizing operating loads of vessels

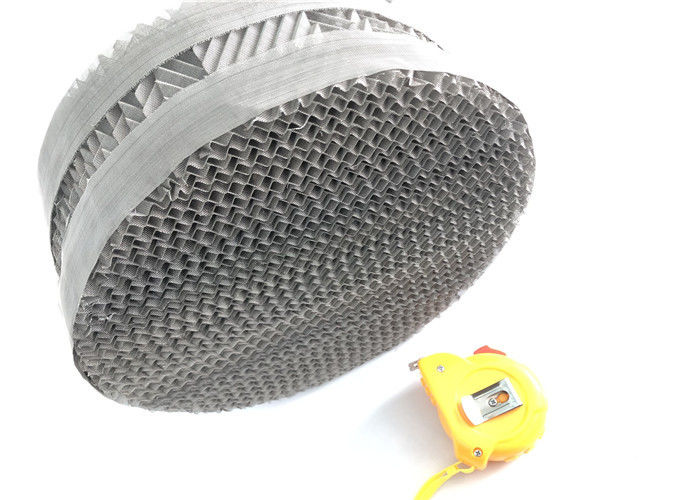

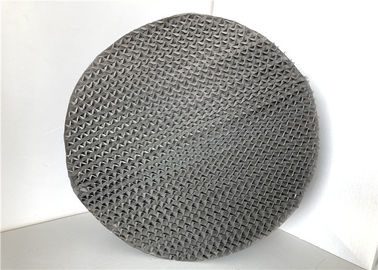

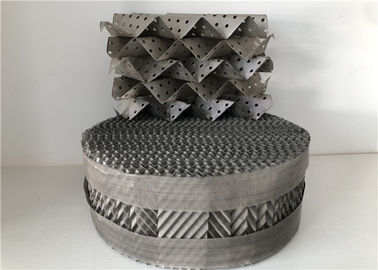

Product Image
Product Application
Fine chemical, flavour factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
