125Y Tower Column Metal Structured Packing Smooth Surface Mass Transfer Media

125Y Tower Column Metal Structured Packing Smooth Surface Mass Transfer Media
125Y Tower Column Metal Structured Packing Smooth Surface Mass Transfer Media 125Y Tower Column Metal Structured Packing Smooth Surface Mass Transfer Media

Large Image :  125Y Tower Column Metal Structured Packing Smooth Surface Mass Transfer Media

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-08
Payment & Shipping Terms:
Minimum Order Quantity: 10 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Shape: Round/square, Plate
Size: Dia:125Y/250Y/350Y/450Y Feature: High Mass Transfer
Certificate: ISO9001:2008 Application: Mass Transfer, Absorption/Separation Equipment
Description: Mass Transfer And Separation After Sales Service: Provide
Highlight:

structured packing column

,

structure packing in distillation

SS 316 Mass Transfer Media 125Y Metal Structured Packing For Tower And Column





Product Description





Metal perforated plate corrugated packing is made of materials like carbon steel, stainless steel ,etc.

It is widely used in the reactors in fine chemical industry, petrochemical industry, and fertilizer industry as mass transfer media and often used in difficult separation and the vacuum distillation of heat content, atmospheric distillation and absorption process.


Product Specification



The specification is based on SS304 material:



Material



Model

Wave Crest Height
Theo. Plate
Surface area
Void Volume
Pressure Drop
mm
m-1
m2/m3
%
Mpa/m

SS316

CY700
4.3
8-10
700
87
4.5-6.5*10-4
BX500
6.3
4.5-5.5
500
95
3.0*10-4



Features of metal structured packing



1. No wall flow technology,wall flow below 2%.
2. application:exactness separation, air separation, low temperature separation
3. acid&alkali function,long service life
4. Uniform contacting surface area
5. large void space, thin wall,small resistance
6. Large specific surface, high void ratio and light weight.
7. Small gas path obliquity regular, low pressure drop.
8. Good radial diffusion, sufficient gas-liquid contact.


Product Application


Proper lateral distribution of liquids and gases

Solvent recovery

Batch and continuous distillation

Low liquid loading systems

Reducing liquid hold up

Economizing operating loads of vessels

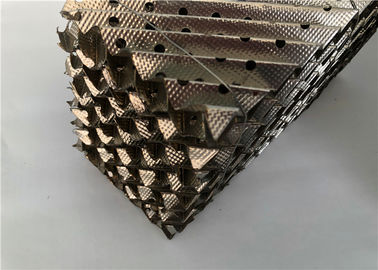

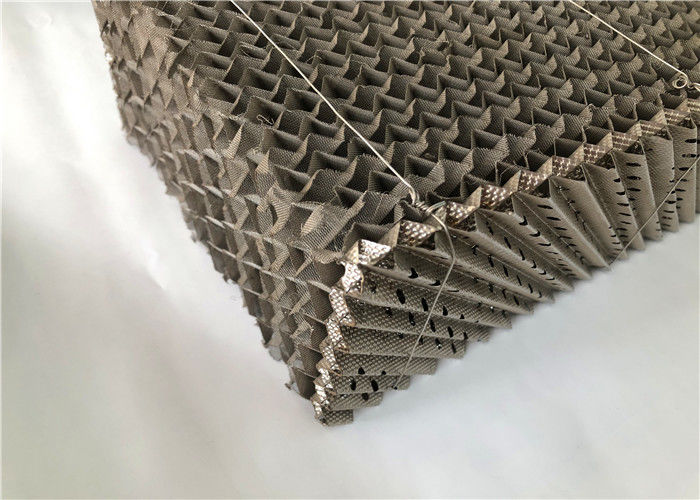

Metal Structured Packing Image


 125Y Tower Column Metal Structured Packing Smooth Surface Mass Transfer Media 0


Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
