Metal Structured Packing Stainless Steel Column Packing 304 For Separation Tower

Metal Structured Packing Stainless Steel Column Packing 304 For Separation Tower
Metal Structured Packing Stainless Steel Column Packing 304 For Separation Tower Metal Structured Packing Stainless Steel Column Packing 304 For Separation Tower Metal Structured Packing Stainless Steel Column Packing 304 For Separation Tower Metal Structured Packing Stainless Steel Column Packing 304 For Separation Tower

Large Image :  Metal Structured Packing Stainless Steel Column Packing 304 For Separation Tower

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-15
Payment & Shipping Terms:
Minimum Order Quantity: 10 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Size: Dia:125Y/250Y/350Y/450Y
Feature: High Mass Transfer Certificate: ISO9001:2008
Application: Mass Transfer, Absorption/Separation Equipment Description: Mass Transfer And Separation
Highlight:

structured packing column

,

structure packing in distillation

Stainless Steel 304 Metal Perforated Structured Packing For Separation Tower





Product Description



1. The pressure drop of the structured packing is significant



Since the gas-liquid two-phase membrane contact in the structured packing is different from the bubbling contact of the two phases in the sieve tray, the pressure drop of the packed tower is only 1/4 to 1/6 of the sieve tray. For example, the operating resistance of the tower on the structured packing is 3.5-4.2 kPa, the operating pressure at the bottom is only 35-45 kPa, the lower tower is still still using the sieve tray tower, and the operating resistance is not changed, so the operating pressure of the lower tower is correspondingly reduced by 0.05~ 0.06 MPa, generally 0.44 to 0.48 MPa, so that the shaft power of the air compressor can be reduced by 5% to 7%.



2. High efficiency of structured packing separation



The lower the operating pressure of the upper column, the greater the separation of oxygen, nitrogen and argon, especially the separation of oxygen and argon. Generally, the extraction rate of oxygen can be increased by 1% to 3%, and the extraction rate of argon can be increased by 5%. 10%, practice has proved that the oxygen extraction rate of air separation equipment has reached more than 99%, and the extraction rate of argon has reached more than 80%.

The extraction rate of the distillation column depends to a large extent on the amount of expansion air entering the upper column, especially for the extraction rate of argon, so the isentropic efficiency of the turboexpander and the supercharging of the supercharger are continuously improved. The ratio is the key to increasing the extraction rate of the distillation column.



3. The regular packing has a small liquid holding capacity



The volume of the structured packed column is generally only 1% to 6% of the column volume, while the holding capacity of the sieve column is 8% to 10% of the column volume. The small liquid holding capacity means that the liquid stays in the tower for a short time and the operating pressure drop is small, which is beneficial to the operation of the variable working condition. The structured packing tower can be designed in the range of 40% to 120%. The oxygen production of the upper tower of the 12000m3/h air separation plant of Shanggang No. 5 Plant can be adjusted within the range of 9000~14000mm3/h, and the operating load range is only 75%~117%.



4. Regular packing gap is large



The structured packing has a void ratio of more than 95%. In the sieve tray tower, the orifice plate area accounts for 80% of the tower section, and the opening ratio is 8% to 12%, which are far less than the void ratio of the filler layer. For the same load, the tower of the packed tower is smaller than the sieve tower; in general, the cross-sectional area is only about 70% of the sieve tower, which is advantageous for large-scale air separation equipment.



5. The device startup time is greatly shortened



The starting process of the air separation equipment is no product output operation, so shortening the starting time is one of the ways to save energy and reduce consumption of the air separation equipment. The starting time of the air separation equipment refers to the time required to start the expansion machine to the oxygen output. After the completion of the packing, the amount of liquid held during normal rectification is greatly reduced, and the start-up time of the air separation plant is greatly shortened. After the conventional packing is used in the upper tower, the amount of liquid held during normal rectification is greatly increased. After the descent, the start-up time of the air separation plant is greatly shortened, and the general start-up time only takes 26 to 30 hours.



6. The oxygen content in the argon fraction is about 90%.



To reduce directly to 1~2×10-4% by cryogenic rectification, the theoretical plate number of the rectification column needs about 180 pieces, the sieve plate plate needs about 300 pieces, and the resistance is up to about 100 kPa. Obviously, the crude argon is It is impossible to discharge the outside of the tower, and the height of the structured packing is about 45m. The resistance is only 14 to 16 kPa, so the realization of the full rectification argon process is possible.


Product Specification



Model Perforated Plate Corrugated Packing
Material SS 304, 304L, 410, 316, 316L, etc.
Model 125Y 250Y 350Y 500Y 125X 250X 350X 500X
Specific surface (m2/m3) 125 250 350 500 125 250 350 500
Bulk density (kg/m3) 100 200 280 360 100 200 280 360
Void ratio (%) 98 97 94 92 98 97 94 92
Obl. angle 45° 45° 45° 45° 30° 30° 30° 30°
P (Pa/plate) 200 300 350 400 140 180 230 280
Theo. plate (piece/m) 1~1.2 2~2.5 3.5~4 4~4.5 0.8~0.9 1.6~2 2.3~2.8 2.8~3.2

Typical Application Absorption, scrubbing and stripping services

Package : Carton box;
M.O.Q: 1 CBM
Payment Terms: T/T; L/C; PayPal; West Union
Warranty: a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995
b) Offer lifetime consultation on problems occurred

Container 20GP 40GP 40HQ Normal order Minimum Order Sample order
Quantity 25 CBM 54 CBM 68 CBM <25 CBM 1 CBM < 5 pcs
Delivery Time 7 days 14 days 20 days 7 Days 3 days Stock
Comments: Customized making is allowed.


Product Application



Solvent recovery

Batch and continuous distillation

Low liquid loading systems

Reducing liquid hold up

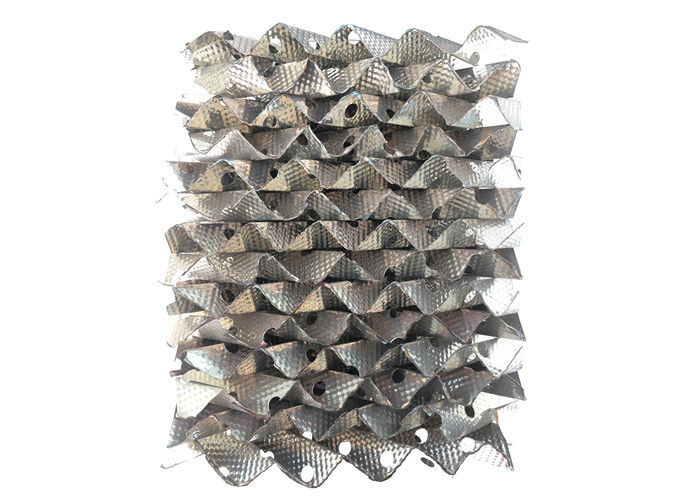

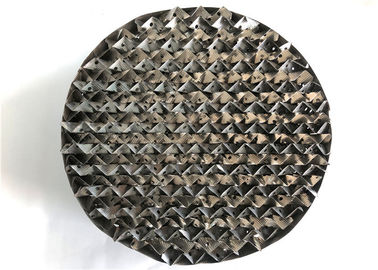

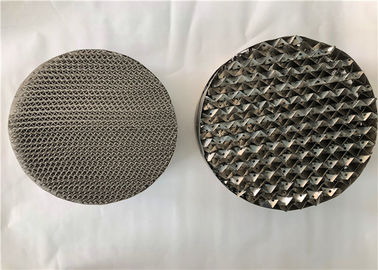

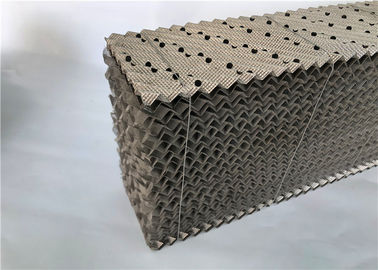

Metal Structured Packing Image



Metal Structured Packing Stainless Steel Column Packing 304 For Separation Tower 0



Metal Structured Packing Stainless Steel Column Packing 304 For Separation Tower 1
