High Efficiency Distillation Column Packing Material , Mesh Corrugated Packing

High Efficiency Distillation Column Packing Material , Mesh Corrugated Packing
High Efficiency Distillation Column Packing Material , Mesh Corrugated Packing High Efficiency Distillation Column Packing Material , Mesh Corrugated Packing High Efficiency Distillation Column Packing Material , Mesh Corrugated Packing

Large Image :  High Efficiency Distillation Column Packing Material , Mesh Corrugated Packing

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-18
Payment & Shipping Terms:
Minimum Order Quantity: 20 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Size: Dia:125Y/250Y/350Y/450Y
Feature: High Mass Transfer Certificate: ISO9001:2008
Application: Mass Transfer, Absorption/Separation Equipment Description: Mass Transfer And Separation
Dimensions: Customized Usage: Mass Transfer Media
High Light:

structure packing in distillation

,

distillation column packing material

SS 304 Metal Structured Packing Tower Corrugated Packing For Separation Tower



Product Description



1. The pressure drop of the structured packing is significant



2. High efficiency of structured packing separation



3. The regular packing has a small liquid holding capacity



4. Regular packing gap is large



5. The device startup time is greatly shortened



6. The oxygen content in the argon fraction is about 90%.


Product Specification



Model Perforated Plate Corrugated Packing
Material SS 304, 304L, 410, 316, 316L, etc.
Model 125Y 250Y 350Y 500Y 125X 250X 350X 500X
Specific surface (m2/m3) 125 250 350 500 125 250 350 500
Bulk density (kg/m3) 100 200 280 360 100 200 280 360
Void ratio (%) 98 97 94 92 98 97 94 92
Obl. angle 45° 45° 45° 45° 30° 30° 30° 30°
P (Pa/plate) 200 300 350 400 140 180 230 280
Theo. plate (piece/m) 1~1.2 2~2.5 3.5~4 4~4.5 0.8~0.9 1.6~2 2.3~2.8 2.8~3.2

Typical Application Absorption, scrubbing and stripping services


Product Application



Perforated plate corrugated packing with the wide range of applications;

Diameter: 0.1-12m;

Pressure: Vacuum to high pressure;

Liquid load: 0.2 to more than 300 m3 / m2.h;

System: Ethyl benzene/ styrene, Fatty acid, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.



Stainless steels, 304, 316, 316L, Carbon steels, Aluminum, copper bronze etc. Further materials available on request for user.

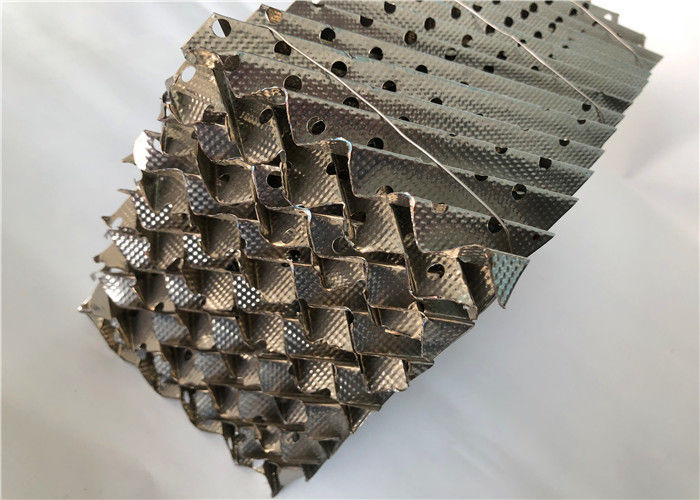

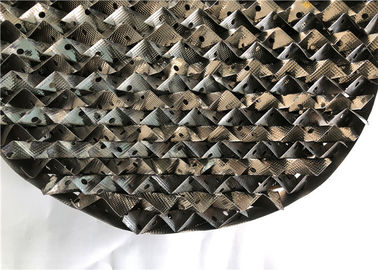

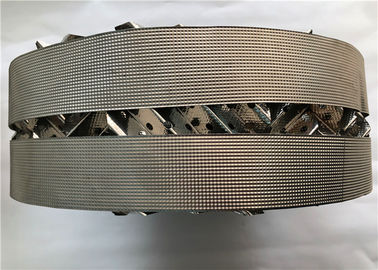

Metal Structured Packing Image



High Efficiency Distillation Column Packing Material , Mesh Corrugated Packing 0


Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
