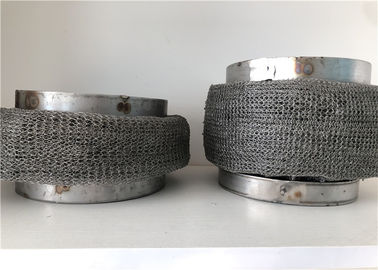

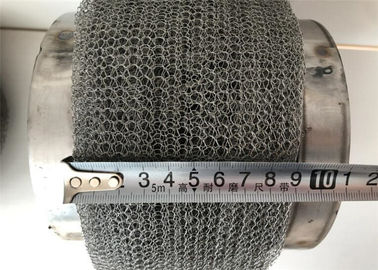

SS 304 Knitted Wire Mesh Mist Eliminator , Demister Mist Eliminator High Efficiency

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

SS 304 Knitted Wire Mesh Mist Eliminator , Demister Mist Eliminator High Efficiency

SS 304 Knitted Wire Mesh Mist Eliminator , Demister Mist Eliminator High Efficiency
SS 304 Knitted Wire Mesh Mist Eliminator , Demister Mist Eliminator High Efficiency SS 304 Knitted Wire Mesh Mist Eliminator , Demister Mist Eliminator High Efficiency

Large Image :  SS 304 Knitted Wire Mesh Mist Eliminator , Demister Mist Eliminator High Efficiency

Product Details:
Place of Origin: Anping,Hebei,China
Brand Name: YH
Certification: ISO 9001:2008
Model Number: YH-01
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden Packed or as request
Delivery Time: 7 days after payment
Payment Terms: T/T
Supply Ability: 40000 Cubic Meters per month
Detailed Product Description
Material: 304,316, Stainless Steel, Monel,Metal, Feature: Corrosion Resistance
Product Name: Wire Mesh Demister, Mist Eliminator For Filter Filter Rating: 99.9%
Mesh Count: 2-635 Mesh Thickness: 150-200mm Or On Request
Length: As Request And Drawing Type Code: SP,HP.DP,HR
High Light:

stainless steel mesh pad

,

mesh pad mist eliminator

SS 304 Gas-liquid Filter Wire Mesh Demister Pad Knitted Mesh Mist Eliminator





Description


Mist eliminator also known as wire mesh demister, is a kind of vapor liquid separating device.It is made up of many corrugated gas liquid filter net,a grid and a fixed distance rod .It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.It can ensure the mass transfer efficiency,reduce the loss of valuable materials after operation of compressor, commonly setted in the top of device.


Specification


Style
Materials
Application
Wire
Mesh
Density
kg/m3
Surface
Area
m2/m3
Voidage%
Nominal
Micron
Rating*
HE-1M
Metals
Very high efficiency in clean service
Diameter
195
650
97.5
3 μ
HE-2M
Metals
Fine droplet removal in clean service
mm
145
480
98.2
4 μ
HE-3M
Metals
General purpose, clean service
0.15
112
375
98.6
5 μ
GP-1M
Metals
Optimum efficiency & pressure drop
0.15
195
355
97.6
5 μ
GP-2M
Metals
General purpose, not totally clean
0.15
170
310
97.9
6 μ
GP-3M
Metals
Heavy duty e.g. oil & gas separators
0.275
145
265
98.2
8 μ
DS-1M
Metals
Light fouling
0.275
110
200
98.6
10 μ
DS-2M
Metals
Moderate fouling
0.275
80
145
99.0
12 μ
DS-3M
Metals
Heavy fouling e.g. evaporators
0.275
50
90
99.4
15 μ
HE-1G
Glass Wool
Very fine mists
0.20
195
1500
92.5
2 μ
HE-2G
Glass Wool
Fine mists
0.20
135
1000
94.8
3 μ
HE-1P
Polypropylene
Acid mists
0.25
75
1120
93.0
3 μ
HE-1X
Metal/PP Mix
Mist removal of polar and non-polar mixtures
0.275/0.25
200
625
95.6
5 μ
GP-1P
Polypropylene
Chemical scrubber towers
0.25
50
750
95.3
6 μ
GP-1T
Teflon
Very corrosive services
0.25
64
480
97.0
8 μ
DS-1P
Polypropylene
Low pressure drop e.g. air scrubbers
0.25
33
490
96.9
10 μ


Features of Demister pad

  • When gas is passed through the demister, existing liquid particles in the gas hit the demister threads, build up due to molecular attraction, increase in size until they detach due to gravity and flow toward the drain.
  • Wide range of work conditions in separation of liquid contaminants (including solids and associated gases in the flow of gas being processed: very fine sand, hydrocarbons, etc).
  • High efficiency through various configurations and equipment with various stages.
  • Flexible design conditions: Minimal pressure loss allowing for high gas speeds.
  • Integrated purge or drainage systems.

Product Detail


Material:stainless steel 304,304L,316,316L,317,310S,321,304M,434, brass, copper, monel, nickel, tiatnium, 1Cr18Ni9Ti, Cr20Ni80, Cr20Ni50, galvanized, low carbon iron.

Wire diameter: 0.1-0.55mm flat wire or round wire. Most common: 0.20mm-0.25mm.
Hole Sizes: 4mm×3mm 5mm×6mm 2mmx4mm, 4mmx5mm etc.
Hole shape: irregular
Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500 mm, 600mm, etc.
Length: 30-200m, customized size is available.
Thickness: 0.12mm-2.5mm, customized size is available
Craft: through layered, spiral wound or compressed, produces a tortuous path for highly effective particle capture.
Surface: flat-type and corrugated type



Application


Demister pad can be used in gas-liquid separation in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.
