SS 304 Mist Eliminator Wire Mesh Demister Pads With Stainless Steel Grid Frame
Description
Mist eliminator also known as wire mesh demister, is a kind of vapor liquid separating device.It is made up of many corrugated gas liquid filter net,a grid and a fixed distance rod .It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.It can ensure the mass transfer efficiency,reduce the loss of valuable materials after operation of compressor, commonly setted in the top of device.
Specification
|
Style
|
Materials
|
Application
|
Wire
|
Mesh
Density
kg/m3
|
Surface
Area
m2/m3
|
Voidage%
|
Nominal
Micron
Rating*
|
|
HE-2M
|
Metals
|
Fine droplet removal in clean service
|
mm
|
145
|
480
|
98.2
|
4 μ
|
|
HE-3M
|
Metals
|
General purpose, clean service
|
0.15
|
112
|
375
|
98.6
|
5 μ
|
|
GP-1M
|
Metals
|
Optimum efficiency & pressure drop
|
0.15
|
195
|
355
|
97.6
|
5 μ
|
|
GP-2M
|
Metals
|
General purpose, not totally clean
|
0.15
|
170
|
310
|
97.9
|
6 μ
|
|
GP-3M
|
Metals
|
Heavy duty e.g. oil & gas separators
|
0.275
|
145
|
265
|
98.2
|
8 μ
|
|
DS-2M
|
Metals
|
Moderate fouling
|
0.275
|
80
|
145
|
99.0
|
12 μ
|
|
DS-3M
|
Metals
|
Heavy fouling e.g. evaporators
|
0.275
|
50
|
90
|
99.4
|
15 μ
|
|
HE-1G
|
Glass Wool
|
Very fine mists
|
0.20
|
195
|
1500
|
92.5
|
2 μ
|
|
HE-2G
|
Glass Wool
|
Fine mists
|
0.20
|
135
|
1000
|
94.8
|
3 μ
|
|
HE-1X
|
Metal/PP Mix
|
Mist removal of polar and non-polar mixtures
|
0.275/0.25
|
200
|
625
|
95.6
|
5 μ
|
|
GP-1P
|
Polypropylene
|
Chemical scrubber towers
|
0.25
|
50
|
750
|
95.3
|
6 μ
|
|
DS-1P
|
Polypropylene
|
Low pressure drop e.g. air scrubbers
|
0.25
|
33
|
490
|
96.9
|
10 μ
|
Features of Demister pad
- High efficiency through various configurations and equipment with various stages.
- Flexible design conditions: Minimal pressure loss allowing for high gas speeds.
- Integrated purge or drainage systems.
- Various materials.
- Demisters are basic pieces of equipment in desulphurisation plants, for incineration, combustion gas treatment, mould, odour,
- bacteria, and corrosion removal due to condensation, etc.
Packing
There're three ways for the packaging of Titanium Wire Mesh Demister:
1. Pallets, for big quantity and big diameters products.
2. Wooden case, for smaller products, more better protection.
3. Carton, for samples and small Titanium Wire Mesh Demister.
Application
Demister pad can be used in gas-liquid separation in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.

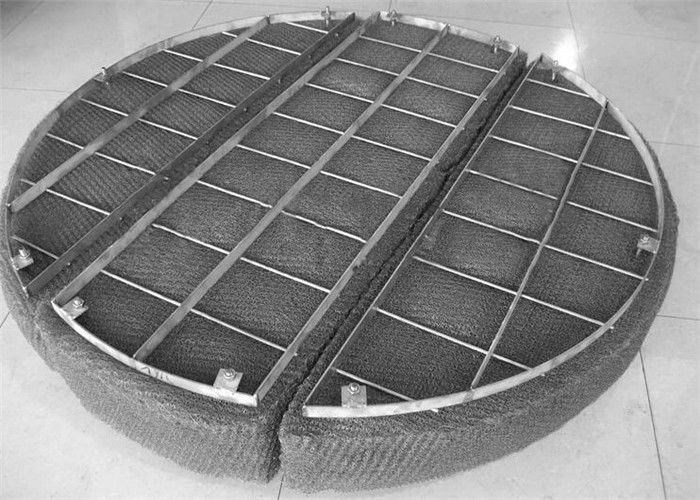

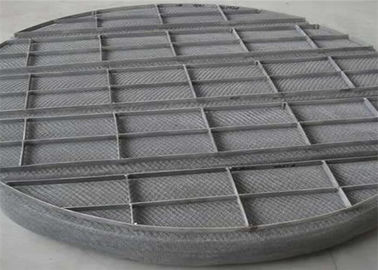

Product Image
About our company
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
