Customized Size Green Gabion Wire Mesh Wire Gauge 2-3.5mm ISO 9001 Approved

Customized Size Green Gabion Wire Mesh Wire Gauge 2-3.5mm ISO 9001 Approved
Customized Size Green Gabion Wire Mesh Wire Gauge 2-3.5mm ISO 9001 Approved Customized Size Green Gabion Wire Mesh Wire Gauge 2-3.5mm ISO 9001 Approved

Large Image :  Customized Size Green Gabion Wire Mesh Wire Gauge 2-3.5mm ISO 9001 Approved

Product Details:
Place of Origin: HEBEI, CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G01
Payment & Shipping Terms:
Minimum Order Quantity: 100m2
Price: Negotiable
Packaging Details: According to customers'requirement,for gabion basket/gabion wire mesh for protecting dam
Supply Ability: 3000m2 per month
Detailed Product Description

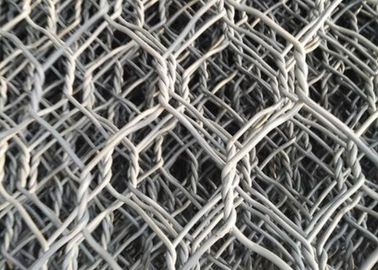

Material: Galvanized Iron Wire Type: Chain Link Mesh
Hole Shape: Hexagonal Aperture: 60*80,80*100,100*120mm
Wire Gauge: 2-3.5mm
High Light:

chicken wire mesh

,

hexagonal wire mesh

Gabion Wire Mesh For Gabion Cages / Gabion Basket / Gabion Wall

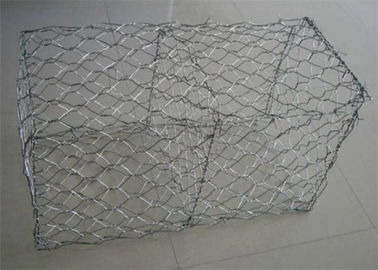

Gabion box consists of rectangular units, fabricated from a double twisted hexagonal mesh. Filled with stones, gabions become large, flexible and permeable elements from which a broad range of structures may be built.
Gabion box are divided into cells with diaphragms (usually spaced at 1 meter or 3’intervals), whose function is to reinforce the structure. The mesh (except for the diaphragms) is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate the assembly and installation.



Gabion box, other name: gabion, gabion baskets, gabion wall, garden fence, gabion duvar,

hexagonal wire mesh for garden use, hexagonal mesh gabion baskets for river bank use.



Notes: 1> Lacing and bracing wire is the wire used to assemble and join the gabion units.

2> Connecting wires are the internal wires used to prevent the gabions from bulging during filling.

3> On the hexagonal, double-twisted wire mesh opening shall not exceed ±10% on the nominal dimension.

4> In order to strengthen the box, all the edges of structure selvedged with wire of greater diameter.

5> Gabion box are supplied in various lengths ,widths and heights.





Product description




Gabion mesh is known as by different shape of gabion box,gabion basket, gabion wall,gabion
mattresses, etc.It is hexagonal wire netting and can be finished by galvanized wire mesh or PVC
coated wire mesh.



Main mechanical performance



Opening

(mm)

Wire Diameter(Metal Wire) (mm)

Wire Diameter (PVC Coate)/ Inner/Outside

(mm)

Strands
60X80 φ2.0-2.8 φ2.0/3.0-2.5/3.5 3
80X100 φ2.0-3.2 φ2.0/3.0-2.8/3.8 3
80X120 φ2.0-3.2 φ2.0/3.0-2.8/3.8 3
100X120 φ2.0-3.4 φ2.0/3.0-2.8/3.8 3
100X150 φ2.0-3.4 φ2.0/3.0-2.8/3.8 3
120X150 φ2.0-4.0 φ2.0/3.0-3.0/4.0 3




Customized Size Green Gabion Wire Mesh Wire Gauge 2-3.5mm ISO 9001 Approved 0
