304 Structured Column Metal Tower Packing For Fractional Distillation 700CY
Product Description

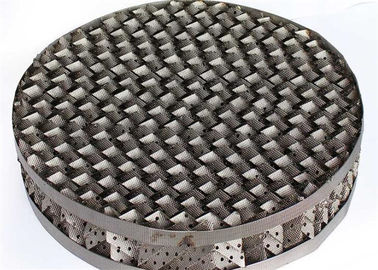

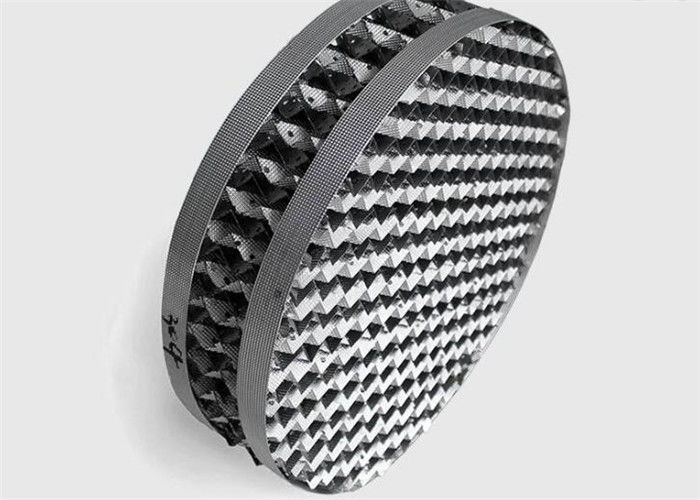

Structured packing refers to a range of specially designed materials for use in absorption and distillation columns and chemical reactors. Structured packings typically consist of thin corrugated metal plates or gauzes arranged in a way that force fluids to take complicated paths through the column, thereby creating a large surface area for contact between different phases.
Product Specification
| Model |
Void volume |
piece thickness |
Number per heaping |
Waved height |
Wave Length |
Gear-shapeangle |
F-factor |
Theoretical plate |
| (%) |
(mm) |
(kg/m) |
(mm) |
(mm) |
|
|
( piece/m) |
| 450Y |
76 |
1 ±0.2 |
600 |
6 |
11 |
80 |
1.5-2 |
4-5 |
| 350Y |
80 |
1.2±0.2 |
580 |
9 |
15 |
80 |
2 |
3.5-4 |
| 250Y |
82 |
1.4±0.2 |
530 |
13 |
22 |
80 |
2.5 |
2-3 |
| 160Y |
84 |
2.2±0.2 |
500 |
17 |
30 |
80 |
2.8 |
1.5-2 |
| 125Y |
85 |
2.5±0.5 |
480 |
23 |
42 |
80 |
3 |
1-1.5 |
| 100Y |
87.5 |
2.5±0.5 |
460 |
30 |
50 |
80 |
3.5 |
1 |
Product Advantage
Uniform distribution of gas-liguid
Low resistance
Big flux
long service time
high efficiency
Product Application
Metal plate corrugated packing with high flux, low resistance, high efficiency, the advantages of anti-blocking ability. In distillation, absorption, and extraction unit operation widely used, According to filler type, the minimum diameter of 80- 200mm, maximum diameter reached 13m, density of the liquid spray from 0.2-220m /m .hr, the pressure range from vacuum to high pressure. Is used in chemical, fertilizer, oil refining, petrochemical, natural gas and other industrial versatile and efficient structured packing. Theoretical plate number of the packing high flux, low pressure drop, low load, performance, operating flexibility, amplifying effect is not obvious.
Used in fine chemicals, spices, isomer separation, difficult to isolate system, heat-sensitive substances and products of high purity distillation, separation has significant results.
Column
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
