Chemical Metal Tower Packing High Separation Efficiency Large Flexibility

Chemical Metal Tower Packing High Separation Efficiency Large Flexibility
Chemical Metal Tower Packing High Separation Efficiency Large Flexibility Chemical Metal Tower Packing High Separation Efficiency Large Flexibility

Large Image :  Chemical Metal Tower Packing High Separation Efficiency Large Flexibility

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 10 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Feature: High Mass Transfer
Application: Absorption, Scrubbing, And Stripping Services Package: Carbon Box
Certification: ISO 9001 Type No.: 250AX,500BX,700CY
High Light:

distillation packing

,

stainless steel packing

SS 304 304l 316L Chemical Metal Tower Packing For Distribution Of Gas-Liquid


Product Description

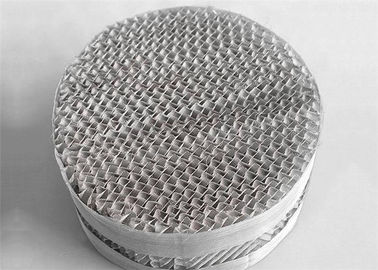

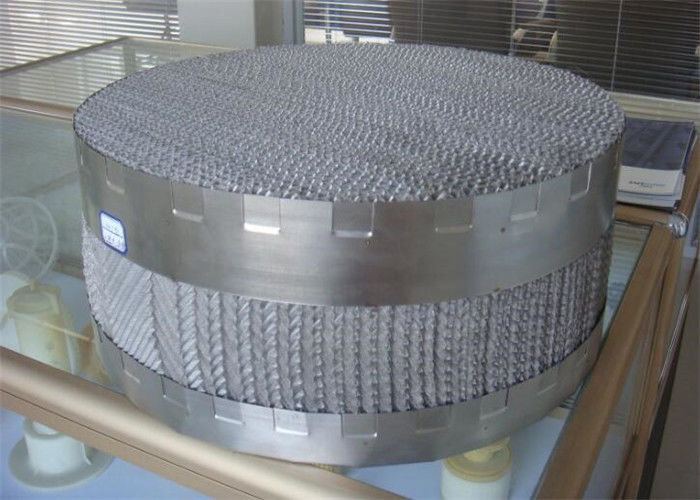

Metal structured packing is formed from thin corrugated metallic plates or wire gauze, which at uniform geometry arranged and neatly piled in the tower. Metal structured packing is widely used in absorption and distillation columns and chemical reactors. It has large surface area, low pressure drop, uniform fluids, heat and mass transfer efficiency and other advantages.



 Product Specification


Model Void volume piece thickness Number per heaping Waved height Wave Length Gear-shapeangle F-factor Theoretical plate
(%) (mm) (kg/m) (mm) (mm)     ( piece/m)
450Y 76 1 ±0.2 600 6 11 80 1.5-2 4-5
350Y 80 1.2±0.2 580 9 15 80 2 3.5-4
250Y 82 1.4±0.2 530 13 22 80 2.5 2-3
160Y 84 2.2±0.2 500 17 30 80 2.8 1.5-2
125Y 85 2.5±0.5 480 23 42 80 3 1-1.5
100Y 87.5 2.5±0.5 460 30 50 80 3.5 1


Product Advantage


(1) High capacity. New tower design may reduce diameter, while renovate old towers
may increase capacity significantly.

(2) High separation efficiency. Since it has much larger specific surface area compared
to random packing.

(3) Low pressure drop, which leads to reduce energy consumption largely.

(4) Large flexibility, and scale effect is not obvious.

(5) Suitable for all tower diameters.

(6) Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic
acid and Cl- .



 Product Application


Metal plate corrugated packing with high flux, low resistance, high efficiency, the advantages of anti-blocking ability. In distillation, absorption, and extraction unit operation widely used, According to filler type, the minimum diameter of 80- 200mm, maximum diameter reached 13m, density of the liquid spray from 0.2-220m /m .hr, the pressure range from vacuum to high pressure. Is used in chemical, fertilizer, oil refining, petrochemical, natural gas and other industrial versatile and efficient structured packing. Theoretical plate number of the packing high flux, low pressure drop, low load, performance, operating flexibility, amplifying effect is not obvious.

Used in fine chemicals, spices, isomer separation, difficult to isolate system, heat-sensitive substances and products of high purity distillation, separation has significant results.


Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
