Large Flexibility Metal Tower Packing Diameter 0.1-12m 125 Y Low Energy Consumption

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Large Flexibility Metal Tower Packing Diameter 0.1-12m 125 Y Low Energy Consumption

Large Flexibility Metal Tower Packing Diameter 0.1-12m 125 Y Low Energy Consumption
Large Flexibility Metal Tower Packing Diameter 0.1-12m 125 Y Low Energy Consumption Large Flexibility Metal Tower Packing Diameter 0.1-12m 125 Y Low Energy Consumption

Large Image :  Large Flexibility Metal Tower Packing Diameter 0.1-12m 125 Y Low Energy Consumption

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 20 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Type No.: 250AX,500BX,700CY
Keyword: Metal Wire Gauze Structured Packing Application: Tower Packing
Dimensions: 125Y 250Y 350Y 500 700 Etc Surface Area: 250㎡/m3,500㎡/m3,700㎡/m3
Chemical Composition: 99.95%Min Usage: Mass Transfer Media
High Light:

distillation packing

,

stainless steel packing

SS 304 316 Metal Tower Packing Column Packing Mesh Used In Petrochemical 125 Y


Product Description

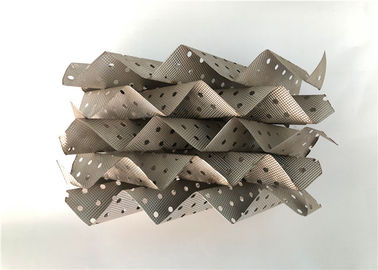

Metal Structured Packing (Metal Perforated Plate Corrugated Packing) is made of perforated plate with channel corrugation on surface,and remains structured feature of metal wire gauze packing. It strengthens uniform liquid distribution and surface wetting ability, which increase mass transfer efficiency.



Material



Metal perforated plate corrugated packing is available in a wide range of materials, including stainless steels, 304, 316, 316L, carbon steels, Aluminum, copper bronze etc. Other materials are available on request.



 Product Specification



Model Surface area
(m2/m3)
Bulk density
(kg/m3)
Free volume
(%)
Obl.
angle
Δ P
(Pa/plate)
Theo. plate
(piece/m)
125Y 125 100 98 450 200 1~1.2
250Y 250 200 97 450 300 2~2.5
350Y 350 280 94 450 350 3.5~4
250X 250 200 97 300 180 1.6~2
350X 350 280 94 300 230 2.3~2.8
500X 500 360 92 300 280 2.8~3.2



Product Features

  1. High separation efficiency. Since it has much larger specific surface area compared to random packing.
  2. Low pressure drop, which leads to reduce energy consumption largely.
  3. Large flexibility, and scale effect is not obvious.
  4. Suitable for all tower diameters.

 Product Application



Perforated plate corrugated packing with the wide range of applications.
Diameter: 0.1-12m; Pressure: Vacuum to high pressure;
Liquid load: 0.2 to more than 300 m3/m2. H;



They are widely used in separating heat sensitive materials,such as in vacuum fraction processes in the petroleum,chemistry,flavour factory and medicine industries. Thy can also be used in isotope separation.



Packing



Large Flexibility Metal Tower Packing Diameter 0.1-12m 125 Y Low Energy Consumption 0
