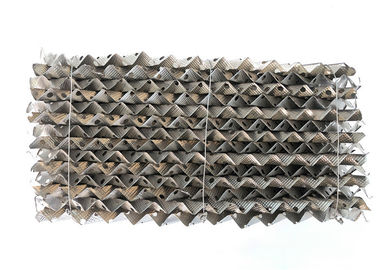

Light Weight Distillation Column Packing Material Acid Alkali Function Large Void Space

Light Weight Distillation Column Packing Material Acid Alkali Function Large Void Space
Light Weight Distillation Column Packing Material Acid Alkali Function Large Void Space Light Weight Distillation Column Packing Material Acid Alkali Function Large Void Space

Large Image :  Light Weight Distillation Column Packing Material Acid Alkali Function Large Void Space

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 20 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Keyword: Metal Wire Gauze Structured Packing
Dimensions: 125Y 250Y 350Y 500 700 Etc Surface Area: 250㎡/m3,500㎡/m3,700㎡/m3
Chemical Composition: 99.95%Min Usage: Mass Transfer Media
High Light:

distillation packing

,

structured tower packing

SS Metal Tower Packing Metal Structured Packing For Distribution Of Gas-Liquid


Product Description

Structured packing is a range of materials that are specially designed for use in distillation and absorption columns, as well as chemical reactors. They usually consist of thin corrugated metal plates or gauzes, designed to force fluids on complicated paths throughout the column. The design is intended to ultimately produce a large surface area for contact between different phases.
Structured packing is made from a variety of materials including corrugated sheets of perforated embossed metal, plastic, or wire gauze. The resulting product is an open honeycomb with inclined flow channels producing a high surface area coupled with a low gas flow resistance. Enhancements are often chosen to maximize liquid spreading which are ideal for applications with low pressure and irrigation rates.


 Product Specification



ModelSurface area
(m2/m3)
Bulk density
(kg/m3)
Free volume
(%)
Obl.
angle
Δ P
(Pa/plate)
Theo. plate
(piece/m)
125Y125100984502001~1.2
250Y250200974503002~2.5
350Y350280944503503.5~4
250X250200973001801.6~2
350X350280943002302.3~2.8
500X500360923002802.8~3.2


Product Features

1. No wall flow technology,wall flow below 2%.
2.acid&alkali function,long service life
3. Uniform contacting surface area
4. large void space, thin wall,small resistance
5. Large specific surface, high void ratio and light weight.
6. Small gas path obliquity regular, low pressure drop.
7. Good radial diffusion, sufficient gas-liquid contact.



 Product Application



  • Glycol upgrading
  • Biodiesel application
  • Methaan upgrading
  • NH3 applications
  • CO2 separation



Types



Light Weight Distillation Column Packing Material Acid Alkali Function Large Void Space 0


Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
