Product Details:
Payment & Shipping Terms:
|
| Material: | SS304,304L,410,316,316L | Keyword: | Metal Wire Gauze Structured Packing |
|---|---|---|---|
| Dimensions: | 125Y 250Y 350Y 500 700 Etc | Surface Area: | 250㎡/m3,500㎡/m3,700㎡/m3 |
| Chemical Composition: | 99.95%Min | Usage: | Mass Transfer Media |
| Sample: | For Free | ||
| Highlight: | structured tower packing,stainless steel packing |
||

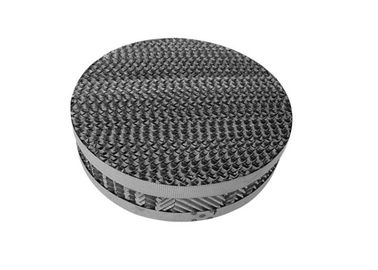

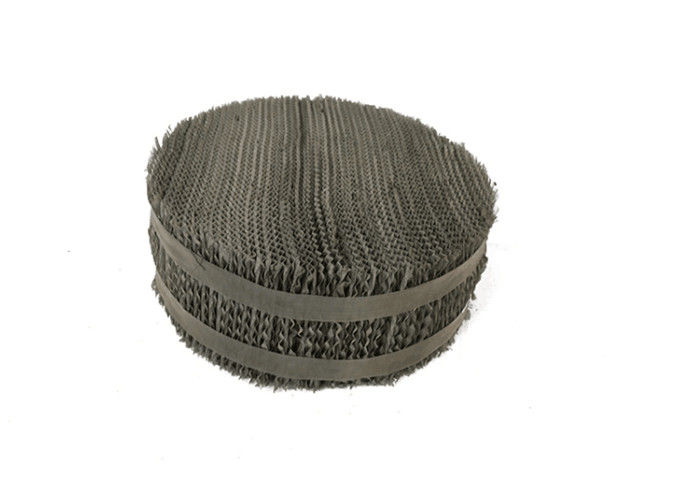

Mass Transfer Metal Tower Packing Structured Column Packing For Petrochemical
Product Description
Structured packing is a range of materials that are specially designed for use in distillation and absorption columns, as well as chemical reactors. They usually consist of thin corrugated metal plates or gauzes, designed to force fluids on complicated paths throughout the column. The design is intended to ultimately produce a large surface area for contact between different phases.
Structured packing is made from a variety of materials including corrugated sheets of perforated embossed metal, plastic, or wire gauze. The resulting product is an open honeycomb with inclined flow channels producing a high surface area coupled with a low gas flow resistance. Enhancements are often chosen to maximize liquid spreading which are ideal for applications with low pressure and irrigation rates.
Product Specification
| Model | Wire Gauze Structured Packing | |||||||
| Material | SS 304, 304L, 410, 316, 316L, etc. | |||||||
| Model | Specific surface | Bulk density | Void ratio | Obl. | ΔP | Theo. plate | HETP/mm | F factor m/s (kg/m3)0.5 |
| (m2/m3) | (kg/m3) | (%) | angle | (Pa/plate) | (piece/m) | |||
| 250AX | 250 | 125 | 95 | 30 | 100-400 | 2.5~3 | 100 | 2.5-3.5 |
| 500BX | 500 | 250 | 90 | 30 | 400 | 4~5 | 200 | 2.0-2.4 |
| 700CY | 700 | 350 | 85 | 45 | 600-700 | 8~10 | 333-400 | 1.5-2.0 |
| Typical Application | Absorption, scrubbing and stripping services | |||||||
| Package : | Carton box; wooden box | |||||||
| Warranty: | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 | |||||||
| b) Offer lifetime consultation on problems occurred | ||||||||
Product Features
Product Application
It is widely used in the reactors in fine chemical industry, petrochemical industry, and fertilizer industry as mass transfer media and often used in difficult separation and the vacuum distillation of heat content, atmospheric distillation and absorption process.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
