SS304 Structured Tower Packing 250㎡/m3 for Mass Transfer

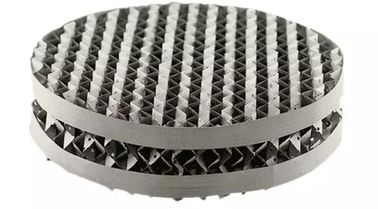

Large Image : SS304 Structured Tower Packing 250㎡/m3 for Mass Transfer

Product Details:

Place of Origin:	Hebei,China
Brand Name:	YuanHai
Certification:	ISO 9001
Model Number:	YH-06

Payment & Shipping Terms:

Minimum Order Quantity:	10 cubic meters
Price:	USD200-2500/m³
Packaging Details:	wood box or customer's request
Delivery Time:	3-10 days
Payment Terms:	T/T
Supply Ability:	500 Cubic Meter/Cubic Meters per Month

Contact Now

Detailed Product Description

Material:	SS304,304L,410,316,316L	Dimensions:	125Y 250Y 350Y 500 700 Etc
Surface Area:	250㎡/m3,500㎡/m3,700㎡/m3	Chemical Composition:	99.95%Min
Usage:	Mass Transfer Media	Package:	Carton Box
Feature:	High Mass Transfer	Brand Name:	YuanHai
Port:	Xingang	Delivery Time:	3-7 Days After Received The Deposit
Highlight:	structured tower packing , stainless steel packing

High Performance Durable Stainless Steel Packing, Structured Packing Column

High Performance SS 304 Structured Tower Packing for Separation & Distillation

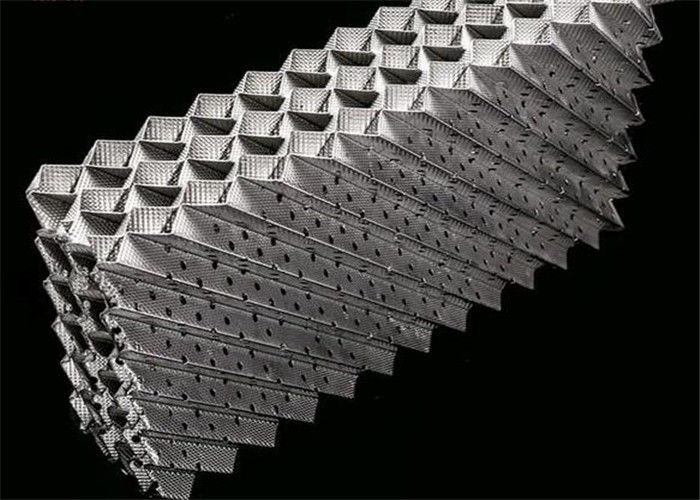

Structured packing is a filler with uniform geometry arranged and neatly piled in the tower. It is widely used in many fields due to its large surface area, low pressure drop, uniform fluid distribution, and excellent heat and mass transfer efficiency.

Our structured packing is available in knitted, perforated, and expanded types including corrugated grid packing, expanded metal prick corrugated plate packing, metal perforated plate corrugated packing, wire gauze structured packing, woven structured packing, and sheet metal packing. It can be designed in alkali-resistant and acid-resistant materials.

Product Specification

Type	Specific Area (m²/m³)	Void (m³/m³)	F factor	Theoretical plate No/m	Pressure drop mmHg/m
ST-A-125X/Y	125	98.5%	3	270	94
ST-A-250X/Y	250	97%	2.6	230	96
ST-A-350X/Y	350	95%	2	150	97
ST-A-450X/Y	450	93%	1.5	120	98
ST-A-500X/Y	500	92%	1.4	87	99

Product Features

Uniform distribution of gas-liquid
Low resistance
High flow capacity
Long service life
High efficiency

Product Applications

Mass transfer of temperature sensitive chemical products
Proper lateral distribution of liquids and gases
Solvent recovery
Batch and continuous distillation
Low liquid loading systems
Providing highest theoretical stages per meter of packing height
Reducing liquid hold up
Economizing operating loads of vessels
