SS 316Metal Tower Packing Large Contacting Surface Area Gas Liquid Distribution

SS 316Metal Tower Packing Large Contacting Surface Area Gas Liquid Distribution
SS 316Metal Tower Packing Large Contacting Surface Area Gas Liquid Distribution SS 316Metal Tower Packing Large Contacting Surface Area Gas Liquid Distribution

Large Image :  SS 316Metal Tower Packing Large Contacting Surface Area Gas Liquid Distribution

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 10 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Chemical Composition: 99.95%Min
Usage: Mass Transfer Media Package: Carton Box
Feature: High Mass Transfer Brand Name: YuanHai
Port: Xingang Delivery Time: 3-7 Days After Received The Deposit
High Light:

distillation packing

,

structured tower packing

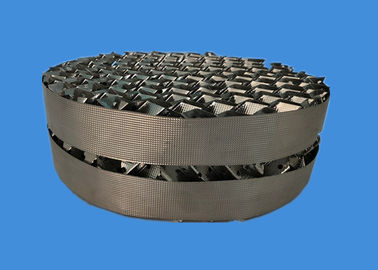

Stainless Steel 316 Metal Structured Tower Packing For Distribution Of Gas-Liquid




Product Specification



Product Name Metal Structured Tower Packing
Model EYZL70221E1
Material PP/PVC/Stainless steel/Carbon steel/Aluminum/Copper/Ceramic
Life Span >3years
Plastic Corrugated Plate Packing(X:Incline angl 30°, Y:Incline angle 45°)
Type

Surface Area

m²/m³

Volid

%

Pressure Drop

Mpa/m

Packing Density

kg/m

Theo Plate

Liquid Loading

m³/m².hr

Max F Factor

m-1

SB-125Y 125 98 2*10-4 45 1-2 0.20-100 3
SB-250Y 250 97 3*10-4 60 2-2.5 0.20-100 2.6
SB-350Y 350 94 2*10-4 80 3.5-4 0.20-100 2
SB-500Y 500 92 3*10-4 130 4-4.5 0.20-100 1.8
SB-125X 125 98 1.4* 10-4 40 0.8-1.9 0.20-100 3.5
SB-250X 250 97 1.8*10-4 55 1.5-2 0.20-100 2.8
SB-350X 350 94 1.3*10-4 75 2.3-2.8 0.20-100 2.2
SB-500X 500 92 1.8*10-4 120 2.8-3.2 0.20-100 2


Product Description



Structured packing include knitted structured packing,wire gauge structured packing,metal perforated plate corrugated packing.

Knitted structured packing is made from multiple strands of fine wire that are knitted together in a tubular pattern and then crimped and coiled or layered to provide a three dimensional structure of peak and valleys. The multi-strand fine wire provides a high surface area. This structured packing is suited for applications that demand high separation efficiency with a lower pressure drop, such as, high purity product distillations and solvent and byproduct recovery.

Wire gauge structured packing is manufactured from specially woven wire gauze that is pressed into smooth plates, uniformly perforated, corrugated and stacked with corrugations in alternate directions. This construction promotes intimate gas/liquid contact. The woven structured packing with of high separation efficiency, is used in pharmaceuticals and fine chemicals.

Metal perforated plate corrugated packing is made from perforated plate with channel corrugation on surface. It is formed from vertical sheets of corrugated metal with the angle of the corrugation reversed in adjacent sheets to form an open structure with inclined flow channel. The packing has advantages such as high capacity, low resistance, high mass-transfer efficiency and strong resistance to fouling. It is widely used in unit operations like rectification, absorption and extraction.

Product Advantages



  • Low pressure drop.
  • Large contacting surface area.
  • High separation and filtering efficiency.
  • High capacity.
  • Reduced liquid hold-up performance.
  • Corrosion and high temperature resistance.



 Product Application



  • Fine chemicals.
  • Solvent recovery.
  • Chemical product refining.
  • Atmospheric rectification.
  • Vacuum rectification.



Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
