Product Details:
Payment & Shipping Terms:
|
| Material: | SS304,304L,410,316,316L | Feature: | High Mass Transfer |
|---|---|---|---|
| Name: | Stainless Steel Packing | Application: | Mass Transfer, Absorption/Separation Equipment |
| Description: | Mass Transfer And Separation | Chemical Composition: | 99.95%Min |
| Shape: | Round，Square | Model Number: | SM125Y, SM250Y. SM350Y, SM450Y |
| Highlight: | structured packing column,structure packing in distillation |
||

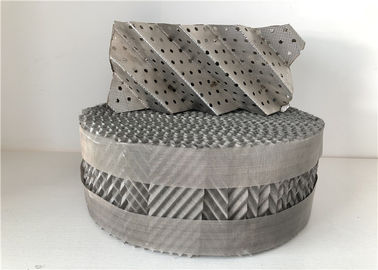

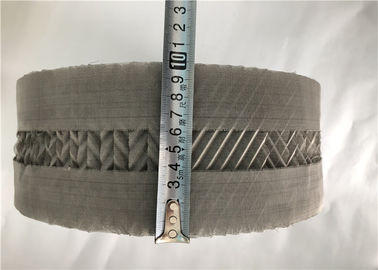

High Capacity Metal Structured Packing Round / Square Shape 125Y 250Y For Tower
Product Description
Corrugated structured packing, Metal orifice plate corrugated packing, Structured Tower Packing, desulfurize tower packing, metal structured packing, Perforated Corrugated Plate For Air Seperation, Metal Perforated Plate Corrugated structured Packing, structured Packing for distillation tower, Metal pore plate cockles packings, metal perforated plate corrugated packing.
It has been applicated widely in the tower of the field of fine chemical, flavour factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.
Product Specification
| Model | Metal Perforated Plate Corrugated Packing | |||||||
| Material | SS 304, 304L, 410, 316, 316L, etc. | |||||||
| Model | Specific surface | Bulk density | Void ratio | Obl. | ΔP | Theo. plate | HETP/mm | F factor m/s (kg/m3)0.5 |
| (m2/m3) | (kg/m3) | (%) | angle | (Pa/plate) | (piece/m) | |||
| 250AX | 250 | 125 | 95 | 30 | 100-400 | 2.5~3 | 100 | 2.5-3.5 |
| 500BX | 500 | 250 | 90 | 30 | 400 | 4~5 | 200 | 2.0-2.4 |
| 700CY | 700 | 350 | 85 | 45 | 600-700 | 8~10 | 333-400 | 1.5-2.0 |
| Typical Application | Absorption, scrubbing and stripping services | |||||||
| Package : | Carton box; wooden box | |||||||
| Warranty: | a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 | |||||||
| b) Offer lifetime consultation on problems occurred | ||||||||
Product Advantage
(1) High capacity.
(2) High separation efficiency.
(3) Large flexibility, and scale effect is not obvious.
(4) Strong resistance to corrosion of acid and alkali, especially to H2S, naphthenic
acid and Cl- .
Metal structured packing is available in several designs
1. Smooth or textured surface.
2. Perforated or imperforate surface.
3. X- or Y-design with 30° or 45° corrugation angles.
4. N (standard model) or S (high performance model).
Metal structured packing are available in a wide range of materials such as such as stainless steel (410, 304, 304L, 316, 316L) ,carbon steel ,aluminum, bronze and other alloy etc.
Metal structured packing include metal perforated plate corrugated packing, metal wire gauze corrugated packing, metal rolled pore plate corrugated packing and metal gauze packing.
Product Application
Perforated plate corrugated packing with the wide range of applications.
Diameter: 0.1-12m; Pressure: Vacuum to high pressure;
Liquid load: 0.2 to more than 300 m3 / m2.h;
System: Ethyl benzene/ styrene, Fatty acid, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
Contact Person: Amanda
Tel: 008618812186661
Fax: 86-318-7615090
