Metal Perforated Corrugated Stainless Steel Packing Separation Iso Certification

Metal Perforated Corrugated Stainless Steel Packing Separation Iso Certification
Metal Perforated Corrugated Stainless Steel Packing Separation Iso Certification Metal Perforated Corrugated Stainless Steel Packing Separation Iso Certification Metal Perforated Corrugated Stainless Steel Packing Separation Iso Certification

Large Image :  Metal Perforated Corrugated Stainless Steel Packing Separation Iso Certification

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 10 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Name: Stainless Steel Packing
Application: Absorption, Scrubbing, And Stripping Services Package: Carbon Box Or Wooden Box
Certification: ISO 9001 Type No.: 250AX,500BX,700CY
Keyword: Metal Wire Gauze Structured Packing Export Markets: America, Europe, Aisa
High Light:

distillation packing

,

structured tower packing



Knitted Metal Tower Packing Metal Perforated Corrugated Packing For Separation




Metal perforated corrugated packing properties:



The metal perforated plate corrugated packing is manufactured by a perforated plate with rills on the surface thereof while keeping the structural characteristics of the metal screen corrugated packing. The uniformity of liquid and wetting property of the packing are increased and the mass transfer efficency is raised



Metal perforated corrugated packing Characteristics:



a. Large specific surface, high void ratio and light weight.

b. Small gas path obliquity regular, low pressure drop.
c. Good radial diffusion, sufficient gas-liquid contact.



Product Detail



Product name: Metal Orifice Corrugated Packing Brand Name: TIANMA
Size: 450Y,650Y Place of Origin: Pingxiang,Jiangxi, China (Mainland)
Dimensions: h/mm:4.5 -6.5mm ;t/mm :0.1mm Material: SS304,SS316,SS316L,210,410
Bulk Density: 110-165kg/m3 Usage: Absorption/Scrubbing/Stripping/Tower Packing
Surface area: 454-651m2/m3 Certificate: GB/T19001-2016 ISO9001-2015
Pressure drop: 1.52*10-4 Mpa/m Packing: Jumbo bag/Carton box/wooden pallet
Liquid load: 0.2-.00M3/M2.H Warranty: Offer lifetime consultation on
Purity: 0.9999 Sample: Free sample
Standard: HG/T 4374-2012 Mini Order: 2 Cubic Meter
void fraction: >97.6 % Service: OEM Manufacturing
Appearance: Rectifying column Terms of delivery: EXW, FOB, CFR, CIF



 Product Parameters


Item
Surface Aream2/m³
Free Volume
%
P
Pa/m
Theo. plate
pc/plate
F factor
m/s(kg/m³)0.5
SB-125Y
125
98
2x10-4
1-1.2
3
SB-250Y
250
97
2x10-4
2-2.5
2.6
SB-350Y
350
94
2x10-4
3.5-4
2
SB-500Y
500
92
3x10-4
4-4.5
1.8
SB-125X
125
98
1.4x10-4
0.8-0.9
3.5
SB-250X
250
97
1.8x10-4
1.6-2
3.5
SB-350X
350
94
1.3x10-4
2.3-2.8
2.2
SB-500X
500
92
1.8x10-4
2.8-3.2
2




Product Feature



1.No wall flow technology,wall flow below 2%.
2.application:exactness separation, air separation, low temperature separation
3.acid&alkali function,long service life
4.Uniform contacting surface area
5.large void space, thin wall,small resistance
6. Large specific surface, high void ratio and light weight.
7. Small gas path obliquity regular, low pressure drop.
8. Good radial diffusion, sufficient gas-liquid contact.



 Product Application



1. Atmospheric rectification and vacuum rectification,application fields similar to metal wire gauze packing and special technology such as requiring titanium or aluminum gauze packing.

2. Substituting for random packing and revamping some tray towers in approprite conditions.

3. Absorption reqiring low resisitance and distillation with heat pump.



Production Show

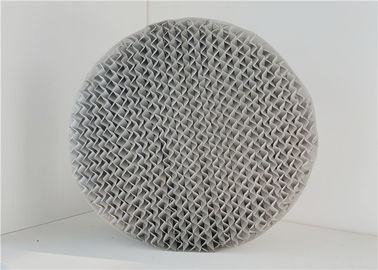

Metal Perforated Corrugated Stainless Steel Packing Separation Iso Certification 0

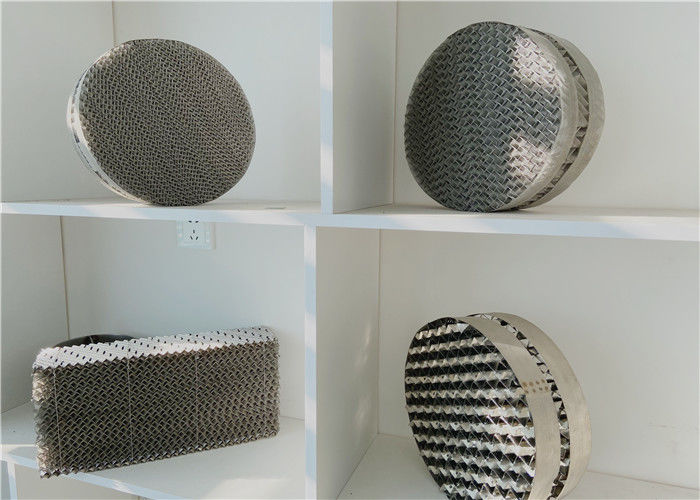

Metal Perforated Corrugated Stainless Steel Packing Separation Iso Certification 1



Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
