Wire Gauze Corrugated Metal Structured Packing , Structured Packing Column

Wire Gauze Corrugated Metal Structured Packing , Structured Packing Column
Wire Gauze Corrugated Metal Structured Packing , Structured Packing Column Wire Gauze Corrugated Metal Structured Packing , Structured Packing Column

Large Image :  Wire Gauze Corrugated Metal Structured Packing , Structured Packing Column

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-15
Payment & Shipping Terms:
Minimum Order Quantity: 10 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Size: Dia:125Y/250Y/350Y/450Y
Feature: High Mass Transfer Certificate: ISO9001:2008
Application: Mass Transfer, Absorption/Separation Equipment Description: Mass Transfer And Separation
Chemical Composition: 99.95%Min Specific Surface: 125-500 M2/m3
High Light:

structured packing column

,

structure packing in distillation





SS 304 304L Metal Wire Gauze Corrugated Structured Packing For Separation Tower





Product Description



Features of metal structured packing



1. No wall flow technology,wall flow below 2%.
2. application:exactness separation, air separation, low temperature separation

3. acid&alkali function,long service life
4. Uniform contacting surface area
5. large void space, thin wall,small resistance

6. patented product

7. Large specific surface, high void ratio and light weight.

8. Small gas path obliquity regular, low pressure drop.
9. Good radial diffusion, sufficient gas-liquid contact.



Materials of metal structured packing



Metal structured packing is available in a wide range of materials; include stainless steels, 304, 316, 316L, Carbonsteel. Aluminium, copper bronze etc. Further materials available on request.


Product Specification



Model Perforated Plate Corrugated Packing
Material SS 304, 304L, 410, 316, 316L, etc.
Model 125Y 250Y 350Y 500Y 125X 250X 350X 500X
Specific surface (m2/m3) 125 250 350 500 125 250 350 500
Bulk density (kg/m3) 100 200 280 360 100 200 280 360
Void ratio (%) 98 97 94 92 98 97 94 92
Obl. angle 45° 45° 45° 45° 30° 30° 30° 30°
P (Pa/plate) 200 300 350 400 140 180 230 280
Theo. plate (piece/m) 1~1.2 2~2.5 3.5~4 4~4.5 0.8~0.9 1.6~2 2.3~2.8 2.8~3.2

Typical Application Absorption, scrubbing and stripping services

Package : Carton box;
M.O.Q: 1 CBM
Payment Terms: T/T; L/C; PayPal; West Union
Warranty: a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995
b) Offer lifetime consultation on problems occurred

Container 20GP 40GP 40HQ Normal order Minimum Order Sample order
Quantity 25 CBM 54 CBM 68 CBM <25 CBM 1 CBM < 5 pcs
Delivery Time 7 days 14 days 20 days 7 Days 3 days Stock
Comments: Customized making is allowed.



Application



Metal structured packing is widely used in the reactors in fine chemical industry, petrochemical industry, and fertilizer industry as mass transfer media.

it is Often used in difficult separation and the vacuum distillation of heat content, atmospheric distillation and absorption process.



Solvent recovery

Batch and continuous distillation

Low liquid loading systems

Reducing liquid hold up

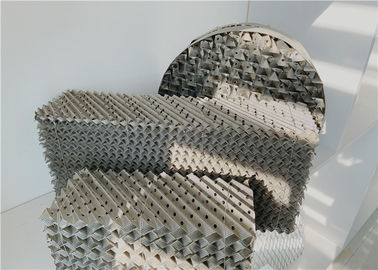

Metal Structured Packing Image



Wire Gauze Corrugated Metal Structured Packing , Structured Packing Column 0



Wire Gauze Corrugated Metal Structured Packing , Structured Packing Column 1
