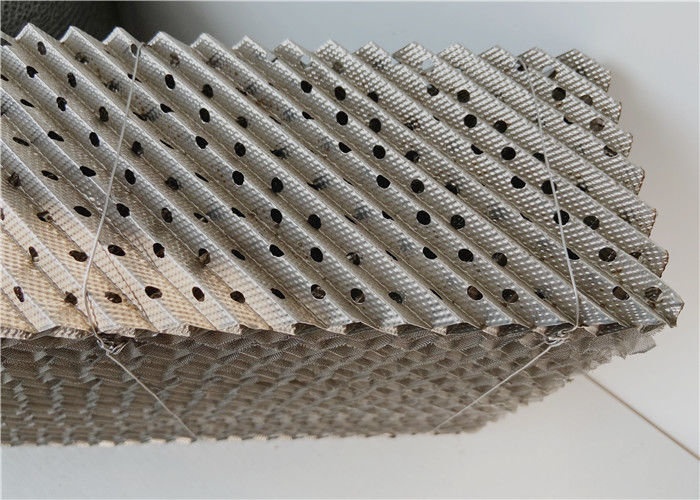

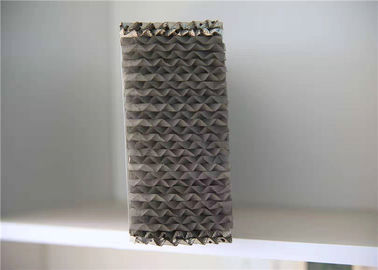

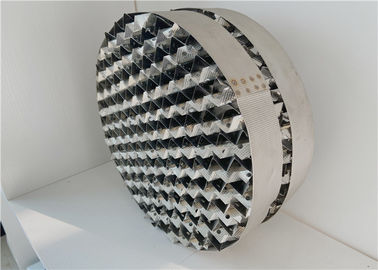

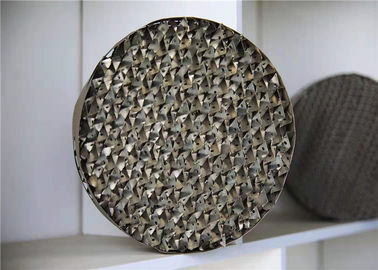

304 Structured Column Metal Tower Packing For Distillation And Separation Tower

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

304 Structured Column Metal Tower Packing For Distillation And Separation Tower

304 Structured Column Metal Tower Packing For Distillation And Separation Tower
304 Structured Column Metal Tower Packing For Distillation And Separation Tower 304 Structured Column Metal Tower Packing For Distillation And Separation Tower 304 Structured Column Metal Tower Packing For Distillation And Separation Tower 304 Structured Column Metal Tower Packing For Distillation And Separation Tower

Large Image :  304 Structured Column Metal Tower Packing For Distillation And Separation Tower

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-03
Payment & Shipping Terms:
Minimum Order Quantity: 30 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-8days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Certificate: ISO9001:2008
Chemical Composition: 99.95%Min Model Number: SM125Y, SM250Y. SM350Y, SM450Y
Dimensions: Customer's Demands Type: 125Y, 250Y, 350Y, 700Y Etc
Application: Distillation, Absorption Desportion Package: Carton Box, Wooden Box For Structured Packing
High Light:

distillation packing

,

structured tower packing



304 Structured Column Metal Tower Packing For Distillation And Separation Tower





Product Description



Metal Wire Gauze Packing is characteristic of good low-load properties, large number of plates per meter in theory, and the number of plates will decrease with gas load increasing. The packing can meet the demand for accurate, large-scale, high vacuum distilling apparatus, and provide convenient conditions for distilling separation of some system difficult for separating, heat-variable system and high-purity products.


Product Specification



Product Name Metal Structured Tower Packing
Model EYZL70221E1
Material PP/PVC/Stainless steel/Carbon steel/Aluminum/Copper/Ceramic
Life Span >3years
Plastic Corrugated Plate Packing(X:Incline angl 30°, Y:Incline angle 45°)
Type

Surface Area

m²/m³

Volid

%

Pressure Drop

Mpa/m

Packing Density

kg/m

Theo Plate

Liquid Loading

m³/m².hr

Max F Factor

m-1

SB-125Y 125 98 2*10-4 45 1-2 0.20-100 3
SB-250Y 250 97 3*10-4 60 2-2.5 0.20-100 2.6
SB-350Y 350 94 2*10-4 80 3.5-4 0.20-100 2
SB-500Y 500 92 3*10-4 130 4-4.5 0.20-100 1.8
SB-125X 125 98 1.4* 10-4 40 0.8-1.9 0.20-100 3.5
SB-250X 250 97 1.8*10-4 55 1.5-2 0.20-100 2.8
SB-350X 350 94 1.3*10-4 75 2.3-2.8 0.20-100 2.2
SB-500X 500 92 1.8*10-4 120 2.8-3.2 0.20-100 2



Product Advantage

  • Low pressure drops
  • Higher capacities
  • Higher efficiencies
  • Reduced liquid hold up
  • Lower energy consumption

Product Application



Perforated plate corrugated packing with the wide range of applications.

Diameter: 0.1-12m; Pressure: Vacuum to high pressure;

Liquid load: 0.2 to more than 300 m3 / m2.h;

System: Ethyl benzene/ styrene, Fatty acid, cyclohex anone/ cyclohexanol, caprolaction, etc, Absorption desorption.



Production Process



304 Structured Column Metal Tower Packing For Distillation And Separation Tower 0


Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
