Square Welded Gabion Wire Mesh High Tensile 130 * 160mm For Condenser

Square Welded Gabion Wire Mesh High Tensile 130 * 160mm For Condenser
Square Welded Gabion Wire Mesh High Tensile 130 * 160mm For Condenser Square Welded Gabion Wire Mesh High Tensile 130 * 160mm For Condenser Square Welded Gabion Wire Mesh High Tensile 130 * 160mm For Condenser

Large Image :  Square Welded Gabion Wire Mesh High Tensile 130 * 160mm For Condenser

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH006
Payment & Shipping Terms:
Minimum Order Quantity: 50sets
Price: Negotiable
Packaging Details: fold and press the gabion into bundle, then wrapped with 2-4 steel strips
Delivery Time: 3-7days
Payment Terms: T/T
Supply Ability: 1000 Sets per Week
Detailed Product Description
Material: Galvanized Wire/low Carbon Wire Hole Shape: Hexagonal, Square
Wire Gauge: 2.0-5.0mm Surface Treatment: Zinc Plated/ Hot Dip Galvanized
Feature: Easily Assembled Exterior Dimension: 1030LX840WX850H (mm)
Interior Dimension: 950LX760WX700H (mm) Loading Capacity: 1300 Kg
High Light:

chicken wire mesh

,

hexagonal wire mesh



Welded Gabion Wire Mesh High Tensile Gabion Box 130 * 160mm For Condenser

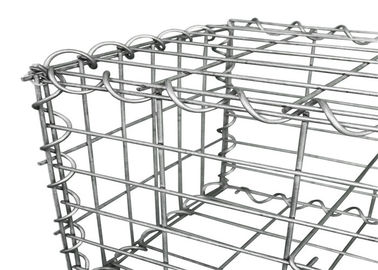

Welded Gabion Box Description



Welded gabion box is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Welded Gabion box is designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.



Welded Gabion Box Specification



1. Materials: hot dipped galvanized wire or PVC coated galvanized wire, Galfan coated wire ( Zinc 95% + 5% Aluminum).

2. Zinc coating : 225-275g/m2.

3. Tensile strength between 380N/mm2 -- 500N/mm2.

4. Elongation≥ 12%.

5. Wire Diameter:2.4-3.5mm

6. Mesh Size: 50x70mm, 50x100mm, 80x100mm or according to customers’ requirements.

7. Box Size:0.5x0.5x1m, 1x1x1m, 1x1x2m, 1x1x3m, 1x1x4m, 2x1x0.5m, 4x1x0.5m.



Nominal Box sizes (m) Mesh size(mm) No. of diaphragms (no.) Capacity per box (m3)
1.0 × 1.0 × 0.5

50x50



75x75



50x100



100x100

Nil 0.50
1.0 × 1.0 × 1.0 Nil 1.00
1.5 × 1.0 × 0.5 Nil 0.75
1.5 × 1.0 × 1.0 Nil 1.50
2.0 × 1.0 × 0.5 1 1.00
2.0 × 1.0 × 1.0 1 2.00
3.0 × 1.0 × 0.5 2 1.50
3.0 × 1.0 × 1.0 2 3.00
4.0 × 1.0 × 0.5 3 2.00
4.0 × 1.0 × 1.0 3 4.00





Welded Gabion Box Application



Welded gabion box is widely used for the control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil;protection engineering of seaside area and retaining wall structures; hydraulic structures,dams and culverts; coastal embankment works; architectural feature retaining walls.The main application as follows:



a. Control and guide of water or flood

b. Flood bank or guiding bank

c. Preventing of rock breaking

d. Water and soil protection

e. Bridge protection

f. Strengthening structure of soil

g. Protection engineering of seaside area



Square Welded Gabion Wire Mesh High Tensile 130 * 160mm For Condenser 0



Company Profile



1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.

2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.

3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.

4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.

5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.

6. Is it sample available?
Yes, small pieces of sample are available in our company.



Square Welded Gabion Wire Mesh High Tensile 130 * 160mm For Condenser 1
