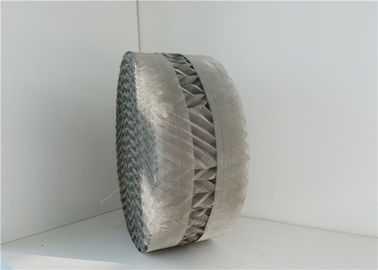

SS Column Packing , Metal Tower Packing For Fractional Desorption 125Y

SS Column Packing , Metal Tower Packing For Fractional Desorption 125Y
SS Column Packing , Metal Tower Packing For Fractional Desorption 125Y SS Column Packing , Metal Tower Packing For Fractional Desorption 125Y

Large Image :  SS Column Packing , Metal Tower Packing For Fractional Desorption 125Y

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-03
Payment & Shipping Terms:
Minimum Order Quantity: 20cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-8days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Model Number: 125Y, 250Y, 350Y, 700Y Etc
Application: Distillation, Absorption Desportion Package: Carton Box, Wooden Box
Feature: High Efficiency,low Pressure Drop Weave Style: Twill Weave
High Light:

distillation packing

,

structured tower packing



SS 304 Metal Tower Packing Column Packing Used For Fractional Desorption 125Y


Product Description

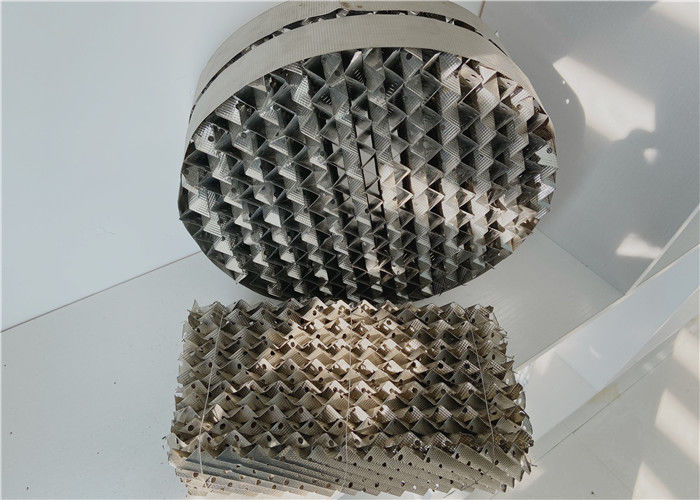

Metal structured packing is formed from thin corrugated metallic plates or wire gauze, which at uniform geometry arranged and neatly piled in the tower. Metal structured packing is widely used in absorption and distillation columns and chemical reactors. It has large surface area, low pressure drop, uniform fluids, heat and mass transfer efficiency and other advantages.

Metal Tower Packing is made from a variety of materials including corrugated sheets of perforated embossed metal, plastic, or wire gauze. The resulting product is an open honeycomb with inclined flow channels producing a high surface area coupled with a low gas flow resistance. Enhancements are often chosen to maximize liquid spreading which are ideal for applications with low pressure and irrigation rates.
Product Specification


Product Name Metal Tower Packing
Type

Surface Area

m²/m³

Volid

%

Pressure Drop

Mpa/m

Packing Density

kg/m

Theo Plate

Liquid Loading

m³/m².hr

Max F Factor

m-1

SB-125Y 125 98 2*10-4 45 1-2 0.20-100 3
SB-250Y 250 97 3*10-4 60 2-2.5 0.20-100 2.6
SB-350Y 350 94 2*10-4 80 3.5-4 0.20-100 2
SB-500Y 500 92 3*10-4 130 4-4.5 0.20-100 1.8
SB-125X 125 98 1.4* 10-4 40 0.8-1.9 0.20-100 3.5
SB-250X 250 97 1.8*10-4 55 1.5-2 0.20-100 2.8
SB-350X 350 94 1.3*10-4 75 2.3-2.8 0.20-100 2.2
SB-500X 500 92 1.8*10-4 120 2.8-3.2 0.20-100 2


Product Feature


Proper lateral distribution of liquids and gases

Batch and continuous distillation

Low liquid loading systems

Providing highest theoretical stages per meter of packing height

Economizing operating loads of vessels


Product Application

Metal plate corrugated packing with high flux, low resistance, high efficiency, the advantages of anti-blocking ability. In distillation, absorption, and extraction unit operation widely used, According to filler type, the minimum diameter of 80- 200mm, maximum diameter reached 13m, density of the liquid spray from 0.2-220m /m .hr, the pressure range from vacuum to high pressure. Is used in chemical, fertilizer, oil refining, petrochemical, natural gas and other industrial versatile and efficient structured packing. Theoretical plate number of the packing high flux, low pressure drop, low load, performance, operating flexibility, amplifying effect is not obvious.
Used in fine chemicals, spices, isomer separation, difficult to isolate system, heat-sensitive substances and products of high purity distillation, separation has significant results.
Company Profile

1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
