York Mesh 431 Demister Mist Eliminator Wear Resistance For Chemical Columns

York Mesh 431 Demister Mist Eliminator Wear Resistance For Chemical Columns
York Mesh 431 Demister Mist Eliminator Wear Resistance For Chemical Columns York Mesh 431 Demister Mist Eliminator Wear Resistance For Chemical Columns York Mesh 431 Demister Mist Eliminator Wear Resistance For Chemical Columns

Large Image :  York Mesh 431 Demister Mist Eliminator Wear Resistance For Chemical Columns

Product Details:
Place of Origin: Anping,Hebei,China
Brand Name: YH
Certification: ISO 9001:2015
Model Number: YH-431
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden Packed or as request
Delivery Time: 3 days after payment
Payment Terms: T/T
Supply Ability: 40000 Cubic Meters per month
Detailed Product Description
Material: Metal, 316L, Stainless Steel, Monel, Copper Thickness: 100mm-500mm Or As Your Request
Length: 200mm-1500mm, As Your Request Width: 100mm-4000mm Or As Your Request
Product Name: Mist Eliminator For Filter, Demister Wire Pad Weave Style: Knitted Weave, Plain Weave
Feature: Corrosion Resistance, High Mechanical Damping Characteristics Application: Chemical Industry, Gas Liquid Separation
High Light:

stainless steel mesh pad

,

mesh pad mist eliminator

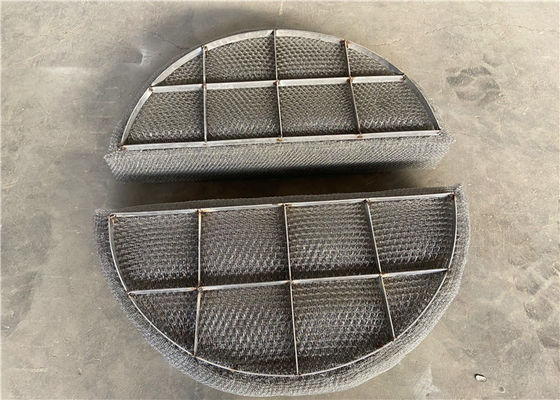

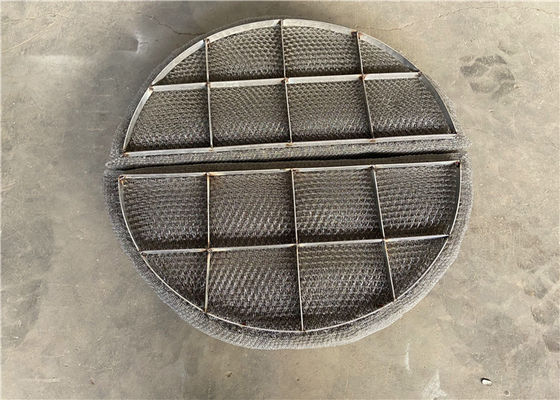

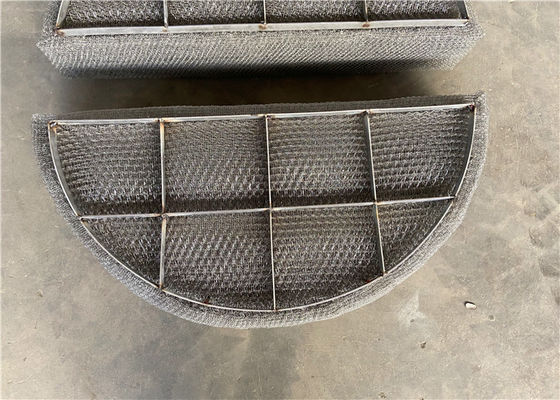

York Mesh 431 Demister Pad Mist Eliminator Wear Resistance For Chemical Columns





Demister Pad Description



Wire mesh demister is a kind of vapor-liquid separating device, It is used to remove the steam, entrained droplets in the processing equipment when the gas go through demister wire pad, with big surface, high demisting efficiency, and long working life, good resistance.

* Wire Mesh Demister Material : Stainless Steel 304L, 316L, Monel, Nickle, ect.

* Wire Diameter: 0.08--0.50mm, But 0.2mm-0.25mm are the most common wire diameter specifications.

* Width: 40mm, 80mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, etc. Less than 1000mm width are the most common width and are easy to make. Also available upon customers' request.



Demister Pad Specification



(1) standard type

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α (m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 150 Flat Wire Round Wire 0.981
0.1*0.4 0.23 475 320



(2) High Penetration

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 98 Flat Wire Round Wire 0.9875
0.1*0.4 0.23 313 217



(3) High Efficiency

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 182 Flat Wire Round Wire 0.977
0.1*0.28 0.19 626 484





Feature of demister pad (mist eliminator)



  • Simple structure, lightweight
  • Easy installation, operation and maintenance
  • 99% efficiency under general conditions and velocity (1~3mYork Mesh 431 Demister Mist Eliminator Wear Resistance For Chemical Columns 0c or higher)
  • Can be made of any material suitable for the given temperature and corrosion-resistance
  • Long service life
  • Fits in all process equipment



Appilcation



Demister Pad are designed to remove contaminants from process air emissions that evolve as mist droplets.

Demister pads in several materials like stainless steel 304, 316, polypropylene, ptfe and other features depending upon model and includeframes, metal grids etc.
These are used in pulp and paper, waste and water treatment, oil and gas, biofuel, geothermal power and other general industrial use.
