SS 316 Metal Structured Packing For Distribution Of Gas-Liquid 250Y 500Y
Metal Structured Packing Description
Metal structured packing is a range of materials that are specially designed for use in distillation and absorption columns, as well as chemical reactors. They usually consist of thin corrugated metal plates or gauzes, designed to force fluids on complicated paths throughout the column. The design is intended to ultimately produce a large surface area for contact between different phases.
Metal Structured Packing Specification
| Model |
Wire Gauze Structured Packing |
| Material |
SS 304, 304L, 410, 316, 316L, etc. |
| Model |
Specific surface |
Bulk density |
Void ratio |
Obl. |
ΔP |
Theo. plate |
HETP/mm |
F factor m/s (kg/m3)0.5 |
| (m2/m3) |
(kg/m3) |
(%) |
angle |
(Pa/plate) |
(piece/m) |
| 250AX |
250 |
125 |
95 |
30 |
100-400 |
2.5~3 |
100 |
2.5-3.5 |
| 500BX |
500 |
250 |
90 |
30 |
400 |
4~5 |
200 |
2.0-2.4 |
| 700CY |
700 |
350 |
85 |
45 |
600-700 |
8~10 |
333-400 |
1.5-2.0 |
| |
|
|
|
|
|
|
|
|
| Typical Application |
Absorption, scrubbing and stripping services |
| |
| Package : |
Carton box; wooden box |
| Warranty: |
a) By National Standard HG/T 4374-2012; HG/T 21556.1-1995 |
| b) Offer lifetime consultation on problems occurred |
Metal Structured Packing Features
1. High number of theoretical plates, large flux and low pressure drop;
2. Good performance with low working load, increased number of theoretical plates with the decrease of gas load, and there is almost no bottom limit of work load;
3. Large operation elasticity;
4. No obvious amplification effect;
Metal Structured Packing Application
Metal plate corrugated packing with high flux, low resistance, high efficiency, the advantages of anti-blocking ability. In distillation, absorption, and extraction unit operation widely used, According to filler type, the minimum diameter of 80- 200mm, maximum diameter reached 13m, density of the liquid spray from 0.2-220m /m .hr, the pressure range from vacuum to high pressure. Is used in chemical, fertilizer, oil refining, petrochemical, natural gas and other industrial versatile and efficient structured packing. Theoretical plate number of the packing high flux, low pressure drop, low load, performance, operating flexibility, amplifying effect is not obvious.
Used in fine chemicals, spices, isomer separation, difficult to isolate system, heat-sensitive substances and products of high purity distillation, separation has significant results.
This series packing widely used in distillation, absorption, regeneration, heat trasfer, stripping, flash evaporation, mist collecting,
Isomer Separation, Flavours Factory, Fine Chemical,Testing Tower and improvement of tower etc.

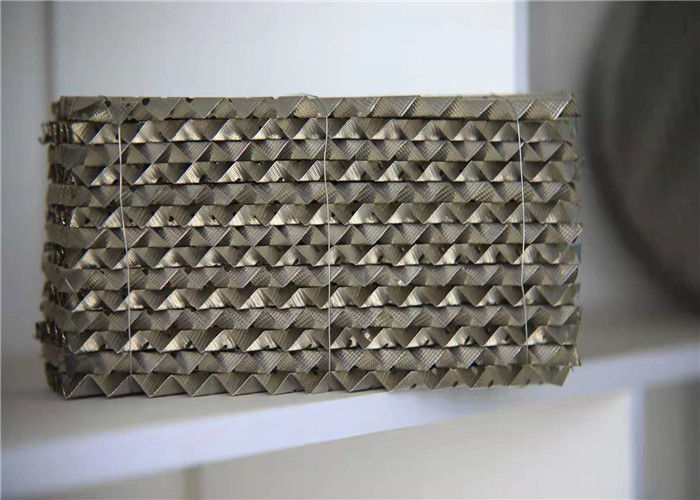

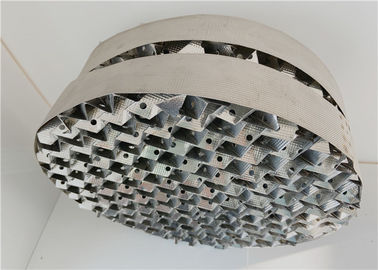

Metal Structured Packing Product Show
