Orifice Corrugated Stainless Steel Packing For Fractional Distillation

Orifice Corrugated Stainless Steel Packing For Fractional Distillation
Orifice Corrugated Stainless Steel Packing For Fractional Distillation Orifice Corrugated Stainless Steel Packing For Fractional Distillation

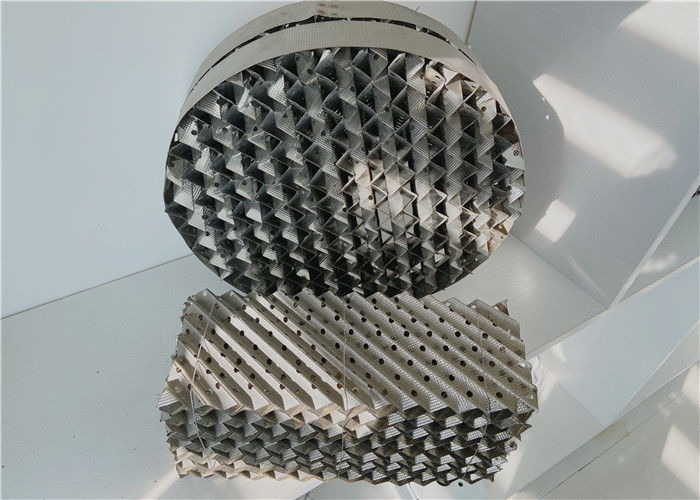

Large Image :  Orifice Corrugated Stainless Steel Packing For Fractional Distillation

Product Details:
Place of Origin: Hebei,China
Brand Name: YuanHai
Certification: ISO 9001
Model Number: YH-06
Payment & Shipping Terms:
Minimum Order Quantity: 5 cubic meters
Price: Negotiable
Packaging Details: wood box or customer's request
Delivery Time: 3-10 days
Payment Terms: T/T
Supply Ability: 500 Cubic Meter/Cubic Meters per Month
Detailed Product Description
Material: SS304,304L,410,316,316L Dimensions: 125Y 250Y 350Y 500 700 Etc
Chemical Composition: 99.95%Min Application: Absorption,scrubbing,stripping
Bulk Density: 125-350 Kg/m3 Surface Area: 250-700 M2/m3
High Light:

distillation packing

,

structured tower packing

SS 304 Metal Tower Packing Orifice Corrugated For Fractional Distillation


Metal Structured Tower Packing Description



Metal Tower Packing is characteristic of good low-load properties, large number of plates per meter in theory, and the number of plates will decrease with gas load increasing. The packing can meet the demand for accurate, large-scale, high vacuum distilling apparatus, and provide convenient conditions for distilling separation of some system difficult for separating, heat-variable system and high-purity products.



 Metal Structured Packing Specification



Product Name Metal Structured Tower Packing
Model EYZL70221E1
Material PP/PVC/Stainless steel/Carbon steel/Aluminum/Copper/Ceramic
Life Span >3years
Plastic Corrugated Plate Packing(X:Incline angl 30°, Y:Incline angle 45°)
Type

Surface Area

m²/m³

Volid

%

Pressure Drop

Mpa/m

Packing Density

kg/m

Theo Plate

Liquid Loading

m³/m².hr

Max F Factor

m-1

SB-125Y 125 98 2*10-4 45 1-2 0.20-100 3
SB-250Y 250 97 3*10-4 60 2-2.5 0.20-100 2.6
SB-350Y 350 94 2*10-4 80 3.5-4 0.20-100 2
SB-500Y 500 92 3*10-4 130 4-4.5 0.20-100 1.8
SB-125X 125 98 1.4* 10-4 40 0.8-1.9 0.20-100 3.5
SB-250X 250 97 1.8*10-4 55 1.5-2 0.20-100 2.8
SB-350X 350 94 1.3*10-4 75 2.3-2.8 0.20-100 2.2
SB-500X 500 92 1.8*10-4 120 2.8-3.2 0.20-100 2


Metal Structured Packing Features



Mass transfer of temperature sensitive chemical products
Proper lateral distribution of liquids and gases
Solvent recovery
Batch and continuous distillation
Low liquid loading systems
Providing highest theoretical stages per meter of packing height
Reducing liquid hold up
Economizing operating loads of vessels



Metal Structured Packing Application



Metal plate corrugated packing with high flux, low resistance, high efficiency, the advantages of anti-blocking ability. In distillation, absorption, and extraction unit operation widely used, According to filler type, the minimum diameter of 80- 200mm, maximum diameter reached 13m, density of the liquid spray from 0.2-220m /m .hr, the pressure range from vacuum to high pressure. Is used in chemical, fertilizer, oil refining, petrochemical, natural gas and other industrial versatile and efficient structured packing. Theoretical plate number of the packing high flux, low pressure drop, low load, performance, operating flexibility, amplifying effect is not obvious.

Used in fine chemicals, spices, isomer separation, difficult to isolate system, heat-sensitive substances and products of high purity distillation, separation has significant results.



This series packing widely used in distillation, absorption, regeneration, heat trasfer, stripping, flash evaporation, mist collecting,

Isomer Separation, Flavours Factory, Fine Chemical,Testing Tower and improvement of tower etc.

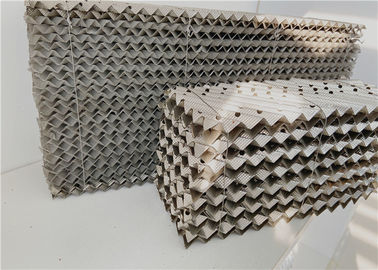

Metal Structured Packing Product Show



Orifice Corrugated Stainless Steel Packing For Fractional Distillation 0
