SS 304 Metal Tower Strucutured Packing For Distillation / Filtration 250Y 500Y
Metal Structured Tower Packing Description
Metal structured packing is formed from thin corrugated metallic plates or wire gauze, which at uniform geometry arranged and neatly piled in the tower. Metal structured packing is widely used in absorption and distillation columns and chemical reactors. It has large surface area, low pressure drop, uniform fluids, heat and mass transfer efficiency and other advantages.
Metal Tower packings is assembled by rolling small profile and bellows in metallic sheet surface. With the advantages of low resistance, uniform distribution of gas-liquid, high efficiency, big flux, not obvious enlarging effect, it is applied to vacuum or pressure operation.
Metal Structured Packing Specification
| Product Name |
Metal Structured Tower Packing |
| Model |
EYZL70221E1 |
| Material |
PP/PVC/Stainless steel/Carbon steel/Aluminum/Copper/Ceramic |
| Life Span |
>3years |
| Plastic Corrugated Plate Packing(X:Incline angl 30°, Y:Incline angle 45°) |
| Type |
Surface Area
m²/m³
|
Volid
%
|
Pressure Drop
Mpa/m
|
Packing Density
kg/m
|
Theo Plate |
Liquid Loading
m³/m².hr
|
Max F Factor
m-1
|
| SB-125Y |
125 |
98 |
2*10-4 |
45 |
1-2 |
0.20-100 |
3 |
| SB-250Y |
250 |
97 |
3*10-4 |
60 |
2-2.5 |
0.20-100 |
2.6 |
| SB-350Y |
350 |
94 |
2*10-4 |
80 |
3.5-4 |
0.20-100 |
2 |
| SB-500Y |
500 |
92 |
3*10-4 |
130 |
4-4.5 |
0.20-100 |
1.8 |
| SB-125X |
125 |
98 |
1.4* 10-4 |
40 |
0.8-1.9 |
0.20-100 |
3.5 |
| SB-250X |
250 |
97 |
1.8*10-4 |
55 |
1.5-2 |
0.20-100 |
2.8 |
| SB-350X |
350 |
94 |
1.3*10-4 |
75 |
2.3-2.8 |
0.20-100 |
2.2 |
| SB-500X |
500 |
92 |
1.8*10-4 |
120 |
2.8-3.2 |
0.20-100 |
2 |
Metal Structured Packing Application
Metal Structured Packing with high flux, low resistance, high efficiency, the advantages of anti-blocking ability. In distillation, absorption, and extraction unit operation widely used, According to filler type, the minimum diameter of 80- 200mm, maximum diameter reached 13m, density of the liquid spray from 0.2-220m /m .hr, the pressure range from vacuum to high pressure. Is used in chemical, fertilizer, oil refining, petrochemical, natural gas and other industrial versatile and efficient structured packing. Theoretical plate number of the packing high flux, low pressure drop, low load, performance, operating flexibility, amplifying effect is not obvious.
Used in fine chemicals, spices, isomer separation, difficult to isolate system, heat-sensitive substances and products of high purity distillation, separation has significant results.
Metal Structured Packing Features
1. High number of theoretical plates, large flux and low pressure drop;
2. Good performance with low working load, increased number of theoretical plates with the decrease of gas load, and there is almost no bottom limit of work load;
3. Large operation elasticity;
4. No obvious amplification effect;

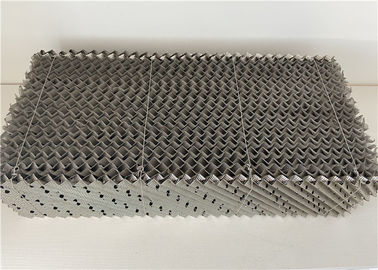

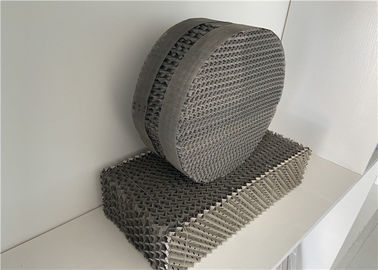

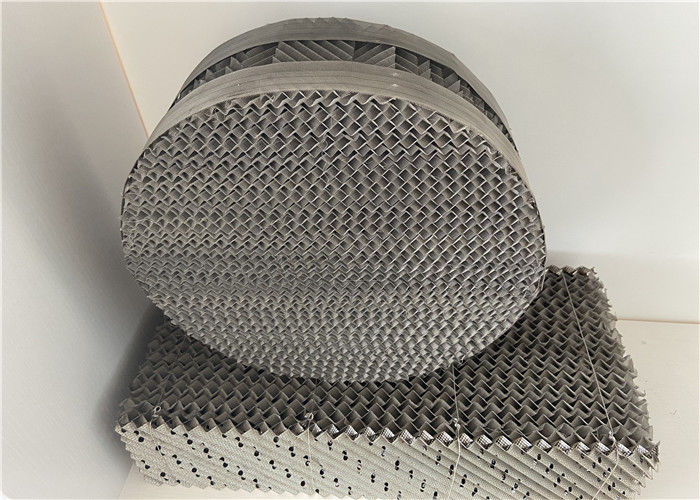

Metal Structured Packing Product Show
