SS 201 304 Air Purification Drift Eliminator Stainless Steel Mesh Pad 431

SS 201 304 Air Purification Drift Eliminator Stainless Steel Mesh Pad 431
SS 201 304 Air Purification Drift Eliminator Stainless Steel Mesh Pad 431 SS 201 304 Air Purification Drift Eliminator Stainless Steel Mesh Pad 431 SS 201 304 Air Purification Drift Eliminator Stainless Steel Mesh Pad 431

Large Image :  SS 201 304 Air Purification Drift Eliminator Stainless Steel Mesh Pad 431

Product Details:
Place of Origin: Anping,Hebei,China
Brand Name: YH
Certification: ISO 9001:2015
Model Number: YH-431
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden Packed or as request
Delivery Time: 3 days after payment
Payment Terms: T/T
Supply Ability: 40000 Cubic Meters per month
Detailed Product Description
Material: Metal, 316L, Stainless Steel, Monel, Copper Weave Style: Single Braid,Multi-strand Braid
Application: Chemical Industry, Gas Liquid Separation Place Of Origin: Hebei Province
Feature: Heat Resistant,Corrosion Resistance MOQ: 5 Sets
High Light:

stainless steel mesh pad

,

mesh pad mist eliminator

SS Oil Water Wire Mesh Demister Pad Foam Remover Air Purification Eliminator





Demister Pad Description



 Wire mesh mist eliminator also known as wire mesh demister, is a kind of vapor liquid separating device.It is made up of many corrugated gas   liquid filter net,a grid and a fixed distance rod .It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation   tower.It can ensure the mass transfer efficiency,reduce the loss of valuable materials after operation of compressor, commonly setted in the top of   device.It is widely used in gas-liquid separation in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building,     construction, aviation, shipping and environment protection.
 Size and structure can be customized according to customer's drawings.



Demister Pad Specification



(1) standard type

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α (m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 150 Flat Wire Round Wire 0.981
0.1*0.4 0.23 475 320



(2) High Penetration

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 98 Flat Wire Round Wire 0.9875
0.1*0.4 0.23 313 217



(3) High Efficiency

Wire Diameter

dw(mm)

Width Tolerance

(mm)

Density

ρ(kg/m3)

Surface Area

α(m2/m3)

Void Fraction

ε

Flat Wire Round Wire ±20 182 Flat Wire Round Wire 0.977
0.1*0.28 0.19 626 484



Feature of demister pad (mist eliminator)

  • They prevent emission of waste contaminants such as sulphur compounds, salt water, sand, hydrocarbons, etc. into protected interior spaces or out into the atmosphere.
  • Designs are customised to the specifications of the fluids being processed. They remove 99.9% of liquid content in gas.
  • When gas is passed through the demister, existing liquid particles in the gas hit the demister threads, build up due to molecular attraction, increase in size until they detach due to gravity and flow toward the drain.
  • Wide range of work conditions in separation of liquid contaminants (including solids and associated gases in the flow of gas being processed: very fine sand, hydrocarbons, etc).
  • High efficiency through various configurations and equipment with various stages.
  • Flexible design conditions: Minimal pressure loss allowing for high gas speeds.
  • Integrated purge or drainage systems.

The Advantages of Demister pad



>High removal efficiency
>Negligible pressure drop, less than 25mm of water gauge
>No maintenance or service required
>No corrosion or temperature limitations
>Easily installed in existing vessels
>No limitation on size or shape.



The Packaging of Demister Pad



1.Product are packed by Air Bubble Film. suitable for long distance transportation by sea,It can reduce abrasion when transport.

2.As customers' requirements

Delivery time

The product will be sent to you within 1-7 days after payment if in stock.

It will be take 7-15 workdays to produce if out of stock



Demister Pad Appilcations



*Elimination of toxic air pollutants

*Reduction of solvent losses in absorbers ,scrubbers and distillation equipment

*Optimization in kettles ,reboilers and crystallizers

*Elimination of entrainment

*Used in liquid -liquid systems

*Used as gaskets in cable, automobile and computer industry

*Gas-liquid ,solid-liquid separation

*Desalination plants

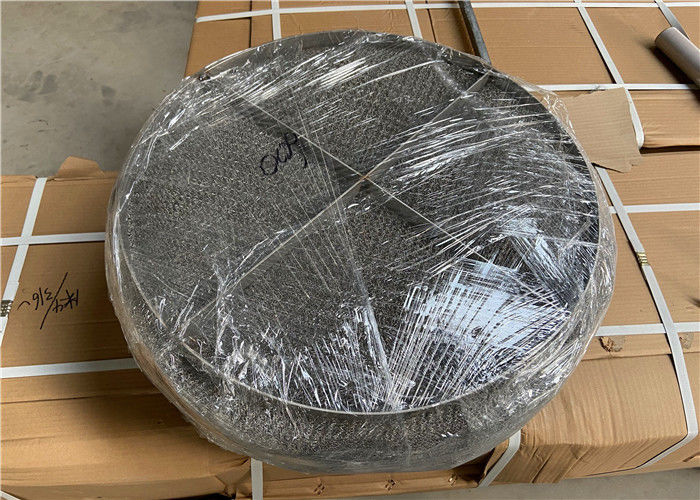

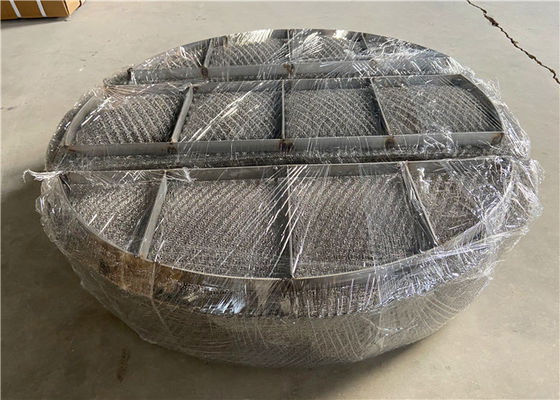

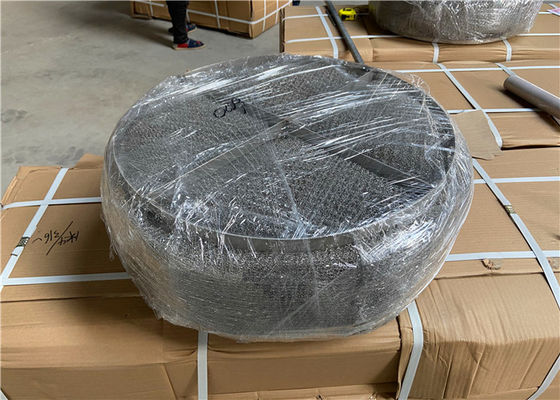

Demister Pad Show



SS 201 304 Air Purification Drift Eliminator Stainless Steel Mesh Pad 431 0
