2*1*1m Retaining Wall 60*80mm Gabion Wire Mesh

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

2*1*1m Retaining Wall 60*80mm Gabion Wire Mesh

2*1*1m Retaining Wall 60*80mm Gabion Wire Mesh
2*1*1m Retaining Wall 60*80mm Gabion Wire Mesh 2*1*1m Retaining Wall 60*80mm Gabion Wire Mesh 2*1*1m Retaining Wall 60*80mm Gabion Wire Mesh

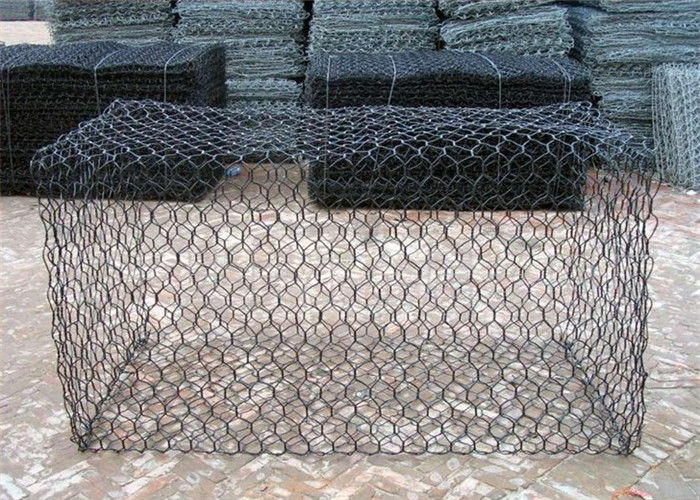

Large Image :  2*1*1m Retaining Wall 60*80mm Gabion Wire Mesh

Product Details:
Place of Origin: HEBEI, CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G01
Payment & Shipping Terms:
Minimum Order Quantity: 50m2
Price: Negotiable
Packaging Details: According to customers'requirement,for gabion basket/gabion wire mesh for protecting dam
Supply Ability: 5000m2 per month
Detailed Product Description
Material: Low-Carbon Iron Wire, Galvanized Iron Wire Feature: Anti-corrosion,Easy Installation
Surface Treatment: Electric Galvanized/Hot-dipped Galvanized/PVC-coated Aperture: 6*8,8*10,10*12cm,etc
Usage: Construction Wire Mesh/Retaining Wall Hole Shape: Hexagonal
High Light:

60*80mm Gabion Wire Mesh

,

2*1*1m Gabion Wire Mesh

Galvanized Gabion Box For Kenya Market 2*1*1m 60*80mm






Gabion Box Description



Welded gabion baskets

The welded gabion baskets is made from electric welded wire mesh panels connected by spirals/helicals assembled with spacers/stiffeners.

Welded Mesh size: 100 x 100 mm (other available mesh size: 50 x 50mm,100 x 50mm and 75mm x 75mm)

Material wire: Heavy duty galvanized wire diameter from 3.0mm to 6.0mm (galfan coated wire available).



Normal Gabions size:

2.0 x 1.0 x 1.0m, 2.0 x 1.0 x 0.5m, 2.0 x 0.5 x 0.5m, 2.0 x 0.3 x 0.3m,

1.0 x 1.0 x 1.0m, 1.0 x 1.0 x 0.5m, 1.0 x 0.5 x 0.5m, 0.5 x 0.5 x 0.5m,

1.2 x 0.6 x 0.6m, etc. Required size available.

Packing: Each set is flat packed and then on pallet.



Hexagonal Gabion Box

A gabion (from Italian gabbione meaning "big cage"; from Italian gabbia and Latin cavea meaning "cage") is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, and military applications.

Material: Hot-dipped galvanized wire, Zn-5%-Al wire, Hot-dipped galvanized wire with PVC coated, Zn-10%-Al wire.
Weaving method: it is assembled with cover pieces; side pieces and bottom pieces are produced separately and then assembled to a basket with lacing wire or hog rings. It is common practice to choose a thicker wire to make selvedge wire, which can increase the strength of the basket.



Gabion Box Specification



Specification
Opening(mm) Wire diameter metal wire(mm) Wire diameter PVC coated/inner/outside(mm) Strands
60 X 80 f 2.0/2.8 f 2.0/3.0-2.5/3.5 3
80 X 100 f 2.0/3.2 f 2.0/3.2-2.8/3.8 3
80 X 120 f 2.0/3.2 f 2.0/3.2-2.8/3.8 3
100 X 120 f 2.0/3.4 f 2.0/3.0-2.8/3.8 3
100 X 150 f 2.0/3.4 f 2.0/3.0-2.8/3.8 3
120 X 150 f 2.0/4.0 f 2.0/3.0-3.0/4.0 3



Gabion Box Packing details



1) Outside with plastic film

2) In bundle

3) As per customer's special request



Gabion Box Shipping



Samples will be shipped by express service - DHL, EMS, UPS, TNT or Fedex.

1, By counier, like DHL, PUS, Fedex, dtc. Usual 5-7 days;

2, By air to the air port, usual 3-5 days arrives;

3, By sea to the sea port, usual 25-45 days.



Gabion Box Application



1. rock fall defending
2.preventing the water and oil lost
3.controlling and leading the river and flood
4. protect the bridge

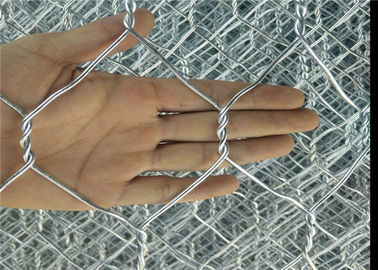

2*1*1m Retaining Wall 60*80mm Gabion Wire Mesh 0



Gabion Box Process

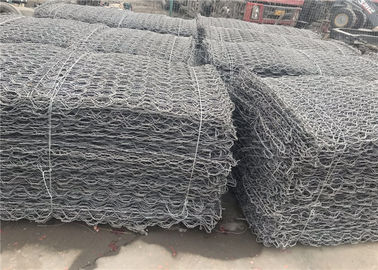

2*1*1m Retaining Wall 60*80mm Gabion Wire Mesh 1
