Hot Dipped Galvanized Rock Filled Stone Cage Gabion Wire Mesh

Hot Dipped Galvanized Rock Filled Stone Cage Gabion Wire Mesh
Hot Dipped Galvanized Rock Filled Stone Cage Gabion Wire Mesh Hot Dipped Galvanized Rock Filled Stone Cage Gabion Wire Mesh Hot Dipped Galvanized Rock Filled Stone Cage Gabion Wire Mesh

Large Image :  Hot Dipped Galvanized Rock Filled Stone Cage Gabion Wire Mesh

Product Details:
Place of Origin: HEBEI, CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G01
Payment & Shipping Terms:
Minimum Order Quantity: 50m2
Price: Negotiable
Packaging Details: According to customers'requirement,for gabion basket/gabion wire mesh for protecting dam
Supply Ability: 5000m2 per month
Detailed Product Description
Material: Galvanized Iron Wire Aperture: 6*8,8*10,10*12cm,etc
Wire Gauge: 2.0mm-5.0mm Tensile Strength: 35-55kg/m2
Function: Gabion Matresses,Retaining Wall Feature: Anti-corrosion, Easily Assembled
High Light:

Hot Dipped Galvanized Gabion Wire Mesh

,

Hot Dipped Galvanized Gabion Mesh

Hot Dipped Galvanized Rock Filled / Stone Cage / Gabion Baskets

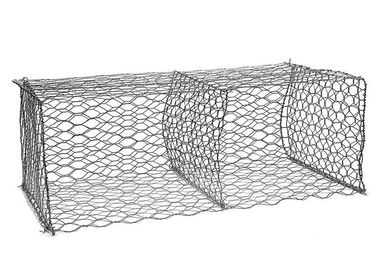

Gabion Basket Description



Gabion box also named gabion basket , heavy hexagonal mesh ,rock filled gabion cage,retaining wall for protection etc,made of galvanized wire,PVC coated wire.

1.material:low carbon iron wireQ195

2.wire gauge:2.0mm--5.0mm

3.hole size:60*80,80*100,100*120,120*150

4.mesh size:2*1*1m,3*1*1m,2*1*0.5m,3*1*0.3m or as customer requirement

5.surface treatment:electro galvanized,hot dipped galvanized

6.application:rock fall protection,gabion wall,gabion matresses,roadway protection.



Gabion Basket Advantages



corrosion prevention ,eletrostatic prevention ,age resistance ,corrosion-resistance ,compressive resistance ,sheaving resistance and improving the protective function in the highly polluted environment .This kind of mesh mainly used in river , sea and highly polluted area .



Gabion Basket Specification



Aperture (mm) Mesh wire (mm) Selevage wire (mm) Lacing wire(mm) Max width (m)
60x80 2.0-3.0mm 3.0-4.0mm 2.2mm 4m
80x100 2.0-3.0mm 3.0-4.0mm 2.2mm 4m
80x120 2.0-3.0mm 3.0-4.0mm 2.2mm 4m
100x120 2.0-3.0mm 3.0-4.0mm 2.2mm 4m
100x150 2.0-3.0mm 3.0-4.0mm 2.2mm 4m
120x150 2.0-3.0mm 3.0-4.0mm 2.2mm 4m



Length(m) Width(m) Heigh(m) Diaphragm Volum Tolerance
2.0 1.0 0.3 1 0.6

Length:+/-3%

Width:+/-5%

Heigh:+/-5%

3.0 1.0 0.3 2 0.9
4.0 1.0 0.3 3 1.2
2.0 1.0 0.5 1 1.0
3.0 1.0 0.5 2 1.5
4.0 1.0 0.5 3 2.0
1.0 1.0 1.0 0 1.0
1.5 1.0 1.0 0 1.5
2.0 1.0 1.0 1 2.0
3.0 1.0 1.0 2 3.0
4.0 1.0 1.0 3 4.0

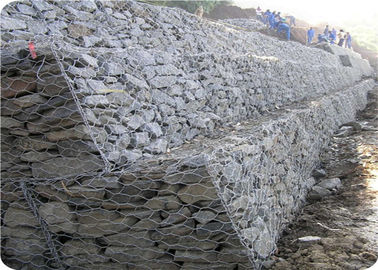

Gabion Basket Application

  • Retaining Walls
  • Temporary Bridge Abutments
  • Noise Barriers
  • Beach Reinforcement
  • River Bank Revetment
  • Landscaped Boundaries
  • Drainage Channels and Culverts
  • Railway Embankments
  • Safety Barriers

Hot Dipped Galvanized Rock Filled Stone Cage Gabion Wire Mesh 0
