Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh

Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh
Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh

Large Image :  Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh

Product Details:
Place of Origin: HEBEI, CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G01
Payment & Shipping Terms:
Minimum Order Quantity: 50m2
Price: Negotiable
Packaging Details: According to customers'requirement,for gabion basket/gabion wire mesh for protecting dam
Supply Ability: 5000m2 per month
Detailed Product Description
Material: Galvanized Iron Wire Aperture: 60*80,80*100,100*120mm
Wire Gauge: 2-3.5mm Surface Treatment: Hot Dip Galvanized
Hole Size: 50x50mm, 75x75mm, 50x100mm,100x100mm Certificate: ISO9001:2018
High Light:

pvc coated gabion baskets

,

stone filled wire mesh wall

Slope Protection PVC Coated Gabion Box Stone Cage Retaining Wall 60 x 80mm




PVC Coated Gabion Box Description



PVC Coated Gabion Box is on the surface of low carbon steel wire or wire wrapped in a LAYER of PVC protection, then woven into a variety of specifications of the stone cage net.PVC coating will greatly increase the service life, and the choice of different colors, so that it can be integrated with the surrounding natural environment.

They have a variety of applications such as retaining walls for commercial, industrial and road project, landscaping, erosion control.

PVC Coated Gabion Box Advantages



(1) Construction is simple,

(2) Can withstand a large range of deformation, but still does not collapse.

(3) Silt between the cage stones is conducive to plant production and integrates with the natural environment.

(4) Good permeability, prevent the damage caused by the static fluid, is conducive to the stability of the slope and shore.

(5) Saving transportation costs.Fold transport and assemble on site.

(6) Good flexibility: no structural joints, the overall structure has ductility.

(7) Corrosion resistance: PVC coating is not afraid of erosion.



PVC Coated Gabion Box Specification



* Material: Low carbon steel wire Q195

* Processing mode: twist, reverse twist, doubled sided twist

* Classification:

I. Electric galvanized hexagonal mesh;

II. Hot dipped galvanized hexagonal mesh;

III. PVC coated hexagonal mesh.



Material
low carbon steel wire, stainless steel wire
Surface Treatment
hot dipped galvanized, electro galvanized, PVC/PE coated or galfan coated.
Wire Diameter
1.5mm - 4mm or as required.
Aperture(mm)
60 × 80, 80 ×100, 80 ×120, 100 ×120, 100 ×150, 120 × 150mm
Gabion size
1x1x0.5m, 1x1x1m, 2x1x1m, 3x1x1m, 0.2x1mx1m, 0.3x1x2m
Tensile Strength
more than 380N per square meter.
Gabion Style
hexagonal gabion box, welded gabion box



PVC Coated Gabion Box Feature



1. Strong and rigid structure

2. Easily installation

3. Beauty apperance for landscope

4. Rust and corrosion resistant,has a long service life



PVC Coated Gabion Box Show

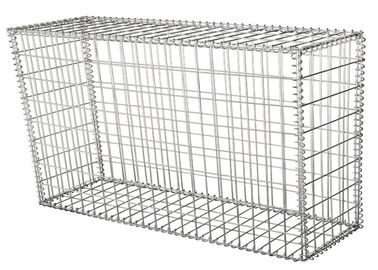

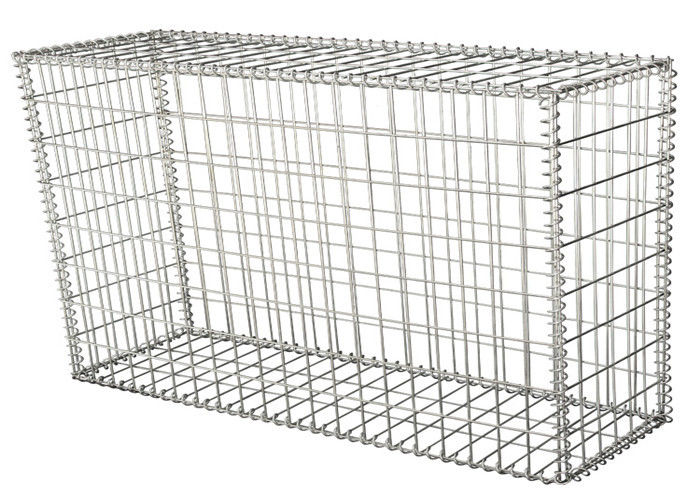

Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh 0

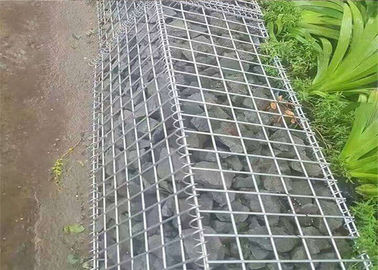

Stone Cage Retaining Wall 60 X 80mm Gabion Wire Mesh 1
