2.7mm Heavy Galvanized Gabion Wire Mesh Box 1mx1mx1m

2.7mm Heavy Galvanized Gabion Wire Mesh Box 1mx1mx1m
2.7mm Heavy Galvanized Gabion Wire Mesh Box 1mx1mx1m 2.7mm Heavy Galvanized Gabion Wire Mesh Box 1mx1mx1m 2.7mm Heavy Galvanized Gabion Wire Mesh Box 1mx1mx1m

Large Image :  2.7mm Heavy Galvanized Gabion Wire Mesh Box 1mx1mx1m

Product Details:
Place of Origin: HEBEI, CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G01
Payment & Shipping Terms:
Minimum Order Quantity: 50m2
Price: Negotiable
Packaging Details: According to customers'requirement,for gabion basket/gabion wire mesh for protecting dam
Supply Ability: 5000m2 per month
Detailed Product Description
Material: Low Carbon Steel Wire Surface Treatment: Hot Dip Galvanized/PVC Coated
Usage: Flood Control Retaining Wall Color: Sliver Or Dark Greeen
Product Name: Defensive Barriers /army Border Perimeter Gabion Zinc Coating: 40-300g/㎡
High Light:

retaining wall mesh cages

,

galvanised gabion box

Easy Installation Gabion Box Retaining Wall Rock Filled Gabion Baskets




Galvanized Gabion Box Description



Hexagonal Gabion Box is a metal wire woven Angle net (hexagonal) made of barbed wire, the use of metal wire diameter is according to the size of the hexagonal and different.If it is a hexagonal wire of galvanized layer, then use wire diameter of 0.3mm to 2.0mm, if it is a PVC coated wire woven hexagonal net, then use PVC(metal) wire diameter of 0.8mm to 2.6mm.Twist into a hexagon, the outer edge of the line can be made into a unilateral, bilateral, can move the edge silk.



Hexagonal Gabion Box is made of heavy hexagonal mesh cutting, folding and processing of wire mesh cage, generally by four pieces of heavy hexagonal mesh folding assembled into a cage, a large hexagonal mesh folding into a rectangular four, two small pieces of hexagonal mesh, the middle has a partition screen.



Hexagonal Gabion Box Introduction



1.material:low carbon iron wireQ195

2.wire gauge:2.0mm--5.0mm

3.hole size:60*80,80*100,100*120,120*150

4.mesh size:2*1*1m,3*1*1m,2*1*0.5m,3*1*0.3m or as customer requirement

5.surface treatment:electro galvanized,hot dipped galvanized

6.application:rock fall protection,gabion wall,gabion matresses,roadway protection.



Hexagonal Gabion Box Application



Hexagonal Gabion Box is used in water conservancy engineering retaining wall is used, gabion mesh retaining wall is made up of 0.5 meters to 1.0 meters of stone cage net cage piled into the retaining wall.Stone cage cage retaining wall is mainly used for steep slopes, the role is to control debris flow, prevent landslides, as well as road, railway roadbed protection and so on.The reason why the stone cage cage, because the stone cage cage has a unique ecological function.Sprinkle some soil on the surface of the protective body to make it green. Because the space between the rocks is full of space, the space contains the soil, which is conducive to the development of plant roots and creates a good ecological environment.Even without soil, over time, the Spaces between the rocks will become silent, allowing herbs to grow and create a natural habitat.After the production of stone cage net, in order to save volume, can be bundled compression packaging.



Hexagonal Gabion Box Feature



Gabion mesh or gabion box has some obvious features ,such as corrosion prevention ,eletrostatic prevention ,age resistance ,corrosion-resistance ,compressive resistance ,sheaving resistance and improving the protective function in the highly polluted environment .This kind of mesh mainly used in river , sea and highly polluted area .



Hexagonal Gabion Box Specification



Gabion cages
Opening(mm)

Wire diameter

metal wire(mm)

Wire diameter PVC coated/inner

/outside(mm)

Strands
60 x 80 f2.0/2.8 f2.0/3.0-f2.5/3.5 3
80 x 100 f2.0/3.2 f2.0/3.2-f2.8/3.8 3
80 x 120 f2.0/3.2 f2.0/3.2-f2.8/3.8 3
100 x 120 f2.0/3.4 f2.0/3.0-f2.8/3.8 3
100 x 150 f2.0/3.4 f2.0/3.0-f2.8/3.8 3
120 x 150 f2.0/4.0 f2.0/3.0-f3.4/3.4 3

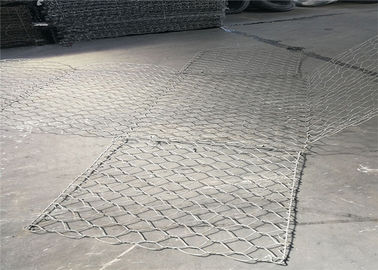

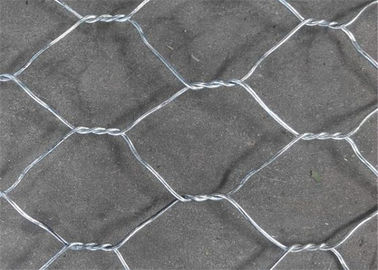

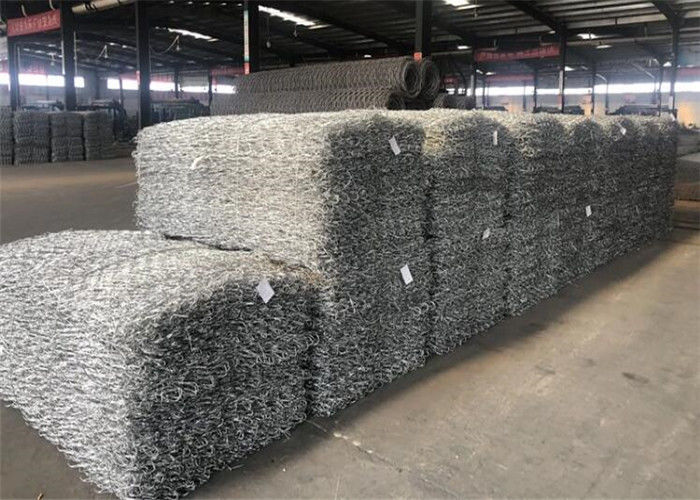

Hexagonal Gabion Box Product Show



2.7mm Heavy Galvanized Gabion Wire Mesh Box 1mx1mx1m 0





2.7mm Heavy Galvanized Gabion Wire Mesh Box 1mx1mx1m 1
