Hexagonal Gabion Retaining Wall Army Border Perimeter

Hexagonal Gabion Retaining Wall Army Border Perimeter Gabion Barrier


Gabion Box Description

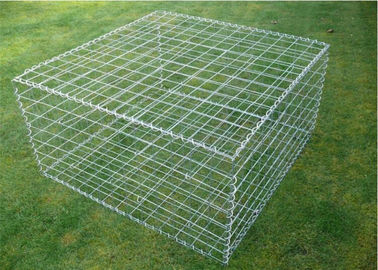

Welded gabion baskets

The welded gabion baskets is made from electric welded wire mesh panels connected by spirals/helicals assembled with spacers/stiffeners.

Welded Mesh size: 100 x 100 mm (other available mesh size: 50 x 50mm,100 x 50mm and 75mm x 75mm)

Material wire: Heavy duty galvanized wire diameter from 3.0mm to 6.0mm (galfan coated wire available).

Normal Gabions size:

2.0 x 1.0 x 1.0m, 2.0 x 1.0 x 0.5m, 2.0 x 0.5 x 0.5m, 2.0 x 0.3 x 0.3m,

1.0 x 1.0 x 1.0m, 1.0 x 1.0 x 0.5m, 1.0 x 0.5 x 0.5m, 0.5 x 0.5 x 0.5m,

1.2 x 0.6 x 0.6m, etc. Required size available.

Packing: Each set is flat packed and then on pallet.

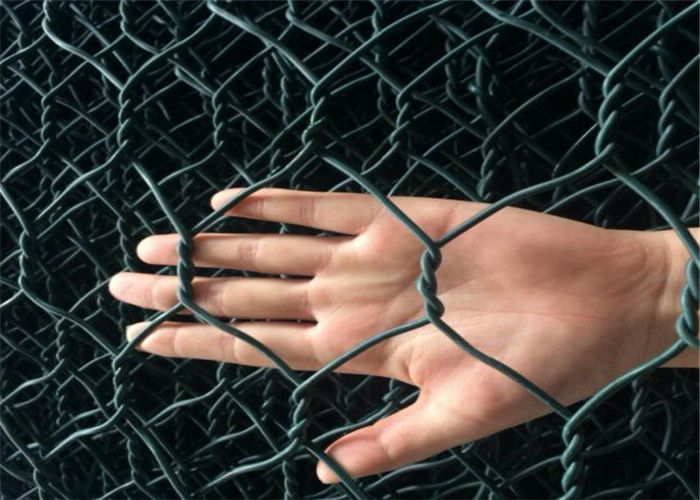

Hexagonal Gabion Box

A gabion (from Italian gabbione meaning "big cage"; from Italian gabbia and Latin cavea meaning "cage") is a cage, cylinder, or box filled with rocks, concrete, or sometimes sand and soil for use in civil engineering, road building, and military applications.

Material: Hot-dipped galvanized wire, Zn-5%-Al wire, Hot-dipped galvanized wire with PVC coated, Zn-10%-Al wire.
Weaving method: it is assembled with cover pieces; side pieces and bottom pieces are produced separately and then assembled to a basket with lacing wire or hog rings. It is common practice to choose a thicker wire to make selvedge wire, which can increase the strength of the basket.

Gabion Box Introduction

1.material:low carbon iron wireQ195

2.wire gauge:2.0mm--5.0mm

3.hole size:60*80,80*100,100*120,120*150

4.mesh size:2*1*1m,3*1*1m,2*1*0.5m,3*1*0.3m or as customer requirement

5.surface treatment:electro galvanized,hot dipped galvanized

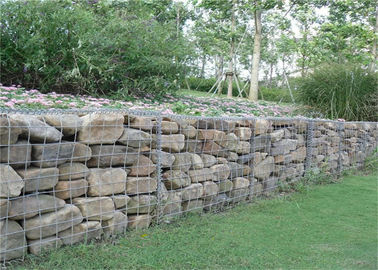

6.application:rock fall protection,gabion wall,gabion matresses,roadway protection.

Gabion Box Specification

Gabion Box Application

1.Control and guide of water or flood

2.Flood bank or guiding bank

3.Preventing of rock breaking

4.Water and soil protection

5.Bridge protection

6.Strengthening structure of soil

7.Protection engineering of seaside area

Gabion Box Advantages

1.Economic. Just fill the stone into the gabions and seal it.

2.Simple installation. No special technology needed.
3.Weather proof under natural destroy, corrosion resistant.
4.No collapse even under big scope of deforming.

5.Good permeation can prevent the damage by hydrostatic.

6.Less transport freight. It can be fold together for transport.

7.Sludge in the stones is good for plant growing.
