Double Twist River Stone Cage 60*80mm Gabion Basket Fence

Double Twist River Stone Cage 60*80mm Gabion Basket Fence
Double Twist River Stone Cage 60*80mm Gabion Basket Fence Double Twist River Stone Cage 60*80mm Gabion Basket Fence Double Twist River Stone Cage 60*80mm Gabion Basket Fence

Large Image :  Double Twist River Stone Cage 60*80mm Gabion Basket Fence

Product Details:
Place of Origin: HEBEI, CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G01
Payment & Shipping Terms:
Minimum Order Quantity: 50m2
Price: Negotiable
Packaging Details: According to customers'requirement,for gabion basket/gabion wire mesh for protecting dam
Supply Ability: 5000m2 per month
Detailed Product Description
Material: Low Carbon Steel Wire Surface Treatment: Galvanized/PVC Coated
Mesh Hole: 80 X 100mm,60 X 80mm,100x120mm Wire Gauge: 2.0-4.0mm
Size: 1*2*1mm 1*1*1mm,etc Usage: Construction Wire Mesh,Protecting Mesh, Cages
High Light:

4.0mm gabion basket fence

,

1*2*1mm gabion basket fence

Double Twist Gabion Basket River Stone Cage For Constrcution Water Used

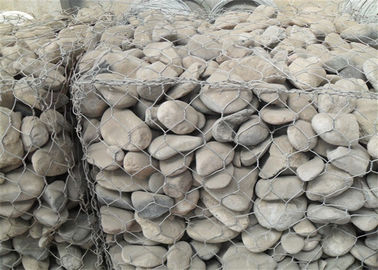

River Stone Cage Description

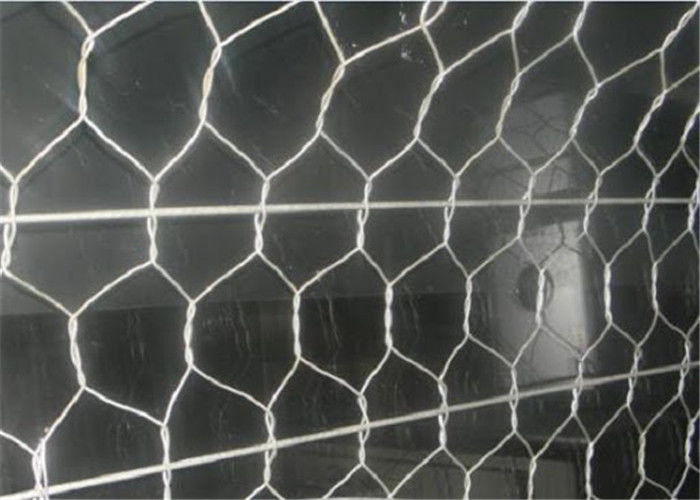

River stone cage is also called gabion mesh, green grid, gabion retaining wall, Reynolds pad, reinforced gabion, gabion cage, etc., mesh ecological green grid is widely used in recent years in traffic, water conservancy, municipal, gardens, soil and water conservation and other engineering projects in a new material structure.Ecological grid is the corrosion resistance of high strength low carbon galvanized steel wire or 5% ~ 10% thin alloy coated steel wire (or homogeneous coated polymer steel wire), by the machine will be twisted twisted, hexagonal mesh mesh, the length of the double hinge part should not be less than 5cm, in order not to destroy the protective coating of steel wire.See industry standard YB/T4221-2010 for details.Gabion mesh can be assembled into boxes according to engineering design requirements, and loaded into blocks and stones and other filling materials connected into one, used as embankment, roadbed protection and other engineering new technology.

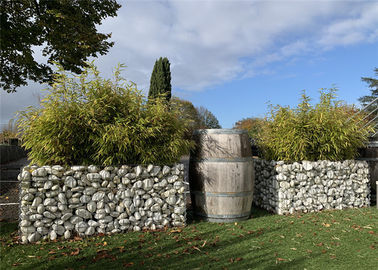

River Stone Cage Application



Stone cage net is mainly used to guide the river water, rivers tend to follow the inherent flow channel, channel may be a natural bend channel, in the event of the flood, water quantity is huge, fast-flowing, water will be under the inertia, tending to straight to flow, will violently impact the original channel and dam, may be diverted the river, that will cause great disaster.In order to reduce the rapid water erosion of the embankment, the inside of the embankment or the edge of the channel, stone cage cage or stone cage mat, the turbulent river directly impact the stone cage cage or stone cage mat, so as to protect the embankment or channel.The river in the bend of the river, due to the stone cage cage or stone cage mat, the river will turn, along the inherent river flow.This will guide the river to safety.Stone cage net is also applied to spillway dam and diversion dam, to guide or restrain the flood.



River Stone Cage Features



1.Economic. Just fill the stone into the gabions and seal it.
2.Simple installation. No special technology needed.
3.Weather proof under natural destroy, corrosion resistant.
4.No collapse even under big scope of deforming.
5.Sludge in the stones is good for plant growing,which help to form a integrity with the natural environment.
6.Good permeation can prevent the damage by hydrostatic.
7.Less transport freight. It can be folded together for transport and further installation.



River Stone Cage Packing



The gabion box is folded and packaged with belt and then wrap it up with plastic paper or waterproof paper,50-100 sets of gabion box in a flat bundles,or packed on pallets,or as customs requirements.



River Stone Cage Specification



Galvanized gabion box and gabion basket
Mesh Size (mm) Mesh Wire Diameter (mm) Corner Wire Diameter (mm) Binding Wire Diameter (mm) Max. Width(m)
60*80 20.-2.8 3.0-4.0 2.0-2.2 4
80*100 2.0-3.6 3.0-4.0 2.0-2.2 4
80*120 2.0-3.6 3.0-4.0 2.0-2.2 4
100*120 2.0-3.8 3.0-4.0 2.0-2.2 4
100*140 2.0-3.8 3.0-4.0 2.0-2.2 4
120*150 2.0-3.8 3.0-4.0 2.0-2.2 4
160*200 2.0-4.0 3.0-4.0 2.0-2.2 4
200*220 2.0-4.0 3.0-4.0 2.0-2.2 4
