Anping yuanhai wire mesh products Co., Ltd
Home ProductsGabion Wire Mesh

Low Carbon Wire 2.4mm 80x100mm Gabion Wire Mesh For River Bank

China Anping yuanhai wire mesh products Co., Ltd certification
China Anping yuanhai wire mesh products Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we are very satisfied with your expanded metel sheet, we will have nice cooperation in the near future.

—— Roger Hopkins

Good company with nice service and high quality and high reputation. The stainless steel wire mesh is good quality,one of our reliable supplier , goods are delivered in time and nice package.

—— Mr.mosharaf hossain

Received ur Gabion Mesh,Thanks for your good after-sale service. Excellent training and technology support helps me a lot.

—— Tshediso Sedie

I'm Online Chat Now

Low Carbon Wire 2.4mm 80x100mm Gabion Wire Mesh For River Bank

Low Carbon Wire 2.4mm 80x100mm Gabion Wire Mesh For River Bank
Low Carbon Wire 2.4mm 80x100mm Gabion Wire Mesh For River Bank Low Carbon Wire 2.4mm 80x100mm Gabion Wire Mesh For River Bank

Large Image :  Low Carbon Wire 2.4mm 80x100mm Gabion Wire Mesh For River Bank

Product Details:
Place of Origin: HEBEI, CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G01
Payment & Shipping Terms:
Minimum Order Quantity: 50m2
Price: Negotiable
Packaging Details: According to customers'requirement,for gabion basket/gabion wire mesh for protecting dam
Supply Ability: 5000m2 per month
Detailed Product Description
Material: Galvanized Iron Wire Wire Gauge: 2.0mm, 2.2mm, 2.7mm, 3.0mm
Surface Treatment: Hot Dip Galvanized/Electro Galvanized/PVC Coated Hole Size: 60x80mm,80x100mm
Zinc Coating: 50-300g/㎡ Gabion Box Size: 2*1*1m ,1*1*0.5m,2*1*0.5m Or As Your Requriment
Feature: Anti-corrosion, Easily Assembled Usage: Protect Sea Wall, Hillside, Bridge, Flood Control Reta
High Light:

80x100mm Gabion Wire Mesh

,

2.4mm Gabion Wire Mesh

,

Low Carbon Wire gabion mesh

Low Carbon Wire 2.4mm 80x100mm Gabion Wire Mesh For River Bank

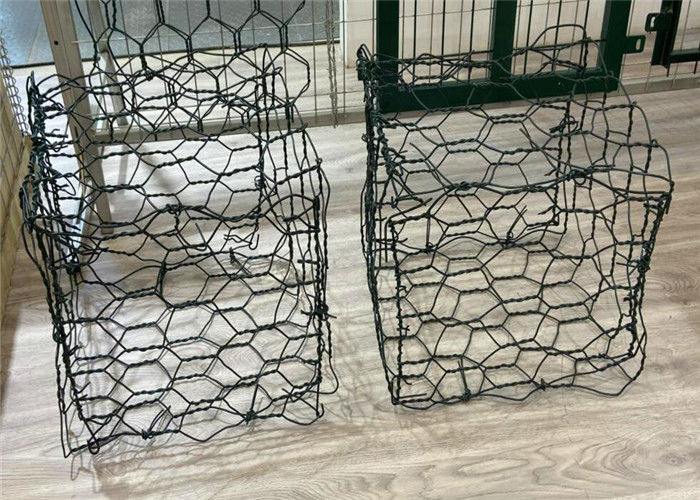

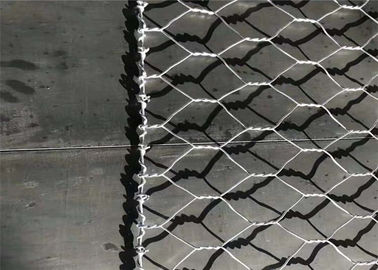

Galvanized Gabion Box Description



Gabion Box are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal nettings. For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm. For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm. The wire of the outside frame edge is one of wire gauge thicker than the wire used for hexagonal wire netting.



Galvanized Gabion Box Surface Treatment



1.Galvanized steel wire :low carbon steel wire

2.Zinc-5% aluminum-mixed metal alloy steel wire ,a new-type material

3.Galvanized steel wire ,PVC or PE coating



Galvanized Gabion Box Specification



Mesh wire diameter 3mm,4mm,5mm,6mm etc
Spring wire diameter 3mm,4mm,5mm,6mm etc
Mesh size 50*50mm,50*100mm,37.5*100mm,60*60mm,65*65mm,70*70mm,76*76mm,80*80mm or as your request.
Panel Size 0.61*0.61m,1*1m,1.2*1.2m,1.5*1.5m,1.5*2m,2*2m, 2.21*2.13m or as your request.
Finish

Electro galvanized after welded

Hot dipped galvanized welded

Galfan coated after welded

Geotextile Heavy duty non-woven polypropylene
Packing Wrapped with shrink film or packed in pallet



















































Galvanized Gabion Box Feature



(1) Construction is simple,

(2) Can withstand a large range of deformation, but still does not collapse.

(3) Silt between the cage stones is conducive to plant production and integrates with the natural environment.

(4) Good permeability, prevent the damage caused by the static fluid, is conducive to the stability of the slope and shore.

(5) Saving transportation costs.Fold transport and assemble on site.

(6) Good flexibility: no structural joints, the overall structure has ductility.

(7) Corrosion resistance: PVC coating is not afraid of erosion.



Galvanized Gabion Box Application



1.Controlling and leading the river and flood.

2. Flood discharge and lead flow.

3. Rock fall defending.

4. Preventing the water and soil lost.

5. Protecting the bridge.

6. Reinforce fabric.

7. Seashore recovery project.

8. Seaport project.



Low Carbon Wire 2.4mm 80x100mm Gabion Wire Mesh For River Bank 0Low Carbon Wire 2.4mm 80x100mm Gabion Wire Mesh For River Bank 1
