2mx1mx1m Pvc Coated Seawall Protection Gabion Wire Mesh

2mx1mx1m Pvc Coated Seawall Protection Gabion Wire Mesh
2mx1mx1m Pvc Coated Seawall Protection Gabion Wire Mesh 2mx1mx1m Pvc Coated Seawall Protection Gabion Wire Mesh

Large Image :  2mx1mx1m Pvc Coated Seawall Protection Gabion Wire Mesh

Product Details:
Place of Origin: HEBEI, CHINA
Brand Name: YUANHAI
Certification: ISO9001
Model Number: YH-G01
Payment & Shipping Terms:
Minimum Order Quantity: 100m2
Price: Negotiable
Packaging Details: According to customers'requirement,for gabion basket/gabion wire mesh for protecting dam
Supply Ability: 5000m2 per month
Detailed Product Description
Material: Galvanized Iron Wire Wire Gauge: 2.0mm, 2.2mm, 2.7mm, 3.0mm
Surface Treatment: Hot Dip Galvanized/Electro Galvanized/PVC Coated Hole Size: 60x80mm,80x100mm
Zinc Coating: 50-300g/㎡ Gabion Box Size: 2*1*1m ,1*1*0.5m,2*1*0.5m Or As Your Requriment
Feature: Anti-corrosion, Easily Assembled Usage: Protect Sea Wall, Hillside, Bridge, Flood Control Reta
High Light:

seawall protection gabion wire mesh

,

pvc coated gabion wire mesh

,

2.0mm Gabion Wire Mesh

2mx1mx1m PVC Coated Gabion Basket Seawall Protection Stone Gage




Galvanized Gabion Box Description



Gabion Box/Gabion Basket/Gabion Mesh/Gabion Cage/Gabion Wire Mesh Box/Stone Basket/Gabion Mattress/


Gabion baskets are made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, the mesh shape is hexagonal style. The gabion baskets are used widely in slope protection, foundation pit supporting, mountain rock holding, river and dams scour protection.

Seawall Protection Woven Flexible Foldable 3x1x1 Gabion Box



Galvanized Gabion Box Surface Treatment



1.Galvanized steel wire :low carbon steel wire

2.Zinc-5% aluminum-mixed metal alloy steel wire ,a new-type material

3.Galvanized steel wire ,PVC or PE coating



Galvanized Gabion Box Specification



Material
Galvanized wire

Surface treatment
Hot dipped galvanized (Zinc Coated)
Galfan coated: 95% Zinc + 5% Aluminum, 90%Zinc +10% Aluminum
Zinc(galvanized) + PVC Coated (Gray or Green)
Gabion Basket/Gabion Box/Gabion Mesh/Gabion Cage Specification
Wire diameter
2.0-4.0mm
Mesh opening
80 x 100mm
90 x 110mm
100 x 120mm
60 x 80mm etc.
Dimension
1x0.5x0.5m, 1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x0.5m, 3x2x0.3m, 3x2x0.17m, 3x1x1m, 4x1x0.5m, 4x1x1m, 4x2x0.3m, 5x1x1m, 5x1x0.5m,
6x2x0.3m or as request





Galvanized Gabion Box Feature



(1) Construction is simple,

(2) Can withstand a large range of deformation, but still does not collapse.

(3) Silt between the cage stones is conducive to plant production and integrates with the natural environment.

(4) Good permeability, prevent the damage caused by the static fluid, is conducive to the stability of the slope and shore.

(5) Saving transportation costs.Fold transport and assemble on site.

(6) Good flexibility: no structural joints, the overall structure has ductility.

(7) Corrosion resistance: PVC coating is not afraid of erosion.



Galvanized Gabion Box Application



1.Controlling and leading the river and flood.

2. Flood discharge and lead flow.

3. Rock fall defending.

4. Preventing the water and soil lost.

5. Protecting the bridge.

6. Great Perviousness, pliability and anti-corrosion.
7. Resist the scour
8. Holistic capability
9. Easy to Construct
10. Economical and environmental protection

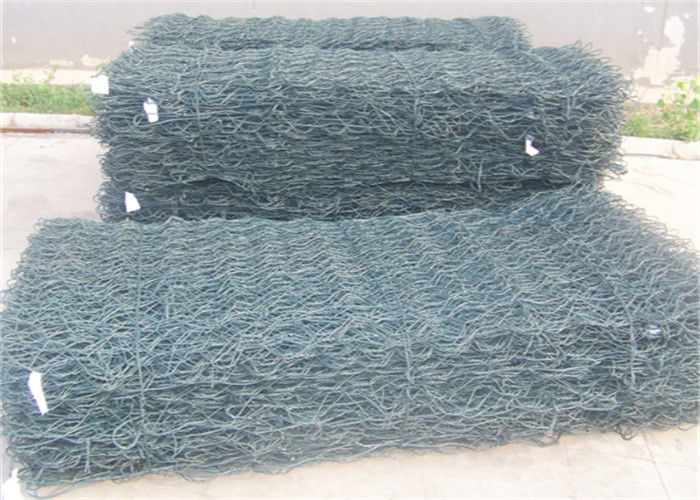

2mx1mx1m Pvc Coated Seawall Protection Gabion Wire Mesh 0

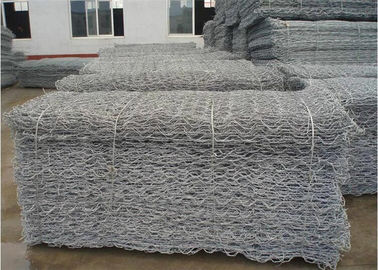

2mx1mx1m Pvc Coated Seawall Protection Gabion Wire Mesh 1

2mx1mx1m Pvc Coated Seawall Protection Gabion Wire Mesh 2
