Stainless Steel 304 Wire Mesh Foam Remove Knitted Filter Mesh Demister Pad
Description of Demister Pad
Wire mesh demister is a kind of vapor-liquid separating device, It is used to remove the steam, entrained droplets in the processing equipment when the gas go through demister wire pad, with big surface, high demisting efficiency, and long working life, good resistance.
* Wire Mesh Demister Material : Stainless Steel 304L, 316L, Monel, Nickle, ect.
* Wire Diameter: 0.08--0.50mm, But 0.2mm-0.25mm are the most common wire diameter specifications.
* Width: 40mm, 80mm, 150mm, 200mm, 300mm, 400, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, etc. Less than 1000mm width are the most common width and are easy to make. Also available upon customers' request.
Product Feature of Demister Pad
1. Simple structure, lightweight
2. High porosity, less pressure drops.
3. Big surfaces area, high demisting efficiency.
4. Easy installation, operation and maintenance.
5. Long service life.
Product Specification of Demister Pad
(1) standard type
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α (m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
150 |
Flat Wire |
Round Wire |
0.981 |
| 0.1*0.4 |
0.23 |
475 |
320 |
(2) High Penetration
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α(m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
98 |
Flat Wire |
Round Wire |
0.9875 |
| 0.1*0.4 |
0.23 |
313 |
217 |
(3) High Efficiency
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α(m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
182 |
Flat Wire |
Round Wire |
0.977 |
| 0.1*0.28 |
0.19 |
626 |
484 |
As for other specifications, we can supply the products according to customer's requirements.
Application of Demister Pad
1) Boilers
2) Evaporators, Gas-liquid, Solid-liquid separation
3) Vaccum towers, Absorbers
4) Lube towers
5) Elimination of entrainment
6) Elimination of toxic air pollutants
7) Used as gaskets in cable, automobile and computer industry
8) Desalination plants

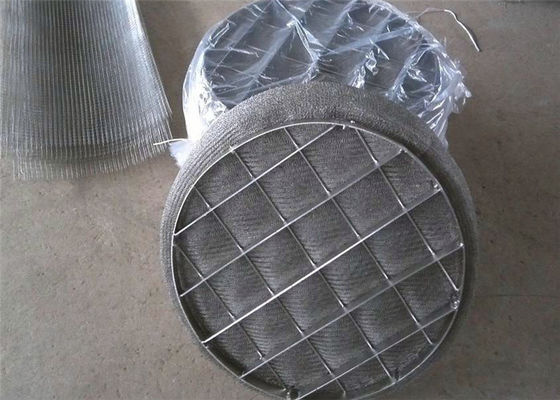

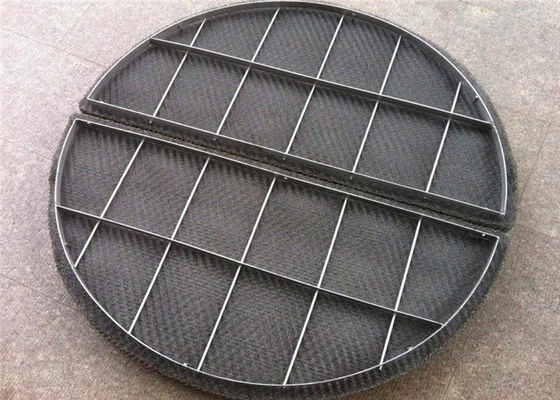

Product Show of Demister Pad
