SS 304L Wire Mesh Demister Pad Oil / Air Purification Mist Eliminator
Description of Demister Pad
Wire mesh demister: (also known as wire mesh defogger, bubble trap) is a highly efficient gas-liquid separation device widely used in chemical, petroleum, sulfuric acid, pharmaceutical, light industry, metallurgy, machinery, construction, aviation. In the industries such as maritime transport and environmental protection, in the production equipments such as ethylene, synthetic ammonia and chemical fiber imported from abroad, the use of wire mesh defoaming as a gas-liquid separation device is also used. It is mainly used to separate droplets having a diameter of more than 3 μm to 5 μm.
Product Feature of Demister Pad
>High removal efficiency
>Negligible pressure drop, less than 25mm of water gauge
>No maintenance or service required
>No corrosion or temperature limitations
>Easily installed in existing vessels
>No limitation on size or shape.
Product Specification of Demister Pad
(1) standard type
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α (m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
150 |
Flat Wire |
Round Wire |
0.981 |
| 0.1*0.4 |
0.23 |
475 |
320 |
(2) High Penetration
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α(m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
98 |
Flat Wire |
Round Wire |
0.9875 |
| 0.1*0.4 |
0.23 |
313 |
217 |
(3) High Efficiency
|
Wire Diameter
dw(mm)
|
Width Tolerance
(mm)
|
Density
ρ(kg/m3)
|
Surface Area
α(m2/m3)
|
Void Fraction
ε
|
| Flat Wire |
Round Wire |
±20 |
182 |
Flat Wire |
Round Wire |
0.977 |
| 0.1*0.28 |
0.19 |
626 |
484 |
As for other specifications, we can supply the products according to customer's requirements.
Application of Demister Pad
*Elimination of toxic air pollutants
*Reduction of solvent losses in absorbers ,scrubbers and distillation equipment
*Optimization in kettles ,reboilers and crystallizers
*Elimination of entrainment
*Used in liquid -liquid systems
*Used as gaskets in cable, automobile and computer industry
*Gas-liquid ,solid-liquid separation
*Desalination plants

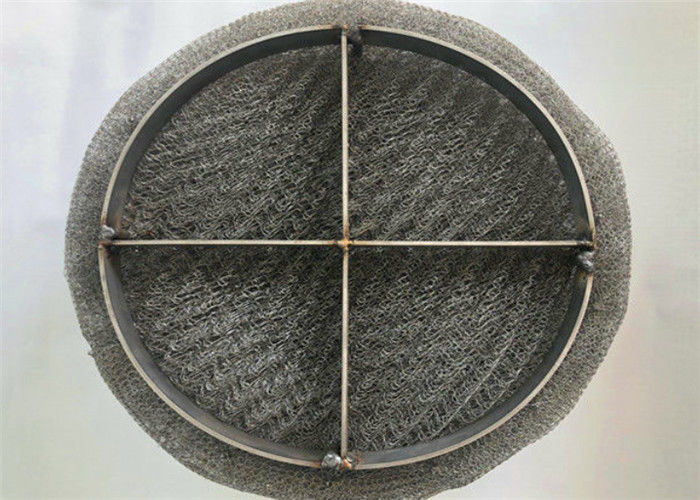

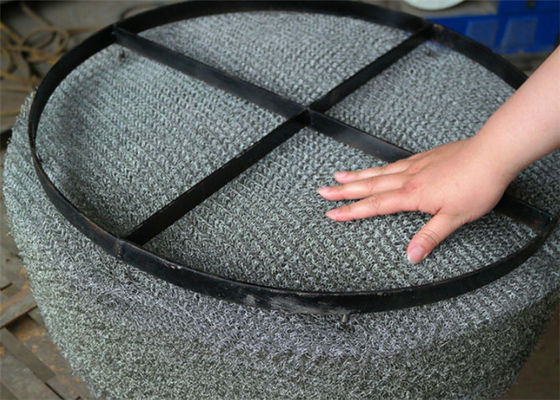

Product Show of Demister Pad
