Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel/Plastic | Length: | 200mm-1500mm, As Your Request |
|---|---|---|---|
| Width: | 100mm-4000mm, As Your Request | Product Name: | Mist Eliminator/Demister Pad |
| Usage: | Air & Liquid Filtration | Feature: | High Removal Efficiency |
| Type: | Filter Elements | MOQ: | 1 Set |
| High Light: | gas liquid foam demister pad,wire mesh demister pad ss304,ISO wire mesh demister pad |
||
Stainless Steel 304 Knitted Wire Mesh Demister Pad For Gas Liquid Foam
Description of Demister Pad
Place of Origin:Hebei, China
Brand Name:
Usage:Liquid Filter Air & Liquid Filtration, Mass transfer
Type:Filter Elements
Material:Metal
Hole Shape:Round
Filter Rating:99.9%
Thickness:150-200mm, or on request
Length:as request and drawing
Width:as request and drawing
MOQ:1 Set
Response Time:Within 24 hours
Shape:Customers' Request
Weave style:Knitted Weave
Mesh count:2-635 Mesh
Color:nature
Material type:
Sample:allowed
Mesh type:knitted mesh
Product Feature of Demister Pad
>High removal efficiency
>Negligible pressure drop, less than 25mm of water gauge
>No maintenance or service required
>No corrosion or temperature limitations
>Easily installed in existing vessels
>No limitation on size or shape.
Product Specification of Demister Pad
(1) standard type
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3) |
Surface Area α (m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 150 | Flat Wire | Round Wire | 0.981 |
| 0.1*0.4 | 0.23 | 475 | 320 | |||
(2) High Penetration
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3) |
Surface Area α(m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 98 | Flat Wire | Round Wire | 0.9875 |
| 0.1*0.4 | 0.23 | 313 | 217 | |||
(3) High Efficiency
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3) |
Surface Area α(m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 182 | Flat Wire | Round Wire | 0.977 |
| 0.1*0.28 | 0.19 | 626 | 484 | |||
Application of Demister Pad
*Elimination of toxic air pollutants
*Reduction of solvent losses in absorbers ,scrubbers and distillation equipment
*Optimization in kettles ,reboilers and crystallizers
*Elimination of entrainment
*Used in liquid -liquid systems
*Used as gaskets in cable, automobile and computer industry
*Gas-liquid ,solid-liquid separation
*Desalination plants
Packaging of Demister Pad
1.Product are packed by Air Bubble Film. suitable for long distance transportation by sea,It can reduce abrasion when transport.
2.As customers' requirements

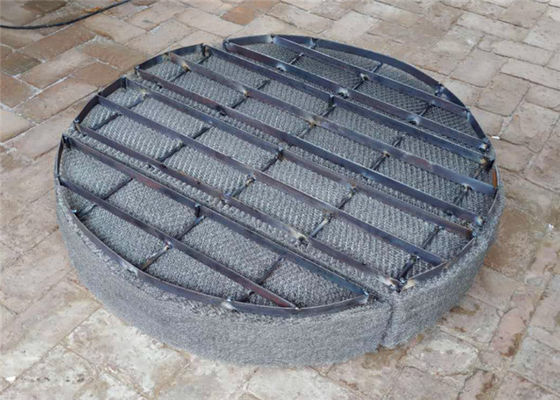

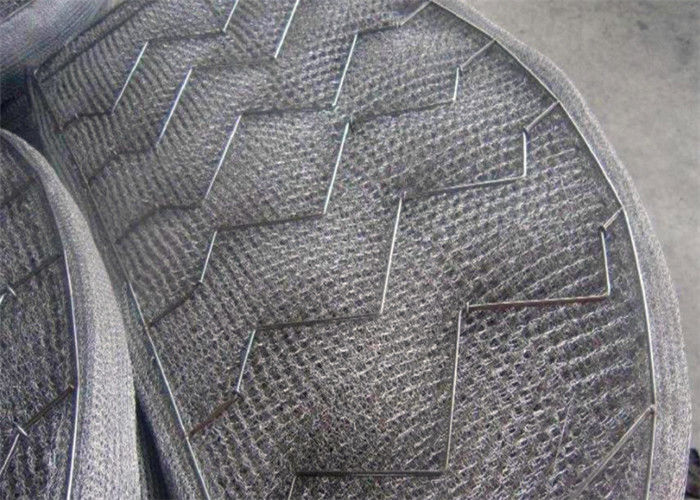

Product Show of Demister Pad
