Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel/Plastic | Length: | 200mm-1500mm, As Your Request |
|---|---|---|---|
| Width: | 100mm-4000mm, As Your Request | Product Name: | Mist Eliminator/Demister Pad |
| Usage: | Air & Liquid Filtration | Feature: | High Removal Efficiency |
| Brand Name: | Yuanhai | Size: | Customized |
| High Light: | tower internal wire mesh demister,stainless steel wire mesh demister,stainless 304 mesh demister |
||
Tower Internal Stainless Steel 304 Wire Mesh Demister Pad Mist Eliminator
Description of Demister Pad
Demister Pad can be made of various materials, depending on its use, and its major materials are as per the below:
1. SUS304, 304L, SUS316, 316L, MONEL,Titanium,Nickel,etc.
2. P.P (POLY PROPYLENE), P.E (POLY ETHYLENE),
3.Fixing Methods & GRID
The demister should be horizontally fixed and supported. At the bottom or both the top and the bottom, a support grid which is welded with Flat Bar 3tX25mm, 6Ø or 8mm wire.
Brand Name: Yuanhai
Place of Origin:Hebei, China
Usage:Liquid Filter Air & Liquid Filtration, Mass transfer
Type:Filter Elements
Material:Metal
Hole Shape:Round
Filter Rating:99.9%
Thickness:150-200mm, or on request
Length:as request and drawing
Width:as request and drawing
MOQ:1 Set
Response Time:Within 24 hours
Shape:Customers' Request
Weave style:Knitted Weave
Mesh count:2-635 Mesh
Sample:For Free
Mesh type:knitted mesh
Product Specification of Demister Pad
(1) standard type
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3) |
Surface Area α (m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 150 | Flat Wire | Round Wire | 0.981 |
| 0.1*0.4 | 0.23 | 475 | 320 | |||
(2) High Penetration
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3) |
Surface Area α(m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 98 | Flat Wire | Round Wire | 0.9875 |
| 0.1*0.4 | 0.23 | 313 | 217 | |||
(3) High Efficiency
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3) |
Surface Area α(m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 182 | Flat Wire | Round Wire | 0.977 |
| 0.1*0.28 | 0.19 | 626 | 484 | |||
Product Feature of Demister Pad
» Simple structure.
» Lightweight and easy to transport.
» High porosity, less pressure drops.
» Large surface area and high separating efficiency.
» Easy to install, operate and maintain.
» Durable and long service life.
» Corrosion and rust resistance.
Application of Demister Pad
*Elimination of toxic air pollutants
*Reduction of solvent losses in absorbers ,scrubbers and distillation equipment
*Optimization in kettles ,reboilers and crystallizers
*Elimination of entrainment
*Used in liquid -liquid systems
*Used as gaskets in cable, automobile and computer industry
*Gas-liquid ,solid-liquid separation
*Desalination plants
Packaging of Demister Pad
1.Product are packed by Air Bubble Film. suitable for long distance transportation by sea,It can reduce abrasion when transport.
2.As customers' requirements

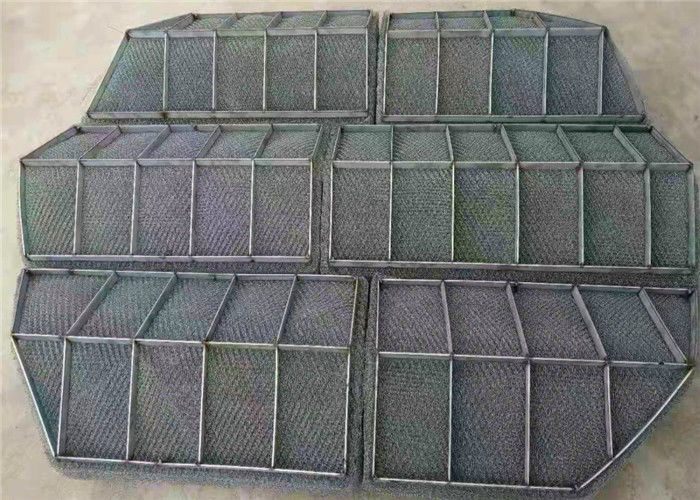

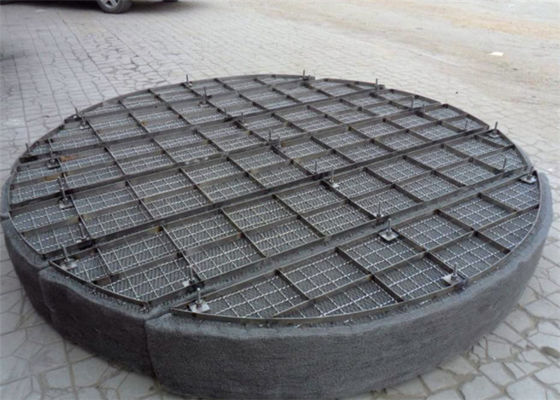

Product Show of Demister Pad
